Deger MLD Control - EC-6: Changing Configuration

01/10/2021 ASSEMBLY INSTRUCTIONS MLD Control EC-6 with CCB III Page 10

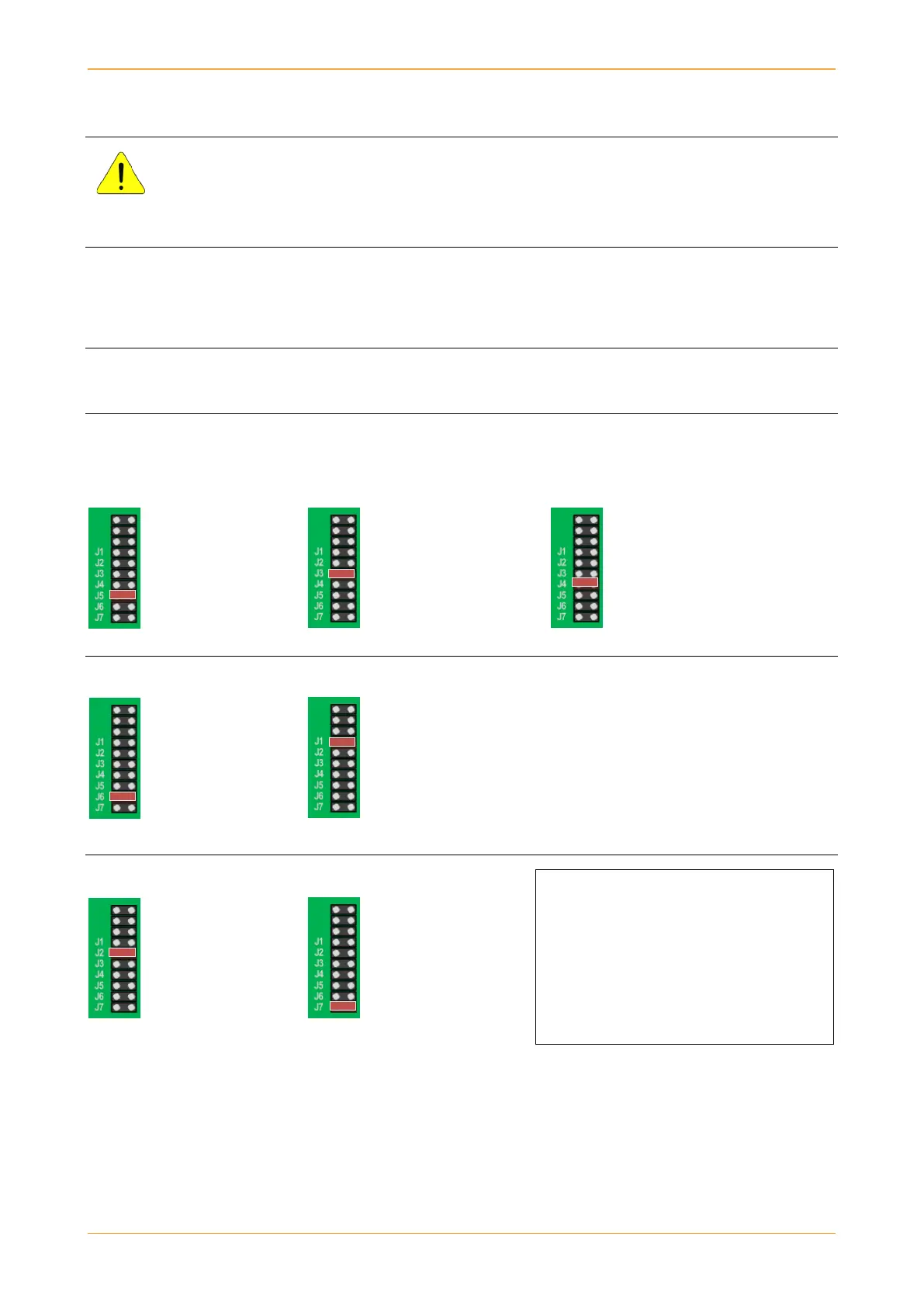

2.4 EC-6: Changing configuration
DANGER!
Only trained and qualified personnel may make changes to the configuration by moving the
jumpers. The configuration may be changed by moving the jumpers only when no voltage is
present.
ATTENTION!
Some countries require there to be a broken wire detection function. We strongly recommend
using the broken wire detection function in all installed systems and checking it regularly for
proper function.
ATTENTION!
Changing the default settings will void any warranty claims.
Reverse direction Reverse direction Reverse direction
OFF: Southern hemisphere ON: Northern hemisphere ON:
J3: Must be open J3: Night function ON J3: Must be open
J4: Must be open J4: Must be open J4: Night function ON
J5: Night function OFF J5: Must be open J5: Must be open
Reverse polarity OFF: Reverse polarity ON:
J1: Must be open J1: Reverse polarity ON
J6: Reverse polarity OFF J6: Must be open
SAFE POS function OFF: SAFE POS function ON:
J2: SAFE POS function OFF J2: Must be open
J7: Must be open J7: SAFE POS function ON
Legend:
J1 connected: Reverse polarity ON
J2 connected: SAFE POS function OFF
J3 connected: Night function for southern
hemisphere ON
J4 connected: Night function for northern
hemisphere ON
J5 connected: Night function OFF
J6 connected: Reverse polarity OFF
J7 connected: SAFE POS function ON
