01/10/2021 ASSEMBLY INSTRUCTIONS MLD Control EC-6 with CCB III Page 16
4.1.2 Port Description:
In this section more information on the wind monitor hardware will be explained.

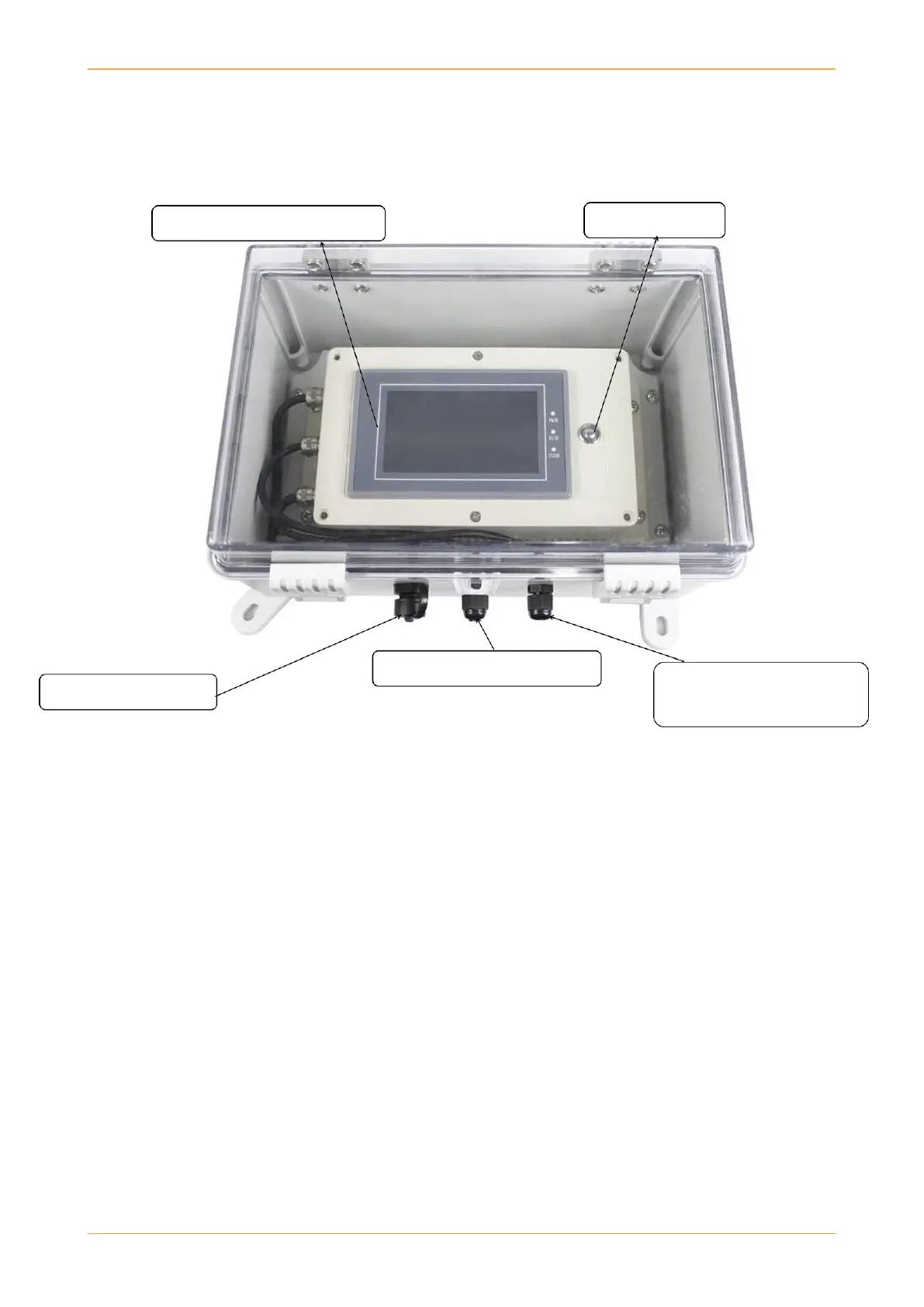

As can be seen above, we have 3 points of connections in DEGER wind monitor:
Sensor Connection: The anemometer connector should be connected to the sensor connection
port. The anemometer comes with 20m cable. It is advised to install the anemometer within 20m
range. If range is more than 20m, then the customer needs to be very careful regarding extension of
cable.
Relay Output: The relay output connection already comes with a 1.5m cable. The customer can
extend it easily as only 2 wires needs to be connected to CCB III terminals 22 and +. The Red wire
will be connected to + terminal and Green wire to 22 terminal of CCB III.
Input: The input port also comes with a 10m cable. The user can extend the cable if required. User
can provide AC/DC power supply. Please refer to specifications when providing AC/DC power
supply.
4.3 inch wind speed display
Power switch
Relay Output: NO & NC
Sensor connection
Input: 220VAC 50/60HZ
Output: DC12V----2.0A
