01/10/2021 ASSEMBLY INSTRUCTIONS MLD Control EC-6 with CCB III Page 23

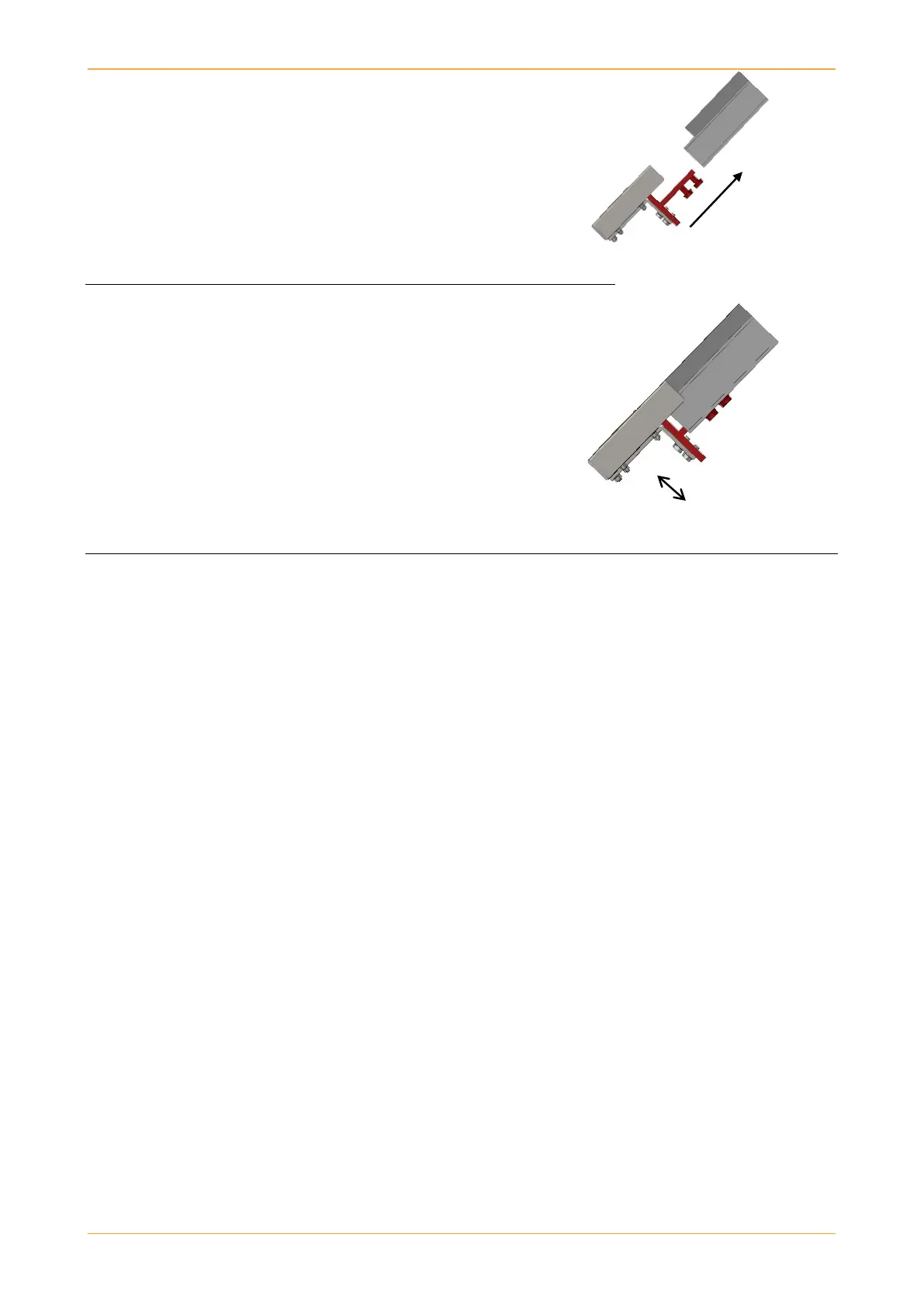

2. Loosen bolts M10x20 and slide the snow sensor into
the aluminum profile from underneath until it is flush
against the solar module.
3. Position the snow sensor so that it is flush with the upper
edge of the module surface.
To do so, loosen the two bolts, M8x20, on the angle holder
and place the snow sensor at the height of the modules.
The snow sensor housing should not stick out above
the module surface.
5.3 Connection
The snow sensor is equipped with a 5 m connection cable. The cable has to be extended depending on
installation place of the CCB and is connected as described in chapter 6.
