01/10/2021 ASSEMBLY INSTRUCTIONS MLD Control EC-6 with CCB III Page 11

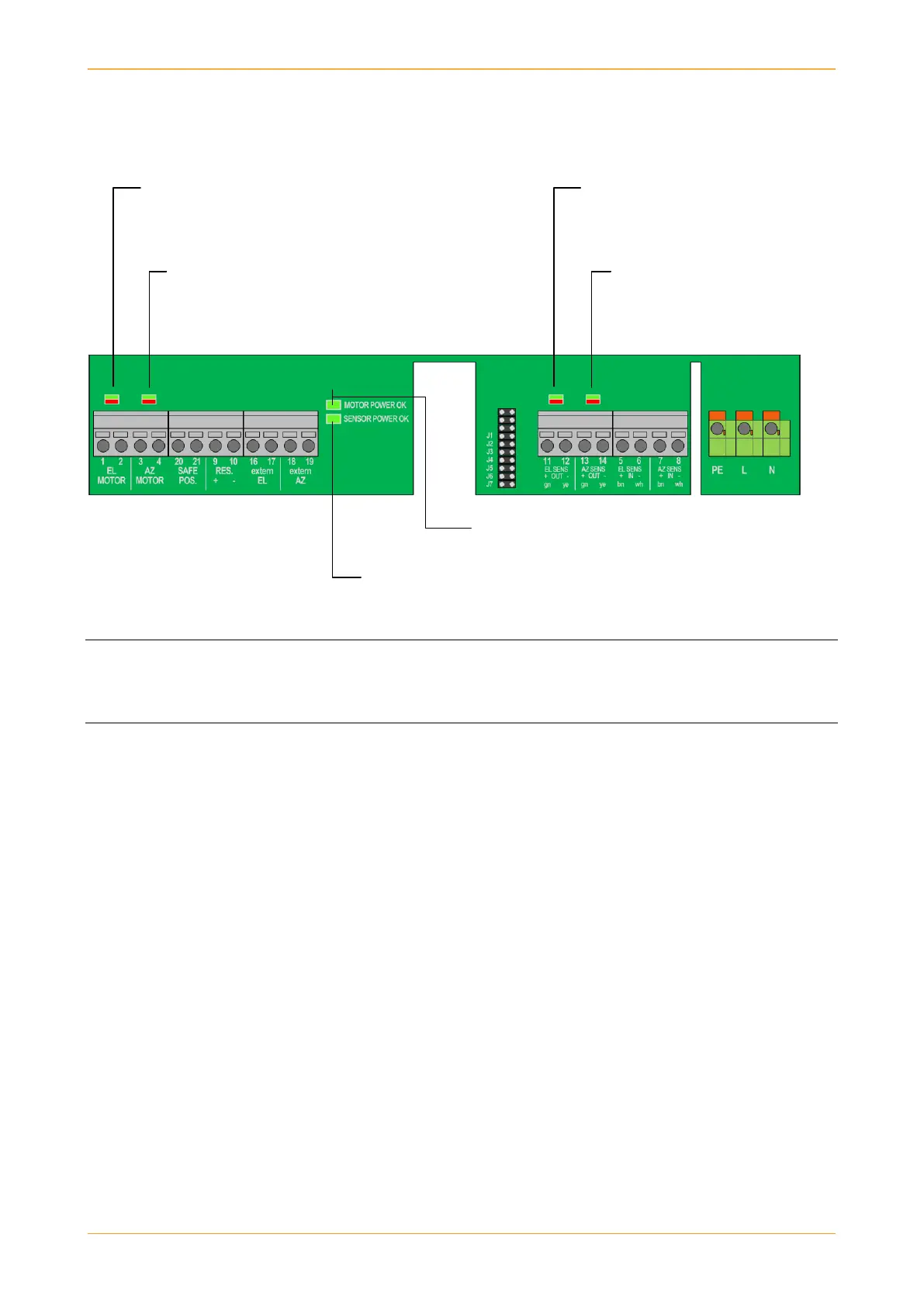

2.5 EC-6: LED display
EL motor active EL sensor active
Green LED Moving into inclined position Green LED Moving into inclined position
Red LED Moving into table position Red LED Moving into table position
LED off Motor is off LED off No signal from sensor
AZ motor active AZ sensor active
Green LED Moving to face west Green LED Moving to face west
Red LED Moving to face east Red LED Moving to face east
LED off motor is off LED off No signal from sensor
LED for motor voltage: Motor power OK
LED on DC 24 V motor voltage OK
LED for sensor voltage: Sensor power OK
LED on DC 24 V sensor voltage OK
ATTENTION!
If a motor is rotating in the opposite direction of that which is displayed by the LED lamps, switch
the connection cables for the motor from pin 1-2 to 3-4 or vice versa.
