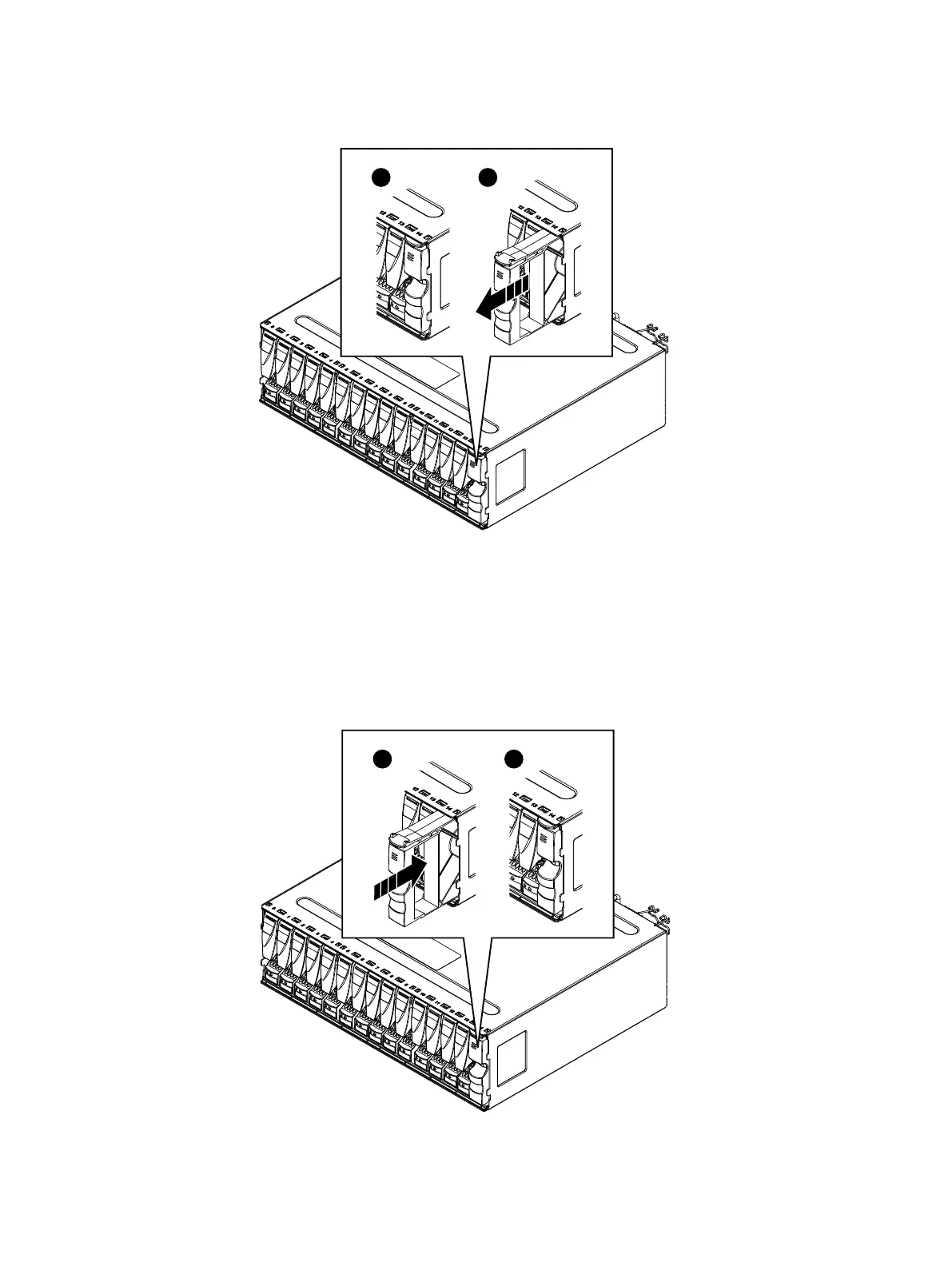

Figure 40
Removing a disk filler module
1
2
CL5283
Installing a disk filler
Procedure
1.
Hold the disk filler with you thumb in the cutout on the front of the filler and your finger on
the top of the filler.
2.
Push the disk filler module all the way into the slot.
Figure 41
Installing a disk filler module
2
1
CL5284
Removing and replacing FRUs
Dell EMC ES40 Expansion Shelf Guide Field Replacement Unit Guide
49
48
50
Table of Contents
Default Chapter
3
Table of Contents
3
Figures
5
Tables
7
Preface
9
Revision History
11
Document Revision History
11
Removing and Replacing Frus
13
Common Procedures
14
Avoiding Electrostatic Discharge (ESD) Damage
14
Emergency Procedures (Without an Electrostatic Discharge Kit)
14
Hardware Acclimation Times
15
Removing, Installing, or Storing Replaceable Units
16
Unpacking a Part
16
Standard Touch Point Colors
17
Power Cooling Module Replacement
17
Identify the Failed Power Supply Unit
17
Before You Begin
18
Power Supply/Cooling Module Status Leds
18
Removing a Power Cooling Module
19
Power Cooling Module Fault LED
19
Removing the AC Power Cord
19
Installing Power Cooling Module
20
Removing the DC Power Cord
20
Removing a Power Cooling Module
20
Verify the Power Supplies
21
Installing a Power Cooling Module
21
Plugging in and Securing the Power Cord
21
Complete the Procedure
22
Controller Replacement
22
Identify the Failed Controller
22
Status Leds
22
Removing an LCC
23
Rear Panel Overview
23
LCC Fault LED
23
Removing an LCC Cable
24
Installing a Replacement Controller
25
Removing an LCC
25
Installing a Replacement Controller
26
Installing the Controller
26
Connecting the Controller Cable
26
Installing the Controller
27
Connecting the Controller Cable
27
Verify the Controller
28
Complete the Procedure
29
Disk Drive Replacement
29
Identify the Failed Drive
29
Status Lights
29
Opening the Console
30
Unlocking and Removing the Front Bezel
31
Opening the Console
31
Releasing the Front Bezel
31
Removing a Faulted Disk Drive
32
Removing the Front Bezel
32
Fault LED on the Disk Drive Carrier
32
Removing a Disk Filler Module
33
Removing a Disk
33
Installing a New or Replacement Disk
34
Installing a Disk
34
Verify the Operation of the New Disk Drive
35
Installing and Locking the Front Bezel
35
Closing the Console
36
Chassis Replacement
36
Shut down and Disconnect the System
36
Installing the Front Bezel
36
Disconnecting a Shelf from the Back-End Bus
37
Disconnecting Power Cords
37
Unplugging a SAS Cable
37
Opening the Console
38
Unplugging the AC Power Cord
38
Unlocking and Removing the Front Bezel
39
Opening the Console
39
Releasing the Front Bezel
39
Removing a Shelf from the Cabinet
40
Removing the Front Bezel
40
Installing an Empty Shelf on the Rails
41
Removing the Screws that Secure the Enclosure to the Front of the Cabinet
41
Sliding the Enclosure out of the Cabinet
41
Sliding the Enclosure Onto the Rails
42
Rail Tabs Inserted into the Enclosure Notches
42
Transferring Components from the Faulted DAE to the Replacement DAE
43
Securing Enclosure to the Front of the Cabinet
43
Removing a Power/Cooling Module (AC Module Shown)
44
Installing a Power/Cooling Module (AC Module Shown)
44
Removing the Controller
45
Installing the Controller
46
Removing a Disk
47
Installing a Disk
48
Removing a Disk Filler Module
49
Installing a Disk Filler Module
49
Connecting Power to the Replacement Enclosure
50
Verifying Shelf Status
50
Plugging in and Securing an AC Power Cord
50
Connecting the Back-End Bus to the Shelf
51
Installing and Locking the Front Bezel
51
Enclosure Status Leds
51
Enclosure Fault LED
51
Closing the Console
52
Installing the Front Bezel
52
Verify the Chassis Replacement
53
Bezel Replacement
53
Unlocking and Removing the Front Bezel
53
Installing and Locking the Front Bezel
54
Releasing the Front Bezel
54
Removing the Front Bezel
54
Rail Replacement
55
Rail Kit Overview
55
Installing the Front Bezel
55
Shut down and Disconnect the System
56
Disconnecting a Shelf from the Back-End Bus
56
Unplugging a SAS Cable
56
Disconnecting Power Cords
57
Opening the Console
57
Unplugging the AC Power Cord
57
Unlocking and Removing the Front Bezel
58
Opening the Console
58
Releasing the Front Bezel
58
Removing a Shelf from the Cabinet
59
Removing the Front Bezel
59
Removing the Screws that Secure the Enclosure to the Front of the Cabinet
60
Sliding the Enclosure out of the Cabinet
60
Removing the Rails
61
Installing the Rails in the Cabinet
61
Removing Rails
61
Holes for Alignment Pins
61
Adjusting for Various Rack Types
62
Installing the Rails Using the Adapter Hardware
62
Installing the Rails
62
Installing the Shelf on the Rails
64
Attaching the Rail to the Rack
64
Sliding the Enclosure Onto the Rails
65
Rail Tabs Securing the Rear of the Enclosure
65
Complete the Procedure
66
Securing the Front of the Enclosure
66
