About this task
Refer to Figure 45 on page 52 while performing the procedure that follows.
Procedure
1. If present, remove the protective plastic strip from the front of the bezel.
2. Align the bezel with the enclosure.
3. Gently push the bezel into place until it latches.
4. Secure the bezel by turning the key in the lock.

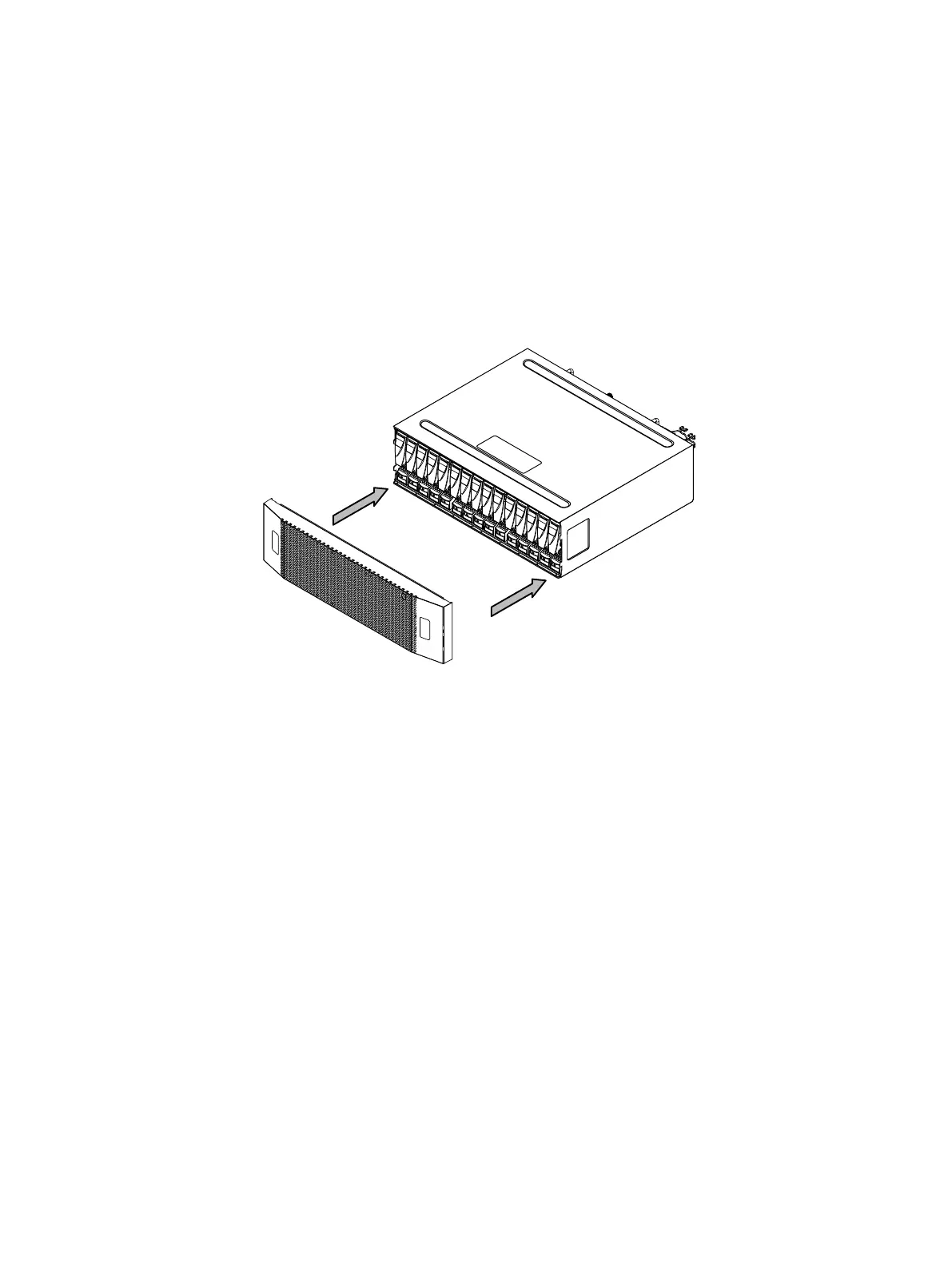

Figure 45 Installing the front bezel
Closing the console
About this task
If you opened the console for access to the enclosure with the part you added or replaced, close
the console using the procedure that follows.
Procedure
1. Grasp the free side of the console, and swing the console to the right to close it
2. Gently push on the console until it is closed.
Removing and replacing FRUs
52 Dell EMC ES40 Expansion Shelf Guide Field Replacement Unit Guide
