Disconnecting power cords
About this task
Unplug the power cord from each power/cooling module in the enclosure.

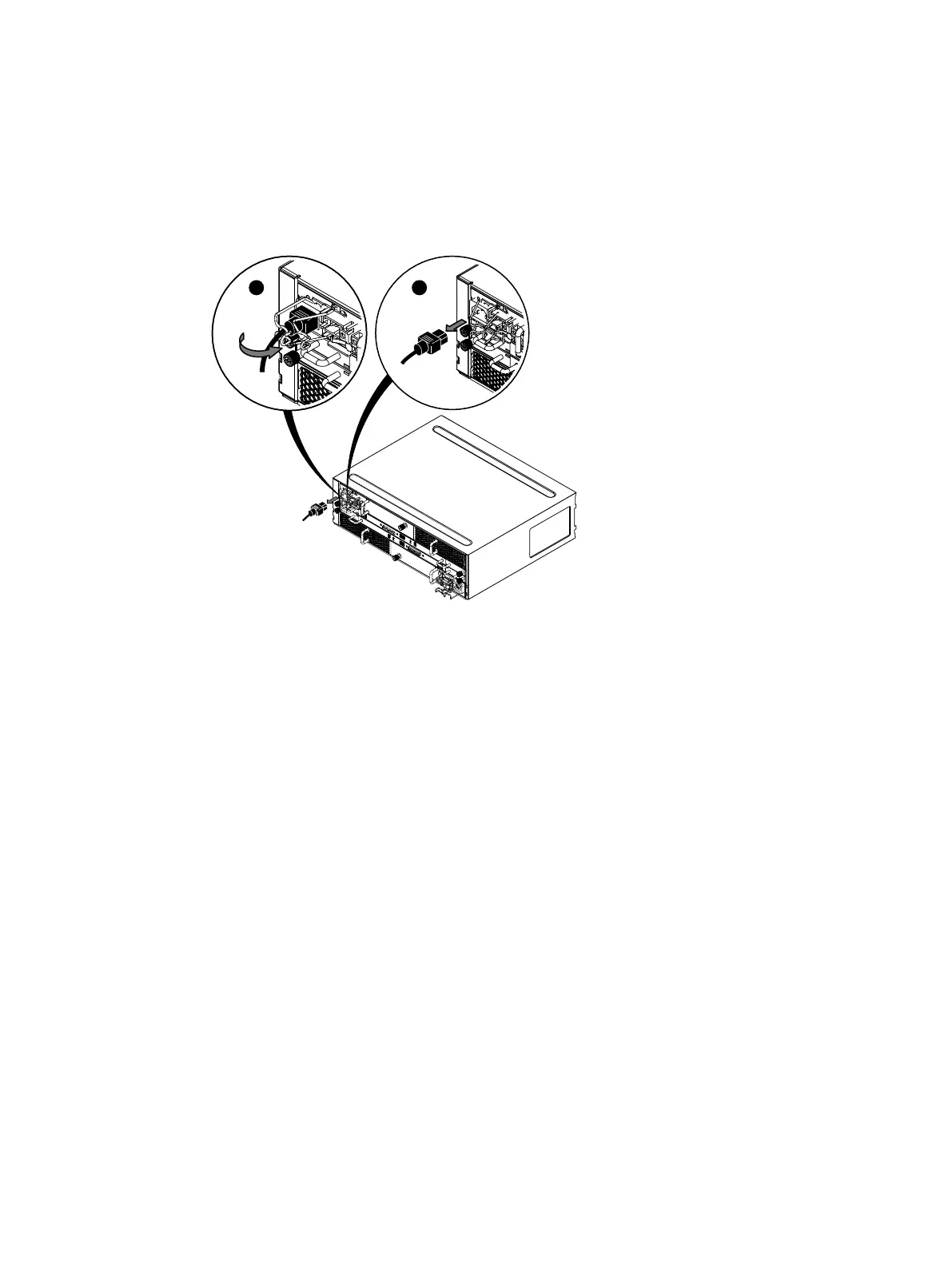

Figure 50 Unplugging the AC power cord
Opening the console
About this task
The console is a protruding plastic banner on the front of the cabinet with a stripe of blue or green
light and the product badge.
If the console is covering the front of the shelf to which you need access, open the console using
the steps that follow. Refer to Figure 51 on page 58.
Procedure
1.
Grasp the right side of the console.
2. Pull the console to swing it open.
Removing and replacing FRUs
Dell EMC ES40 Expansion Shelf Guide Field Replacement Unit Guide 57
