Dell EMC PowerEdge T440 Service Manual

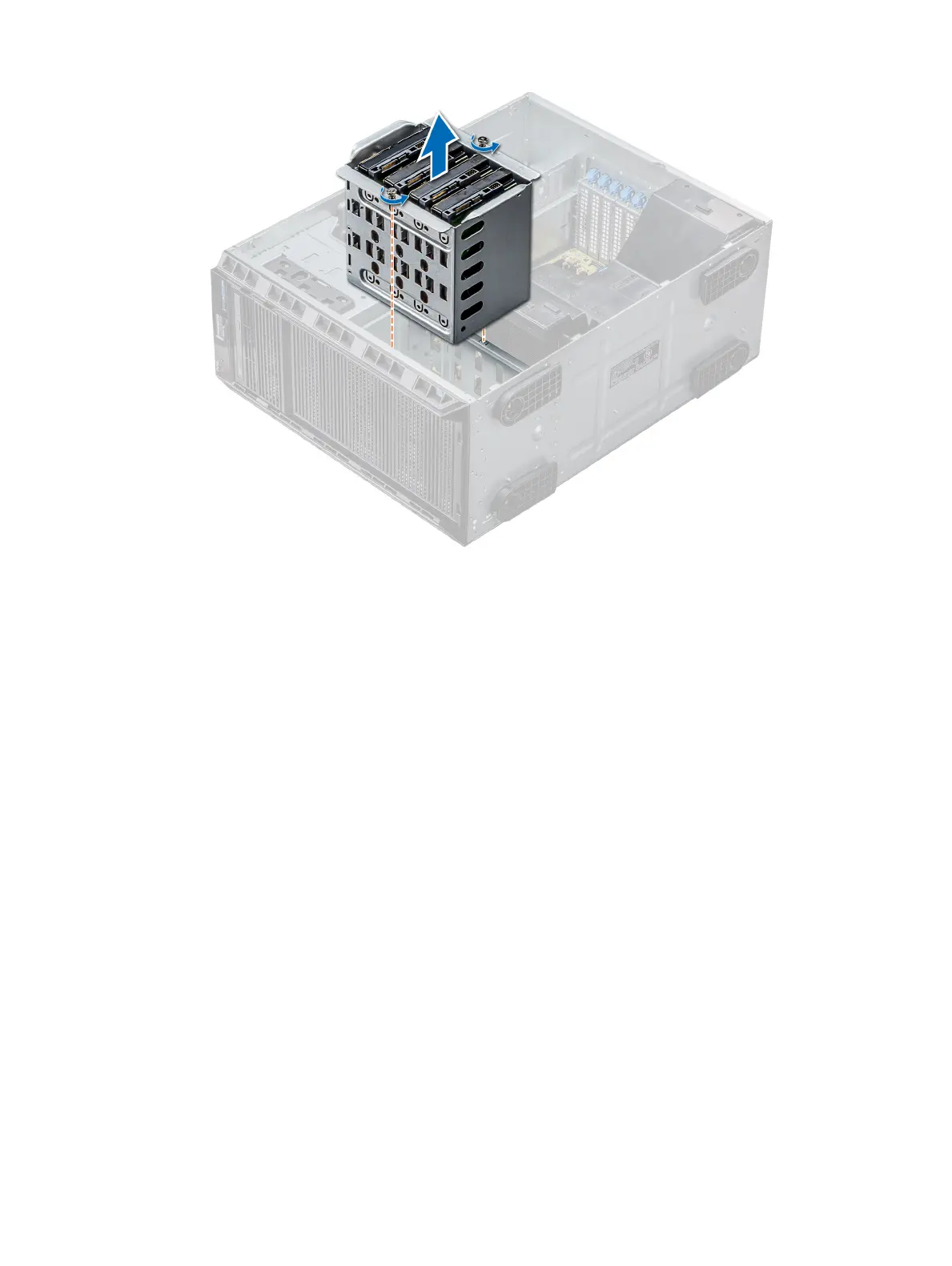

Figure 42. Removing the internal hard drive bay
Next step
Follow the procedure listed in After working inside your system.
Installing the internal hard drive bay
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Keep the Phillips #2 screwdriver ready.
Steps
1 Align the internal hard-drive bay with the tabs on the chassis and slide the internal hard drive bay into the chassis.
2 Secure the internal hard drive bay to the chassis using the two captive screws.
90
Installing and removing system components

Dell EMC PowerEdge T440 Specifications

Power

power rating	1100 W
voltage range	100 – 240 V
frequency	50/60 Hz
current range	12 A – 6.5 A

Battery

battery type	CR2032 lithium coin cell
battery voltage	3 V

Operating Environment

maximum ambient temperature	35°C/95°F
