76 Maintenance

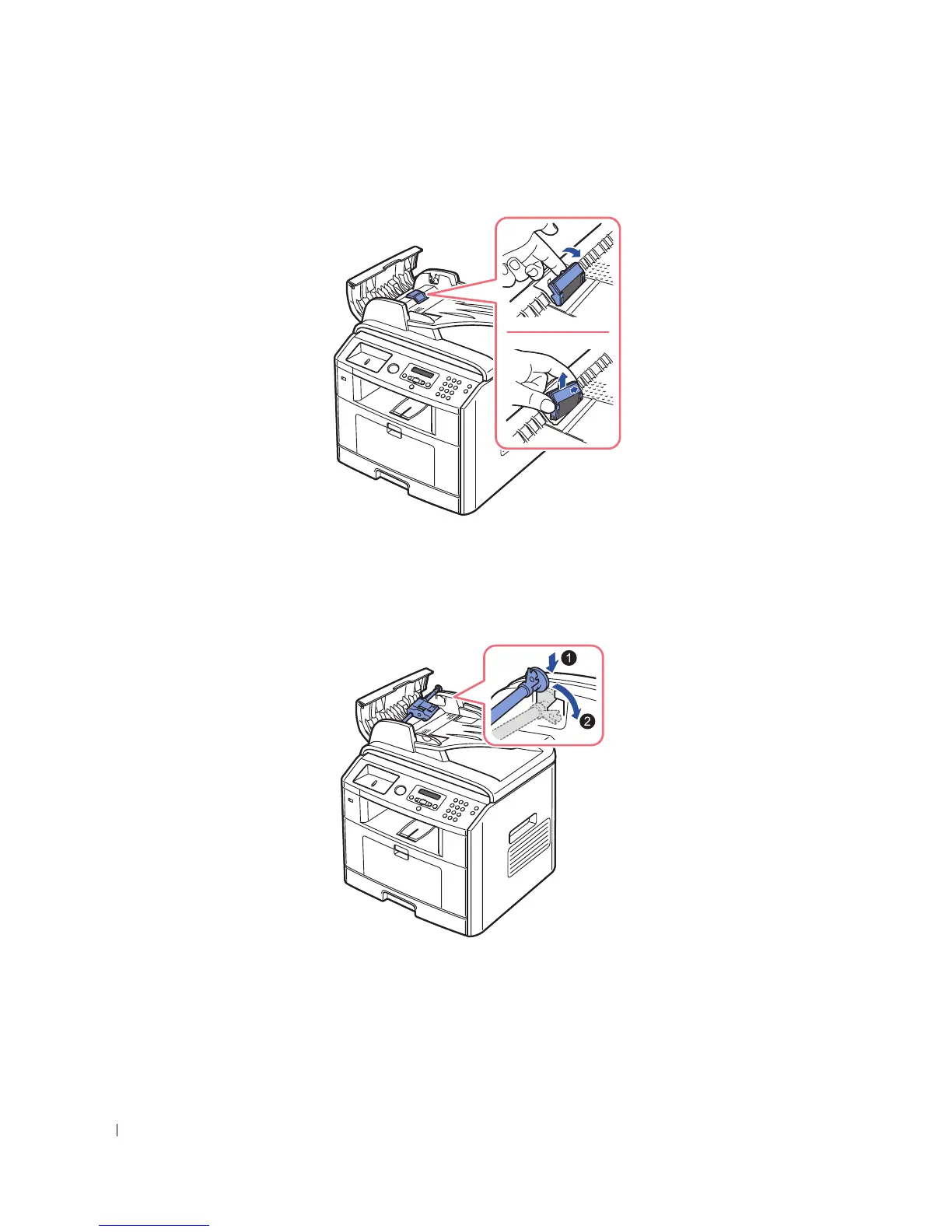

3 Remove the ADF rubber pad from the ADF, as shown.
4 Insert a new ADF rubber pad into place.
5 Align the left end of the ADF roller with the slot and push the right end of the ADF roller into the
right slot. Rotate the bushing on the right end of the roller toward the ADF.
6 Close the ADF cover.
