96 Installing Options
3

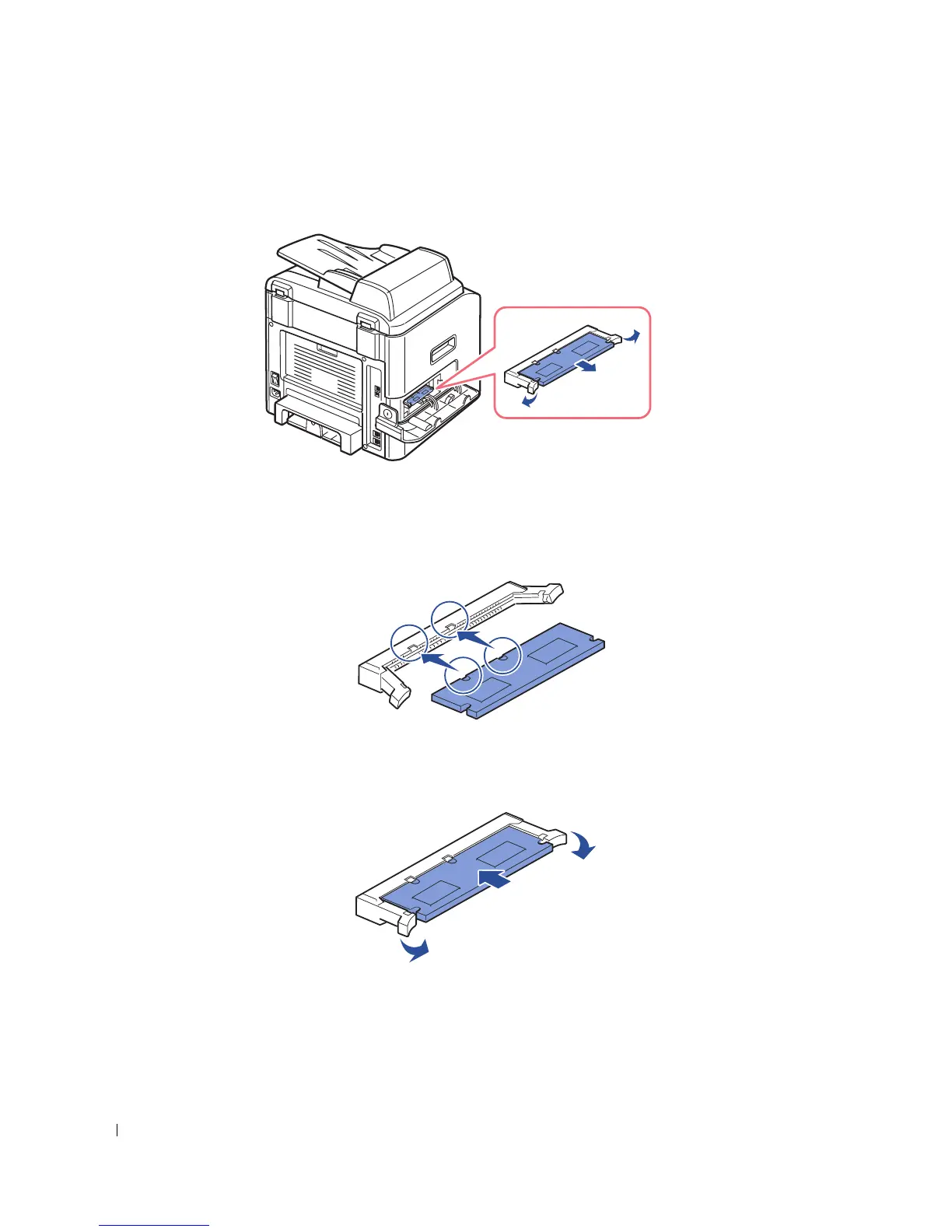

Completely open the latches on each side of the DIMM slot and remove the preinstalled memory
DIMM.
4
Remove a new memory DIMM from its antistatic package.
5
Holding the memory DIMM by the edges, align the notches on the memory DIMM with the grooves
at the top of the memory DIMM slot.
6
Push the DIMM straight into the DIMM slot until it snaps into place. Make sure the latches fit over
the notches located on either side of the DIMM.
