Removing the Display Assembly | 57
3 Turn the computer over and open the display.
4 Disconnect the video-card connector cable from its connector on the system board.
5 Pull the pull-tab to disconnect the display cable from its connector on the system
board.
6 Disconnect the LED-logo board cable from its connector on the system board.

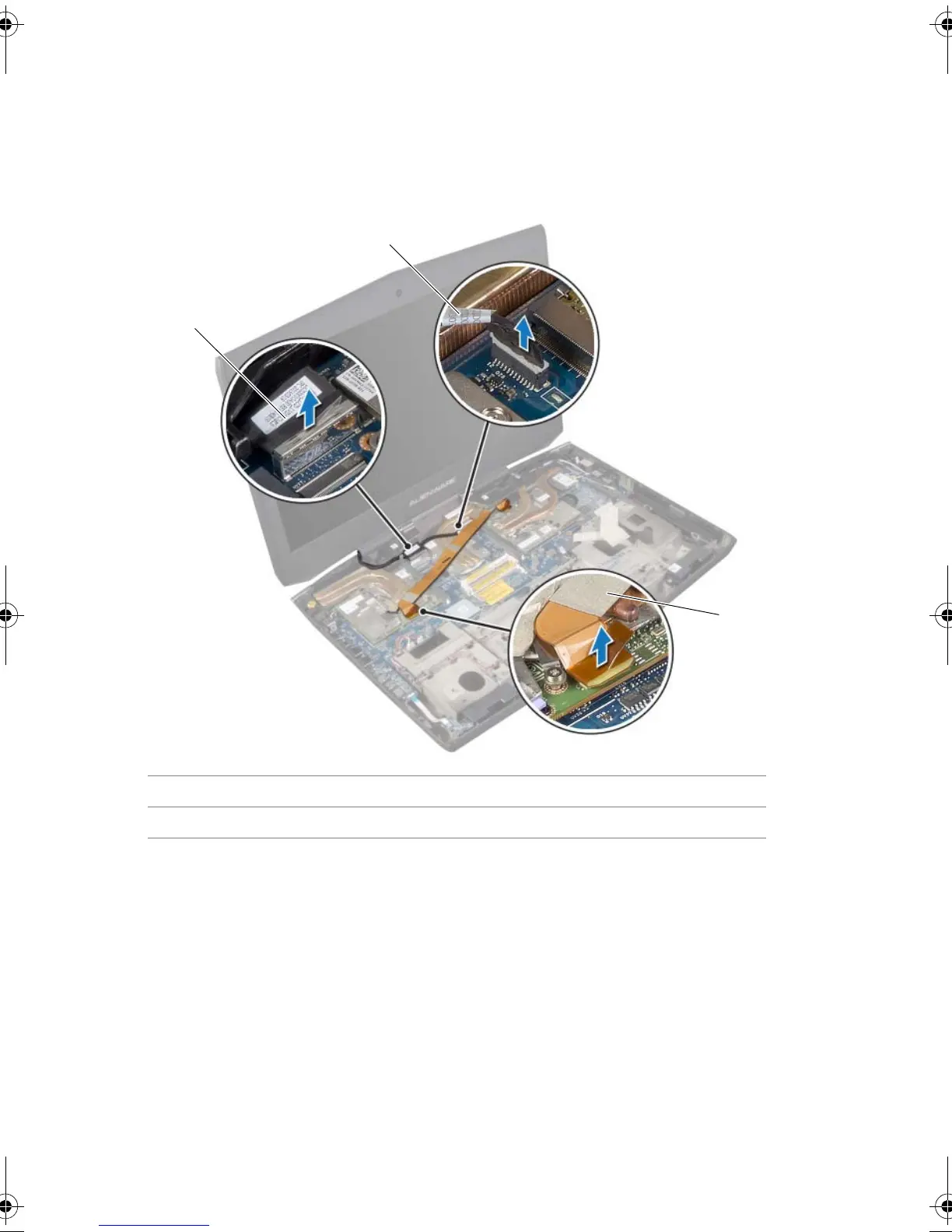

1 display cable connector 2 LED logo-board cable
3 video-card connector cable
