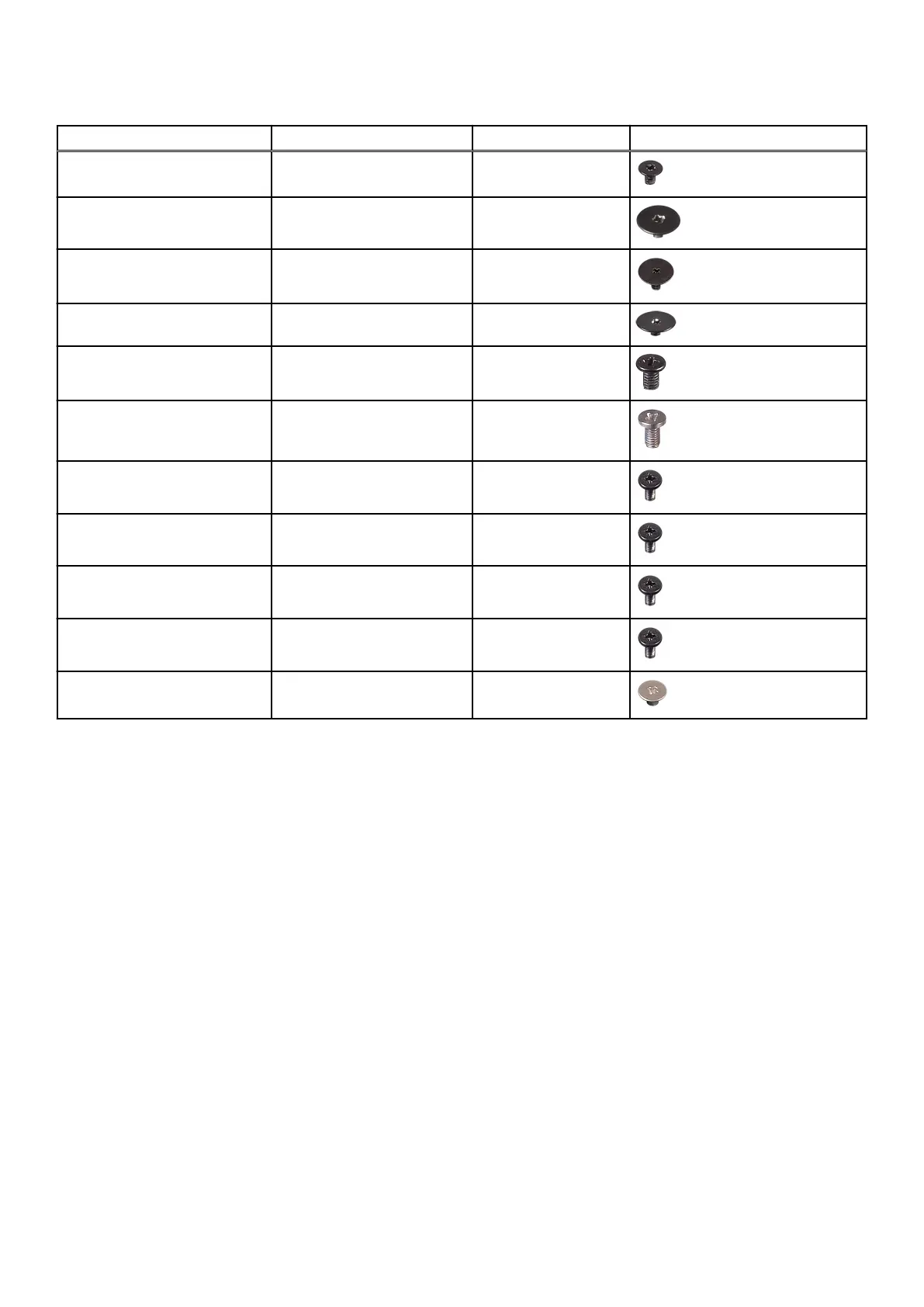

Table 1. Screw list (continued)

Component Screw type Quantity Screw image

Battery M2x3 4

Touchpad bracket M2.5x2.5 2

Touchpad M2x2 2

Keyboard-controller board M2x2 1

Rear I/O cover M2x4 2

Rear I/O cover M2.5x5 2

Power-adapter port-bracket M2x4 2

System board M2x4 9

Heat-sink assembly M2x4 6

USB board M2x4 2

Power button M2x2 3

Major components of Alienware m15 R6

The following image shows the major components of Alienware m15 R6 .
