Installing the power button
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

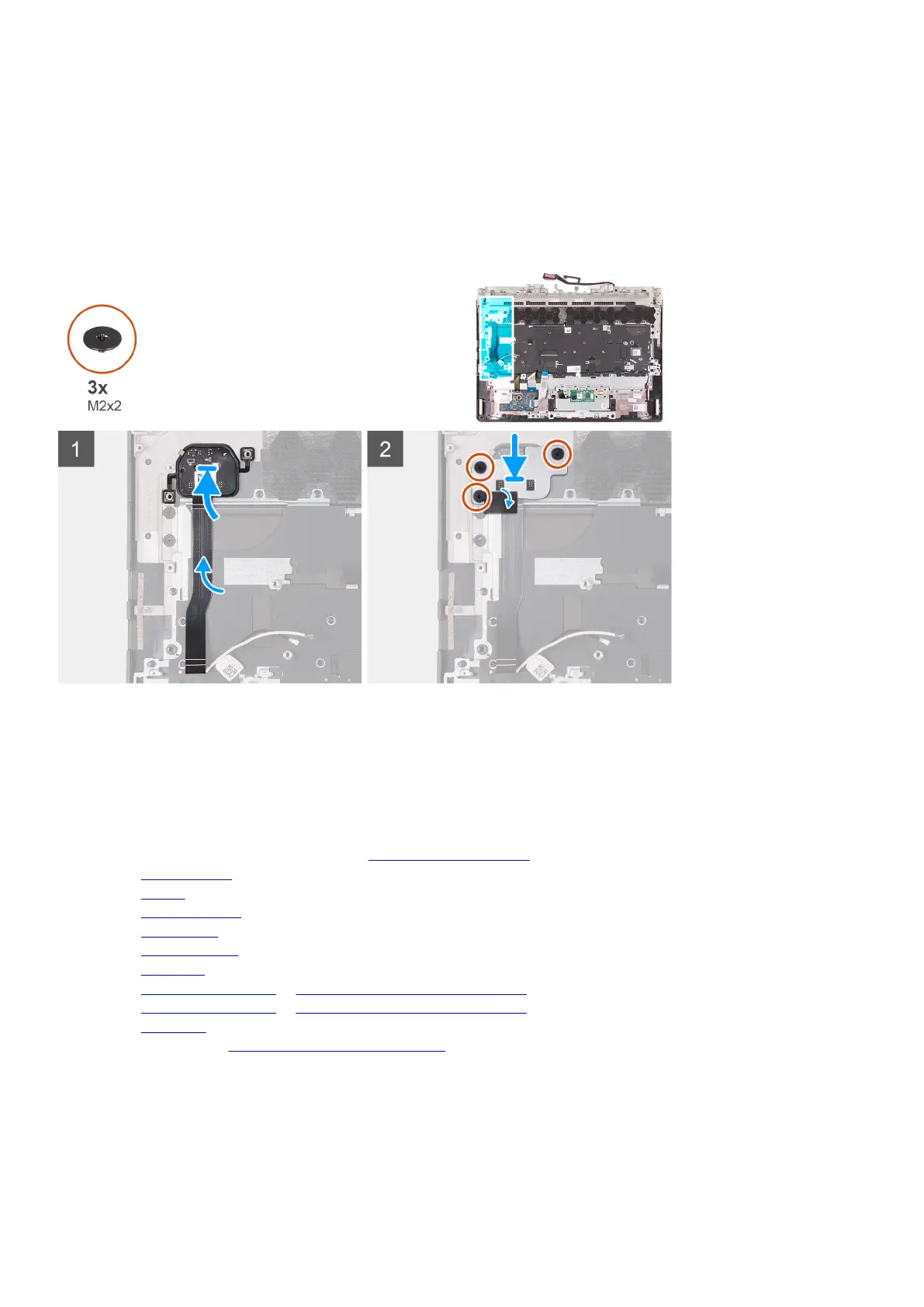

The following image indicates the location of the power button and provides a visual representation of the installation procedure.
Steps
1. Place the power button on the slot on the palm-rest and keyboard assembly.
2. Align the screw holes on the power-button bracket with the screw holes on the palm-rest and keyboard assembly.
3. Replace the three screws (M2x2) that secure the power-button bracket to the palm-rest and keyboard assembly.
Next steps
1. Follow the procedure from step 4 to step 20 in Installing the system board.
2. Install the
rear I/O-cover.
3. Install the battery.
4. Install the display assembly.
5. Install the wireless card.
6. Install the memory module.
7. Install the I/O board.
8. Install the 2230 solid-state drive or 2280 solid-state drive in SSD slot one, whichever applicable.
9. Install the 2230 solid-state drive or 2280 solid-state drive in SSD slot two, whichever applicable.
10.Install the
base cover.
11. Follow the procedure in After working inside your computer.
