4. Follow the procedure in After working inside your computer.

I/O board

Removing the I/O board

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

About this task

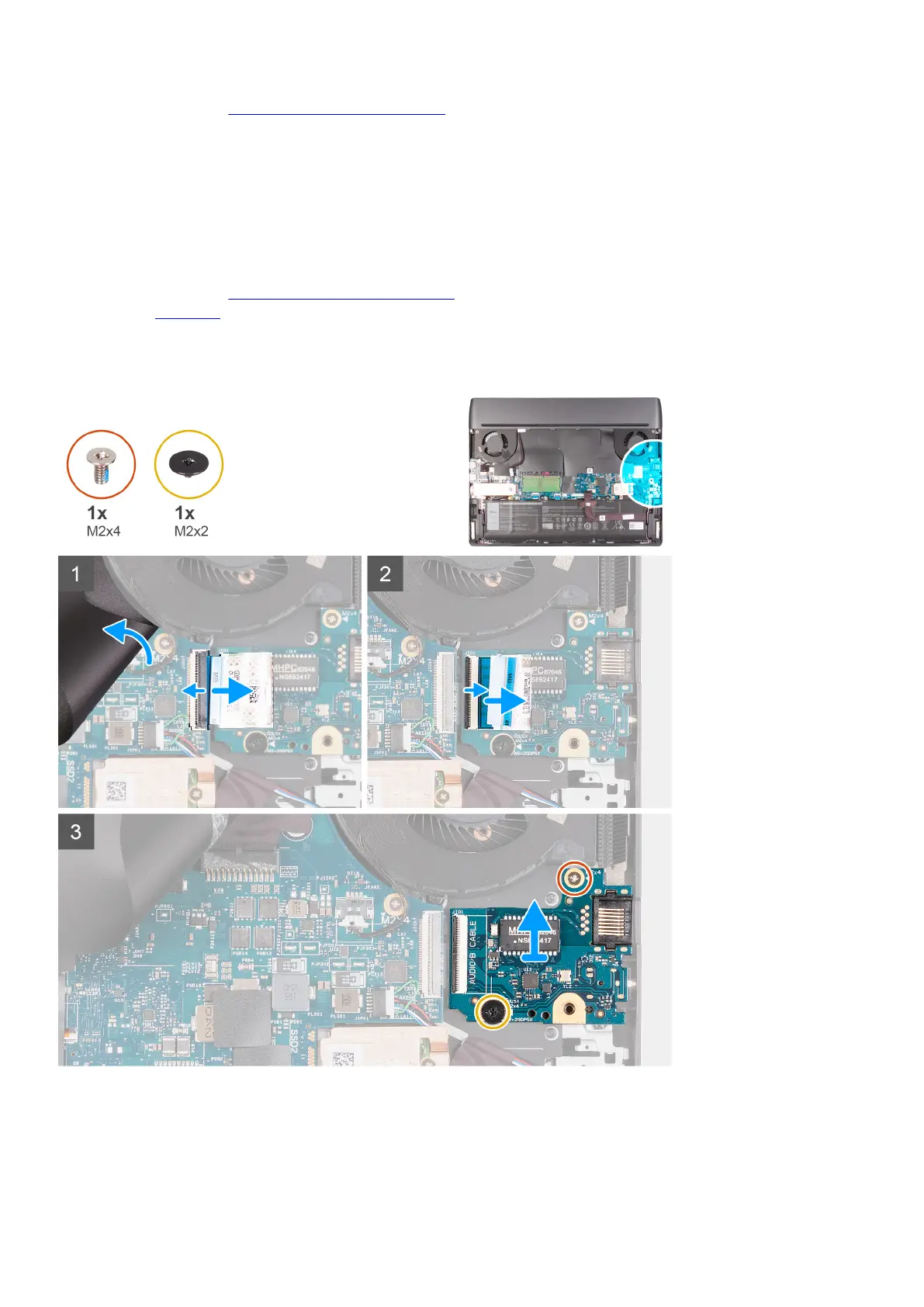

The following image indicates the location of the I/O board and provides a visual representation of the removal procedure.

Steps

1. Lift the system board Mylar and open the latch to disconnect the I/O-board cable from the system board.

2. Open the latch to disconnect the I/O-board cable from the I/O board.

3. Remove the screw (M2x4) that secures the I/O board to the palm-rest and keyboard assembly.
