Installing the palm-rest and keyboard assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

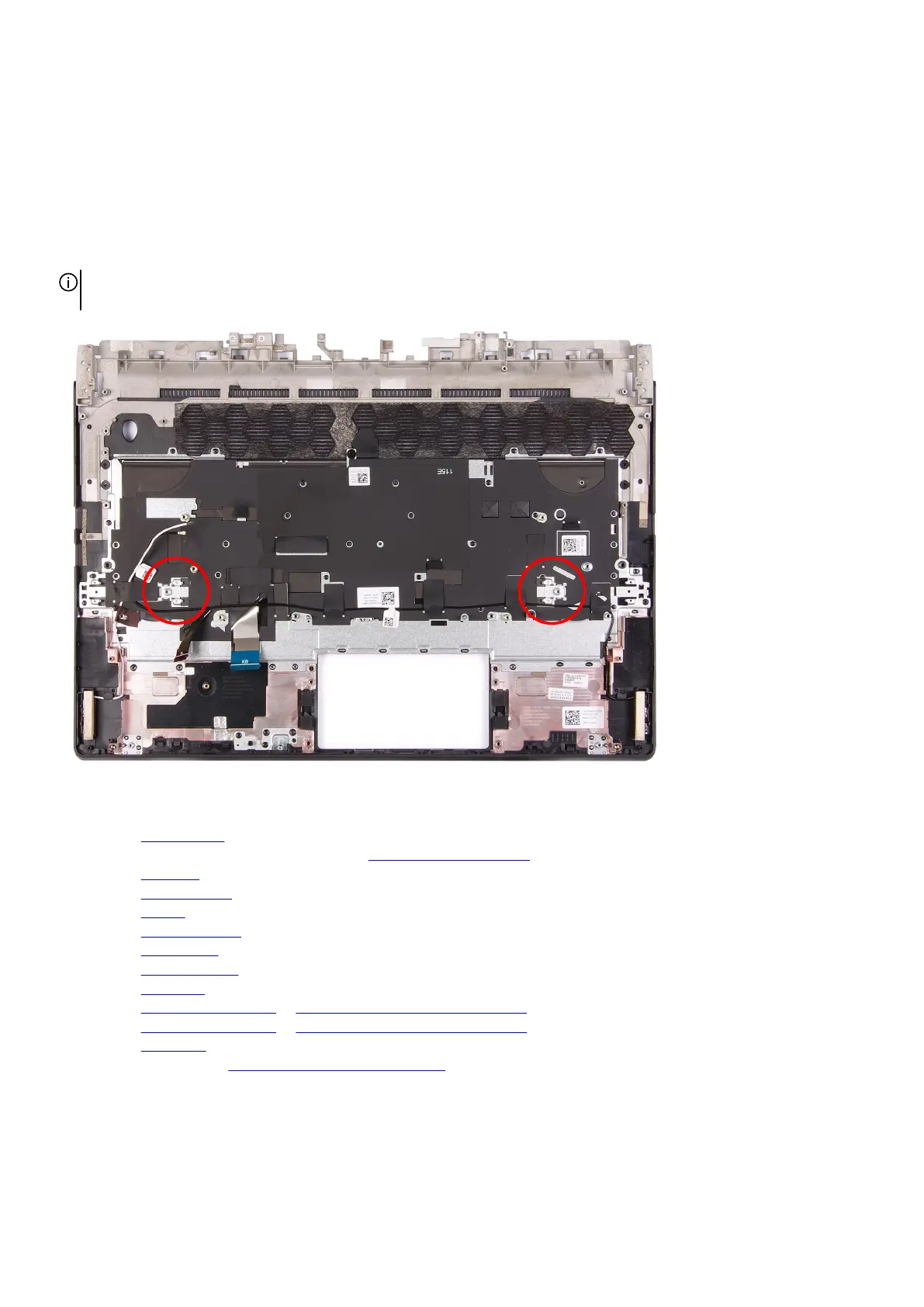

Place the palm-rest and keyboard assembly on a flat surface.
NOTE: When replacing the palm-rest and keyboard assembly, the solid-state drive mounting brackets have to be transferred
from the old palm-rest and keyboard assembly to the replacement palm-rest and keyboard assembly.
Next steps
1. Install the power button.
2. Follow the procedure from step 4 to step 20 in
Installing the system board.
3. Install the touchpad.
4. Install the rear I/O-cover.
5. Install the battery.
6. Install the display assembly.
7. Install the wireless card.
8. Install the memory module.
9. Install the
I/O board.
10.Install the 2230 solid-state drive or 2280 solid-state drive in SSD slot one, whichever applicable.
11. Install the 2230 solid-state drive or 2280 solid-state drive in SSD slot two, whichever applicable.
12. Install the base cover.
13. Follow the procedure in After working inside your computer.
