Steps

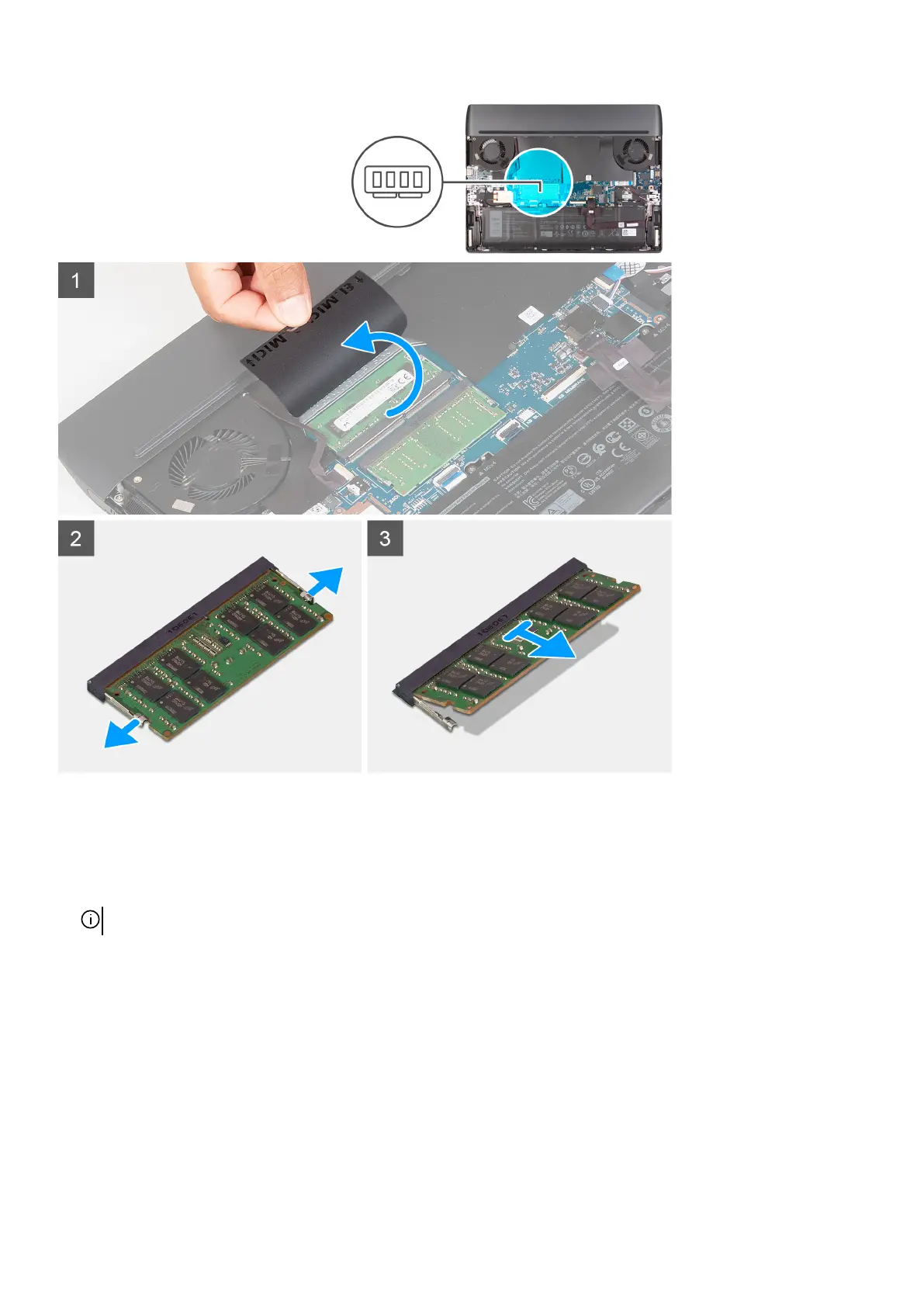

1. Lift the system board Mylar to access the memory module.

2. Use your fingertips to carefully spread apart the securing-clips on each end of the memory-module slot until the memory module

pops up.

3. Remove the memory module from the memory-module slot.

NOTE: Repeat step 1 and step 3 to remove the other memory module, if installed on your computer.

Installing the memory module

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The following image indicates the location of the memory module and provides a visual representation of the installation procedure.
