Dell Alienware m15 R6 - Installing the Wireless Card

3. Lift the wireless-card bracket off the wireless card.
4. Disconnect the antenna cables from the wireless card.
5. Slide and remove the wireless card from the wireless-card slot.
Installing the wireless card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

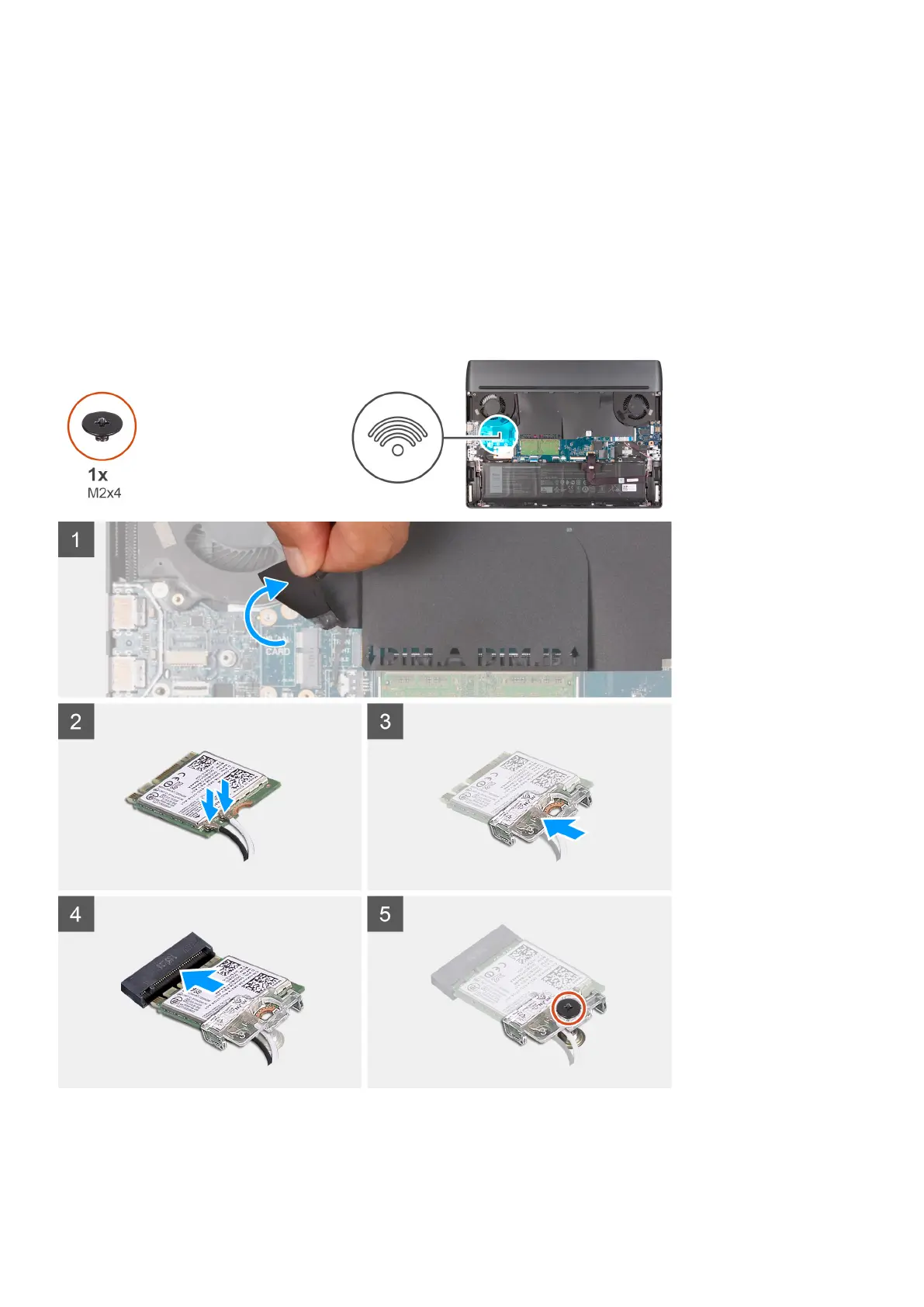

The following image indicates the location of the wireless card and provides a visual representation of the installation procedure.
Steps
1. Lift the system board Mylar to access the wireless-card slot.
2. Connect the antenna cables to the wireless card.
