Installing the USB board

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

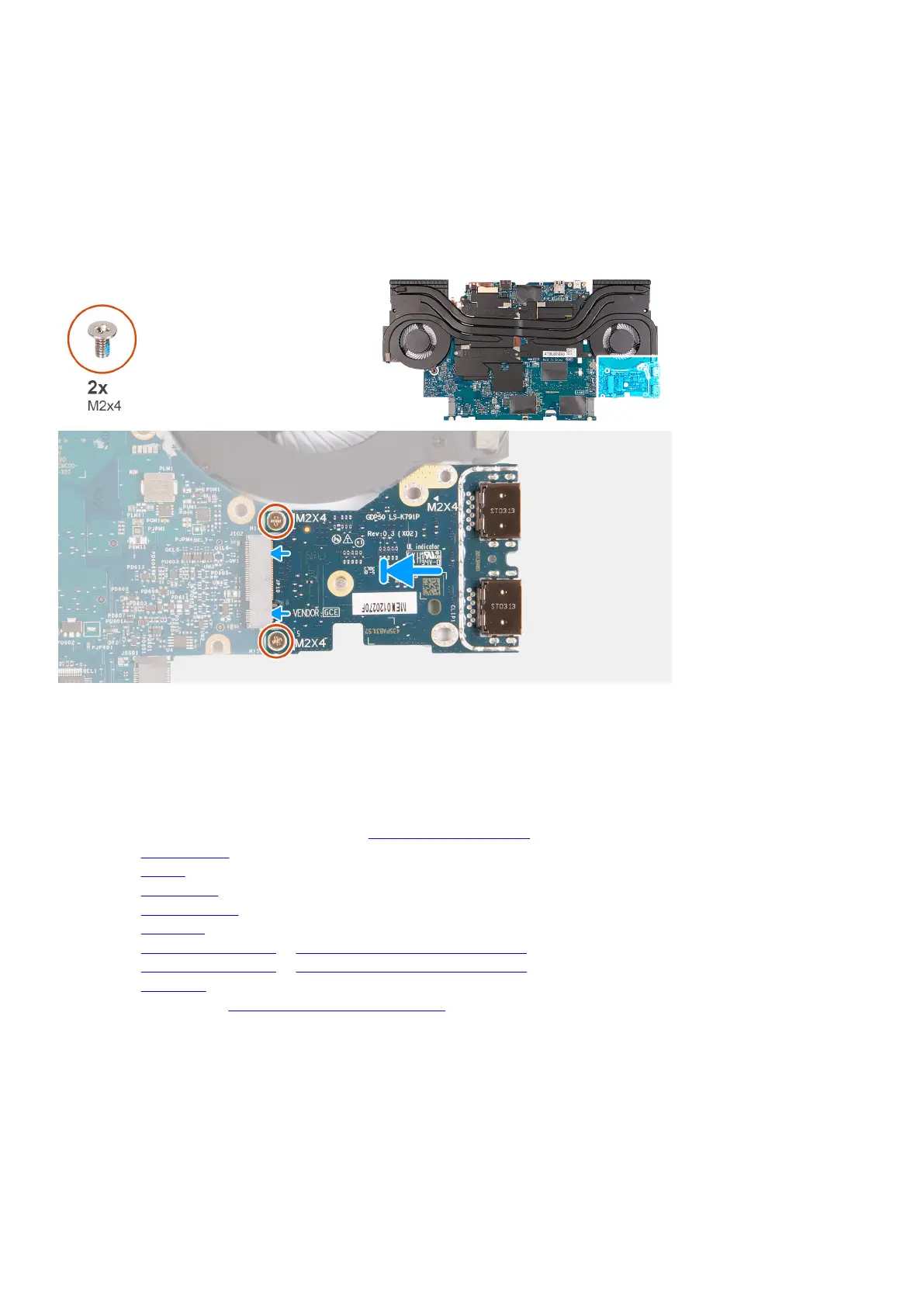

The following image indicates the location of the USB board and provides a visual representation of the installation procedure.

Steps

1. Align the screw holes on the USB board with the screw holes on the system board.

2. Replace the two screws (M2x4) that secure the USB board to the system board.

Next steps

1. Follow the procedure from step 4 to step 20 in Installing the system board.

2. Install the rear I/O cover.

3. Install the

battery.

4. Install the wireless card.

5. Install the memory module.

6. Install the I/O board.

7. Install the 2230 solid-state drive or 2280 solid-state drive in SSD slot one, whichever applicable.

8. Install the 2230 solid-state drive or 2280 solid-state drive in SSD slot two, whichever applicable.

9. Install the base cover.

10.Follow the procedure in

After working inside your computer.
