3. Peel the display cable from the system board and remove the display cable from the slot on the system board.
4. Lift the system board Mylar next to the left fan to access the power-adapter port.
5. Remove the two screws (M2x4) on the power-adapter port-bracket that secures the power-adapter port bracket to the system
board.
6. Lift the power-adapter port-bracket off the system board.
7. Disconnect the power-adapter port-cable from the system board.
8. Peel and lift the power-adapter port, along with its cable, off the system board.
Installing the power-adapter port
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

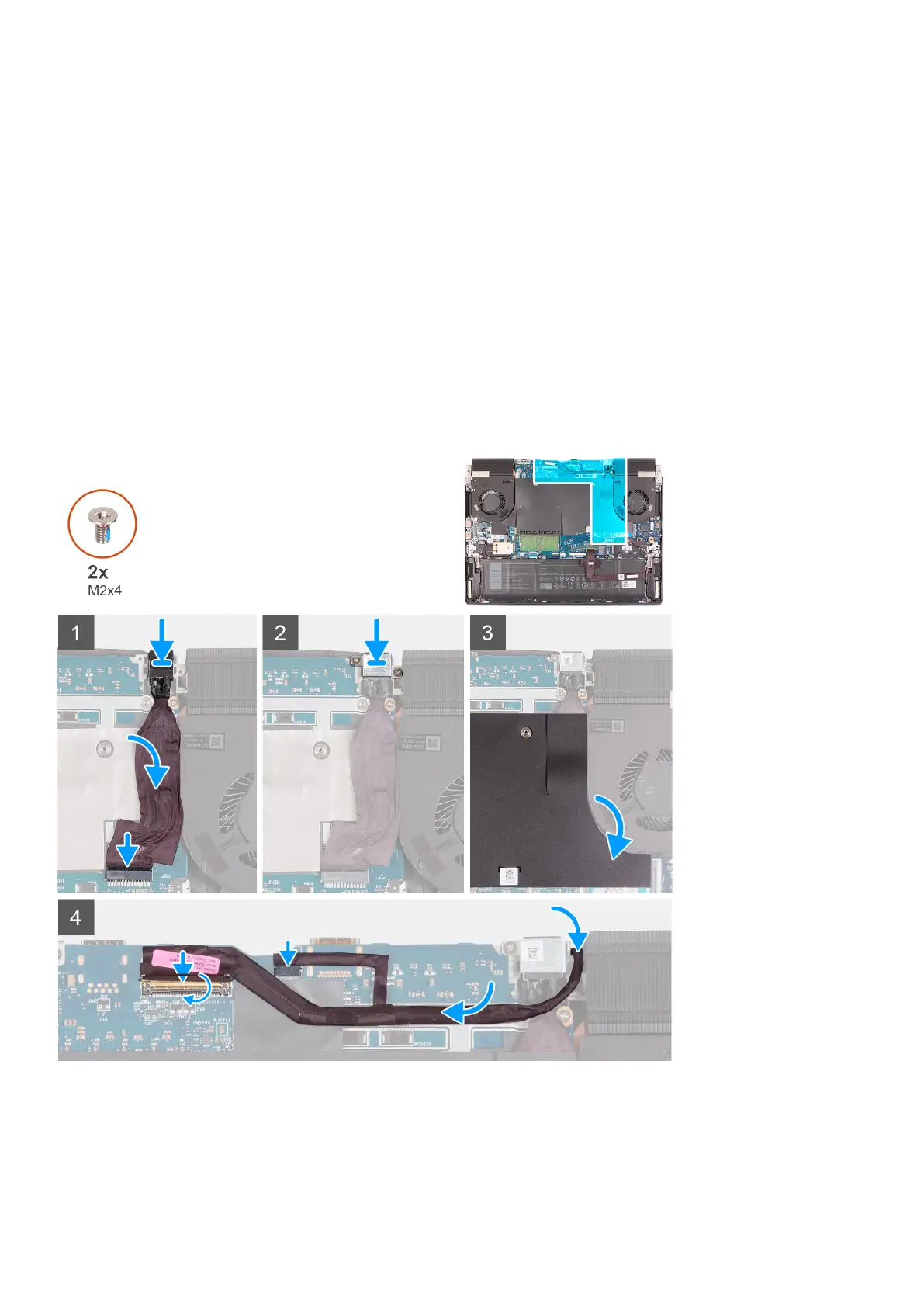

The following image indicates the location of the power-adapter port and provides a visual representation of the installation
procedure.
Steps
1. Lift the system board Mylar next to the left fan to access the power-adapter port slot.
2. Place the power-adapter port into the slot on the system board.
3. Connect the power-adapter port cable to the system board.
49
