NOTE: If the device is shipped with the NVIDIA GeForce RTX 3050 Ti discrete GPU controller, there are two screws (M2x4)
that secure the I/O board to the palm-rest and keyboard assembly. Remove the two screws (M2x4) and see step 5.
4. Loosen the captive screw (M2x2) that secures the I/O board to the palm-rest and keyboard assembly.
NOTE: If your device is shipped with the NVIDIA GeForce RTX 3050 Ti discrete GPU controller, skip this step and see step
5.
5. Lift the I/O board off the palm-rest and keyboard assembly.
Installing the I/O board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

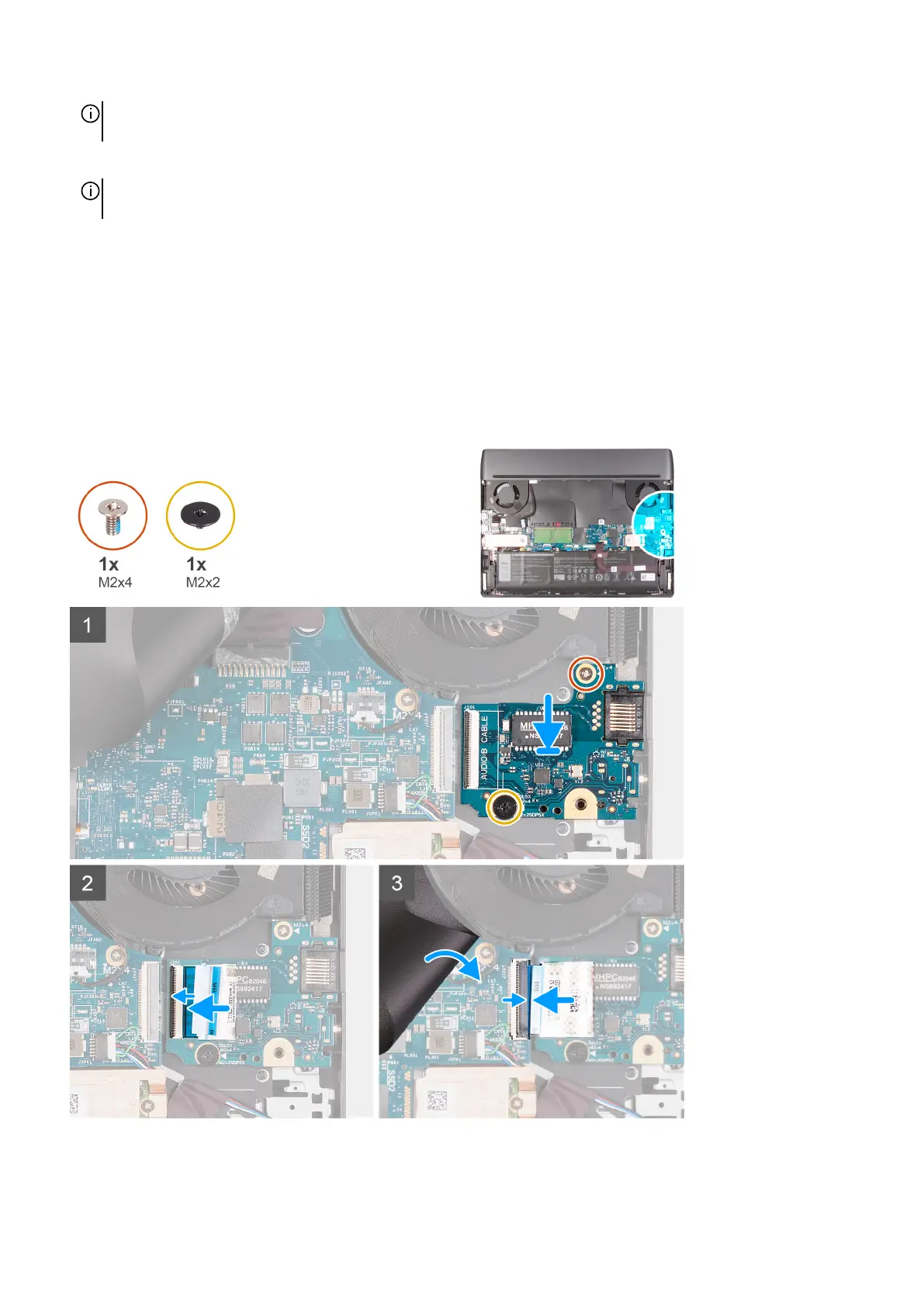

The following image indicates the location of the I/O board and provides a visual representation of the installation procedure.
\
Steps
1. Peel back the system board Mylar.
37
