Wireless card
Removing the wireless card
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
About this task

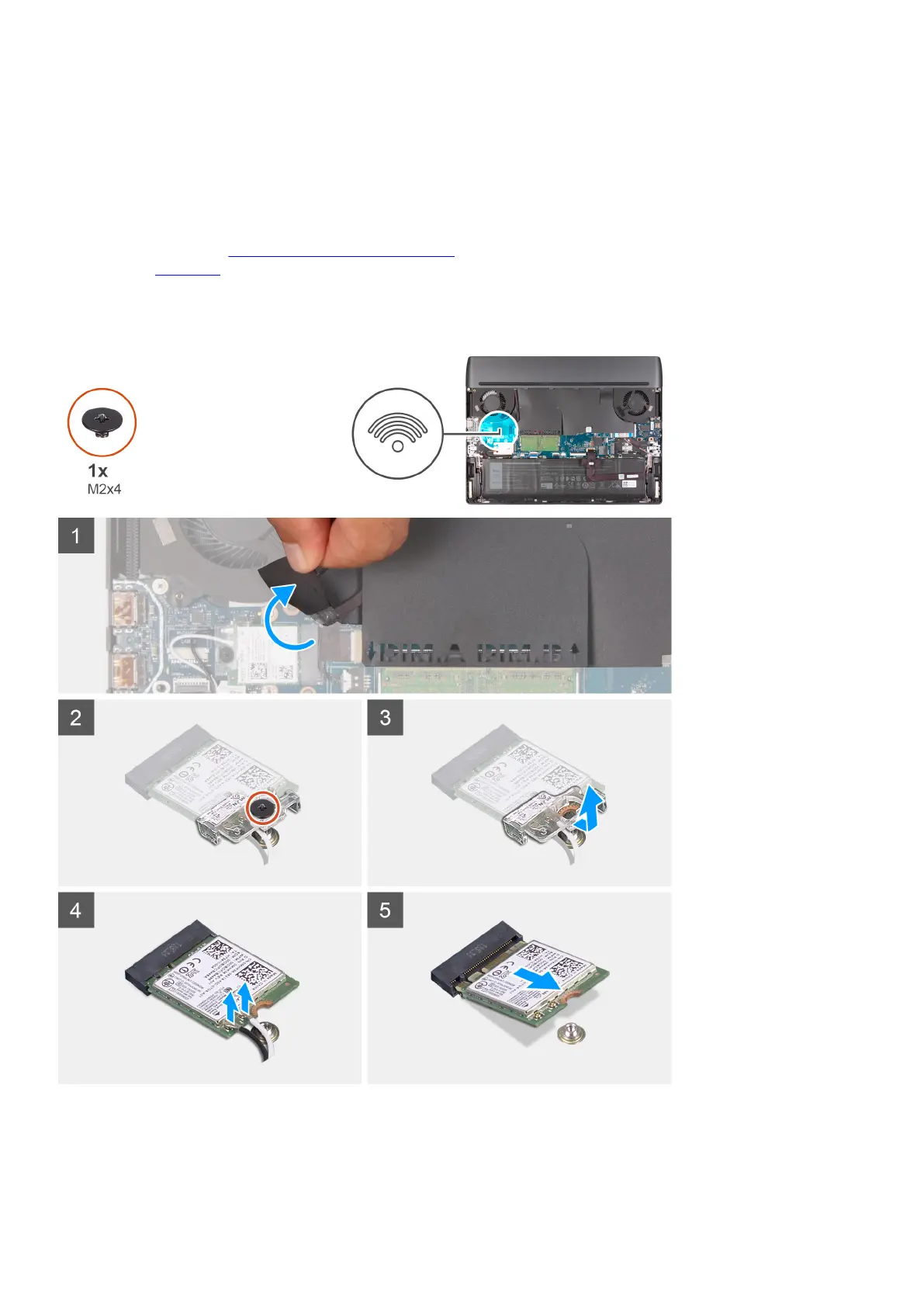

The following image indicates the location of the wireless card and provides a visual representation of the removal procedure.
Steps
1. Lift the system board Mylar to access the wireless card.
2. Remove the screw (M2x4) that secures the wireless-card bracket to the system board and palm-rest and keyboard assembly.
41
