10.Lift the display assembly off the palm-rest and keyboard assembly.

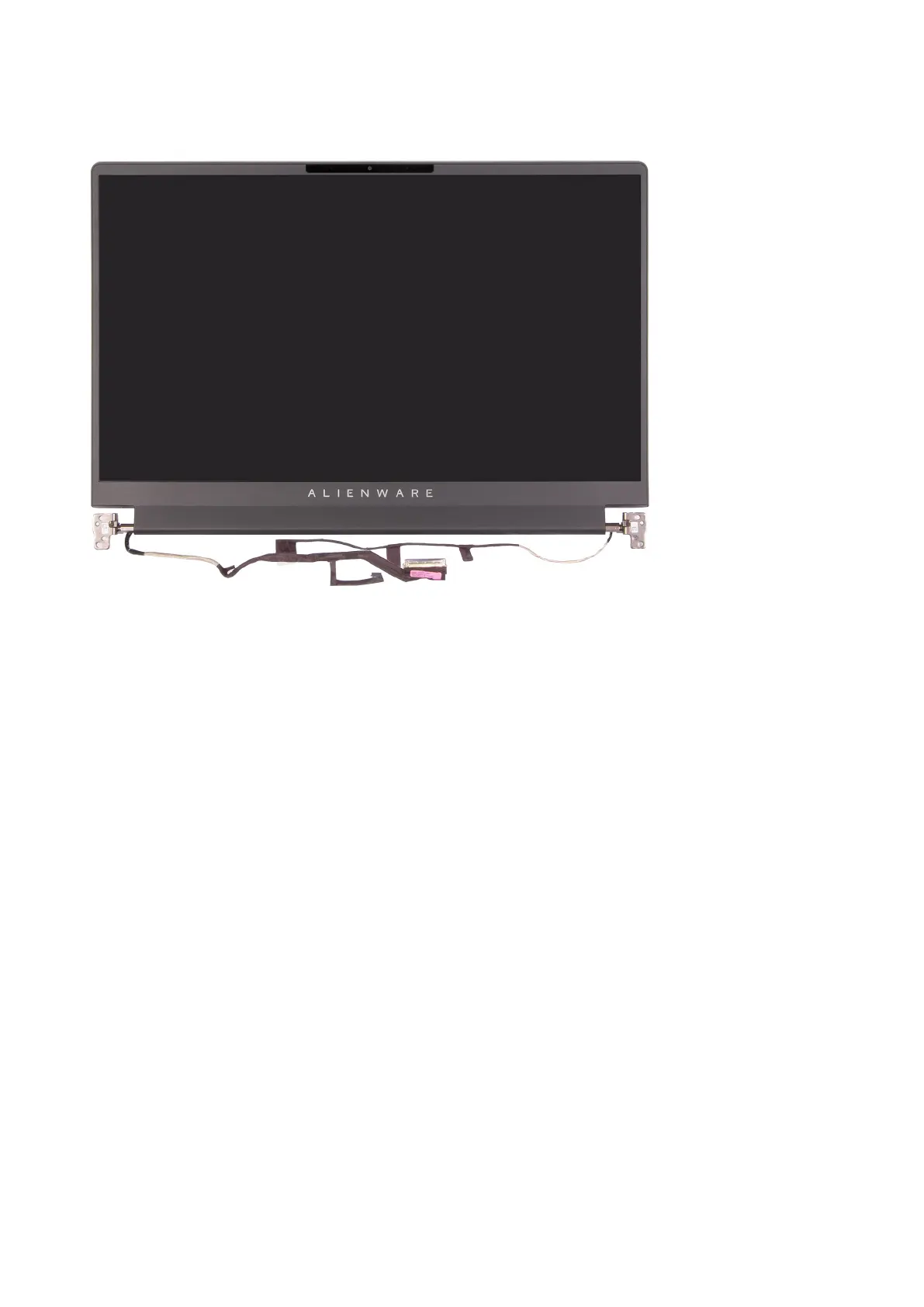

11. After performing all the above steps, you are left with the display assembly.
Installing the display assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the display assembly and provides a visual representation of the installation procedure.
53
