NOTE: Your computer’s Service Tag is stored in the system board. You must enter the Service Tag in the BIOS setup program

after you replace the system board.

NOTE: Replacing the system board removes any changes you have made to the BIOS using the BIOS setup program. You must

make the appropriate changes again after you replace the system board.

About this task

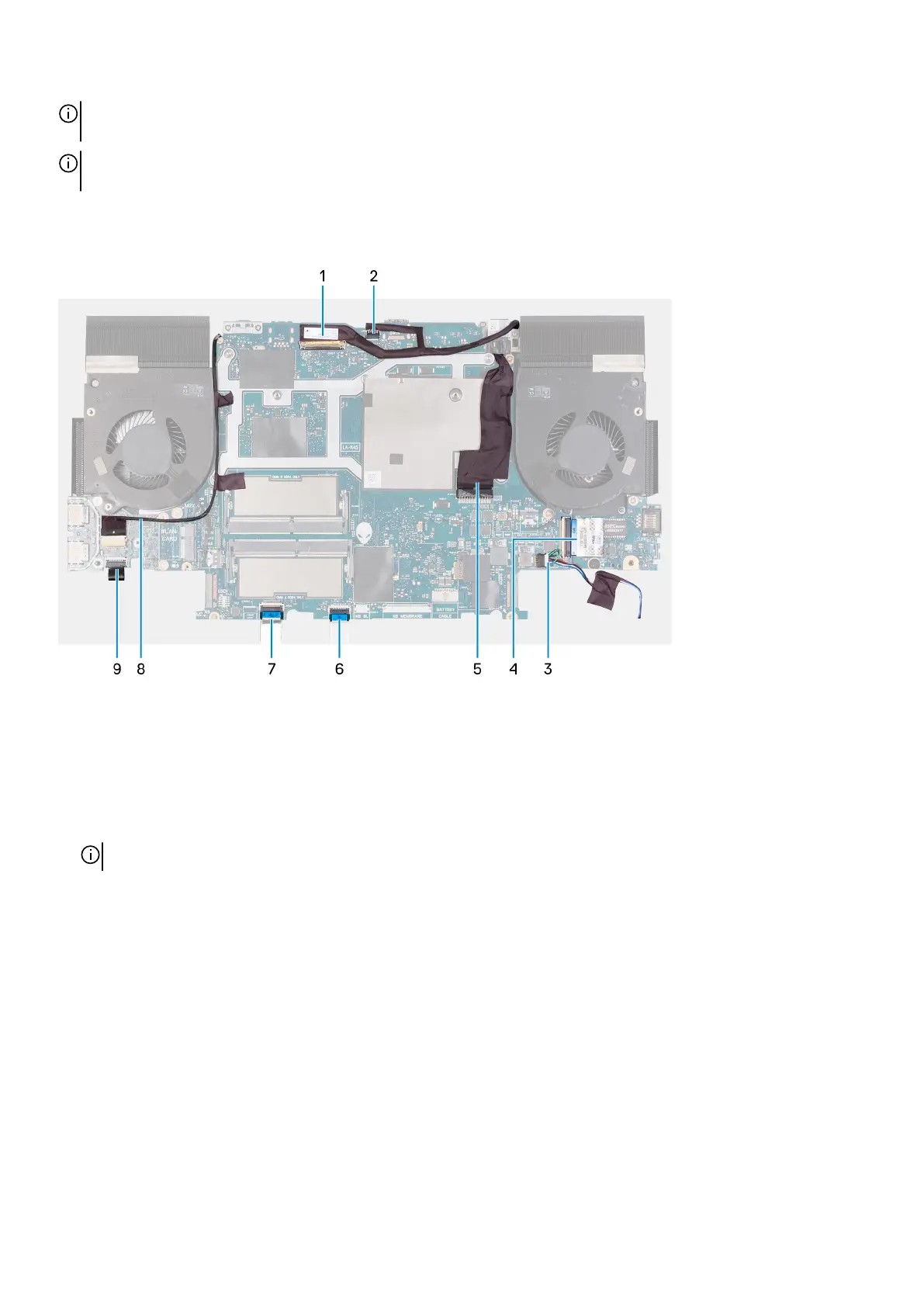

The following image indicates the connectors on your system board.

1. Display cable

2. Alienhead LED cable

3. Speaker cable

4. I/O-board cable

5. Power-adapter port cable

6. Touchpad cable

7. Keyboard cable

8. RGB-IR camera cable

NOTE: This applies to devices that are shipped with a hybrid RGB-IR camera module.

9. Power button cable

The following image indicates the location of the system board and provides a visual representation of the installation procedure.
