About this task

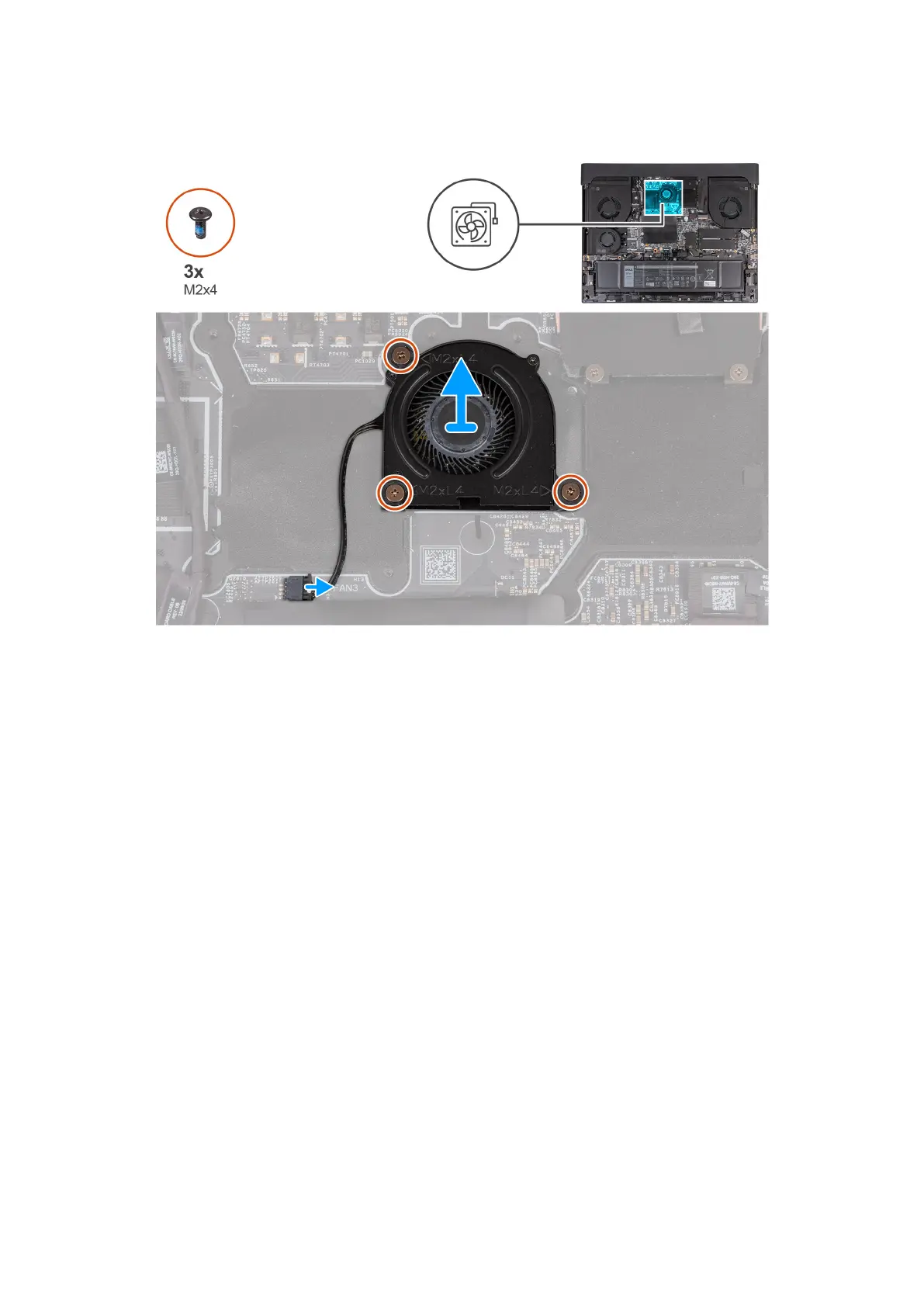

The following image indicates the location of the small fan and provides a visual representation of the removal procedure.
Steps
1. Disconnect the fan cable from the connector (FAN3) on system board.
2. Remove the three screws (M2x4) that secure the fan to the palm-rest and keyboard assembly.
3. Lift the fan from the system board.
Installing the small fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image indicates the location of the small fan and provides a visual representation of the installation procedure.
