Steps
1. Remove the four screws (M2x3) that secure the top heat-sink to the system board.
2. Lift the top heat-sink off the system board.
Installing the top heat-sink
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

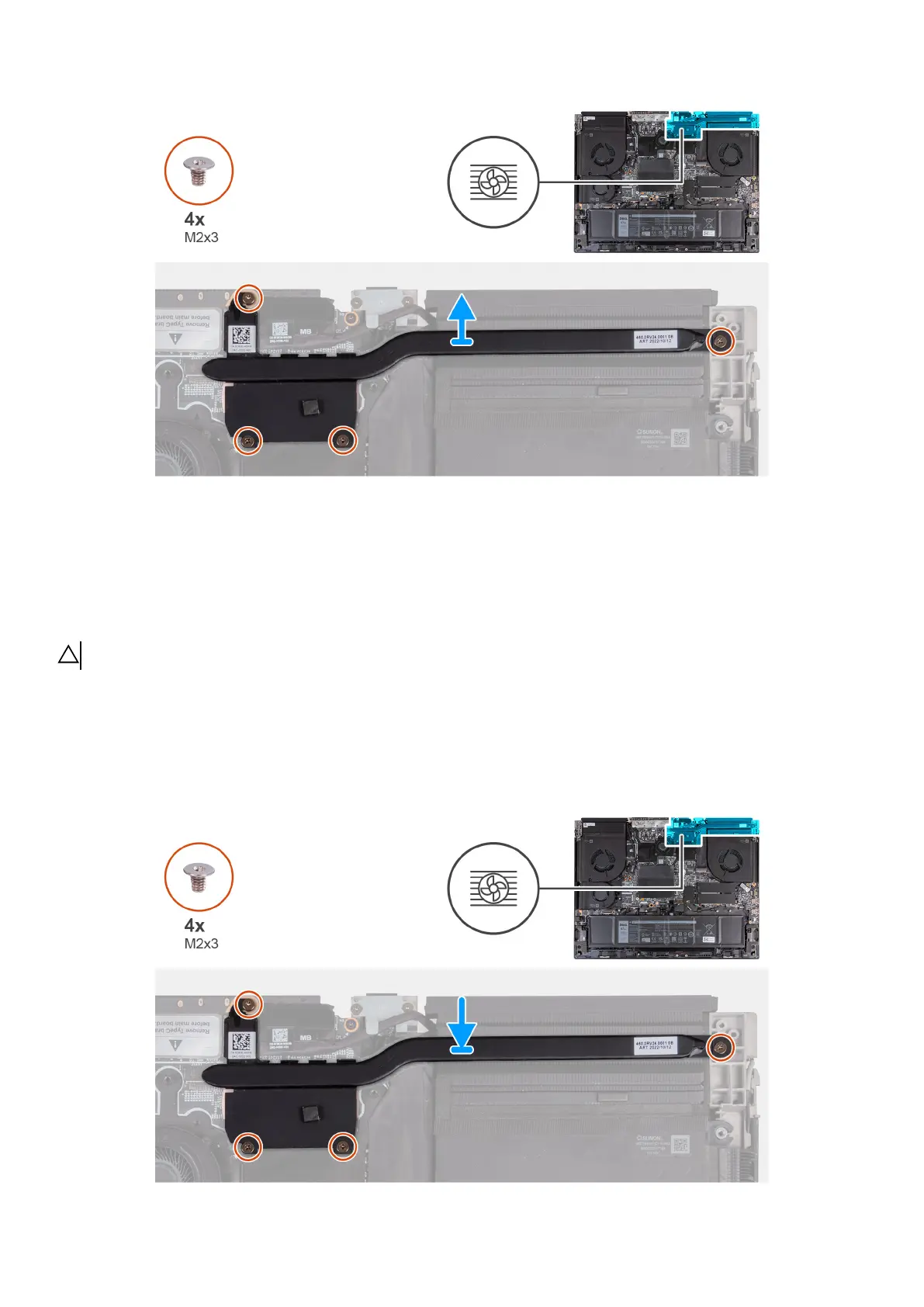

The following image indicates the location of the top heat-sink and provides a visual representation of the installation procedure.
