Steps

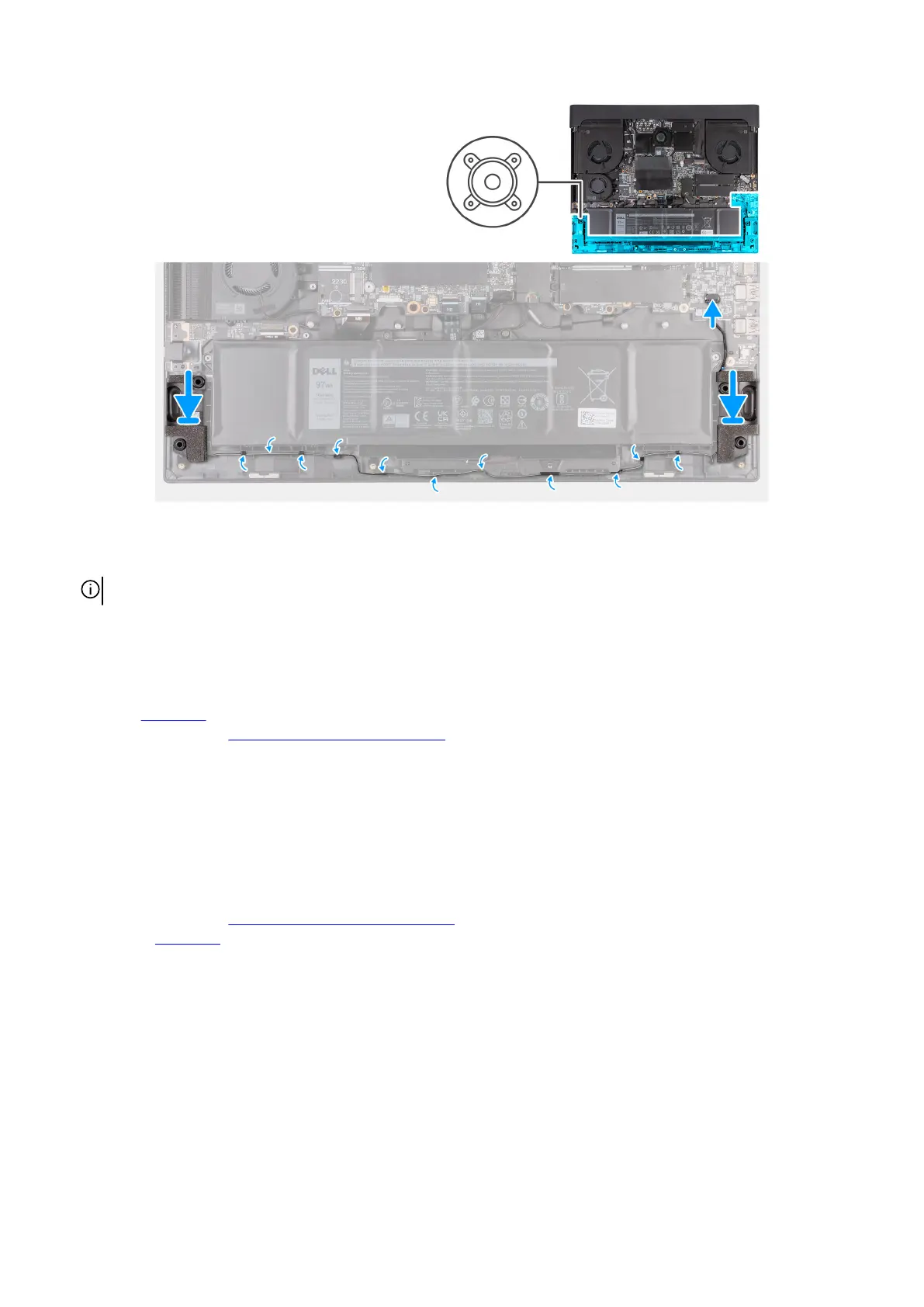

1. Using the alignment posts, place the left and right speakers into their slots on the palm-rest and keyboard assembly.
NOTE: Ensure that the alignment posts are threaded through the rubber grommets on the speaker.
2. Route the speaker cable through the routing guides on the palm-rest and keyboard assembly.
3. Connect the speaker cable to the audio board.
Next steps
1. Install the
base cover.
2. Follow the procedure in After working inside your computer.
Rear I/O cover
Removing the rear I/O cover
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following images indicate the location of the rear I/O cover and provide a visual representation of the removal procedure.
