Steps

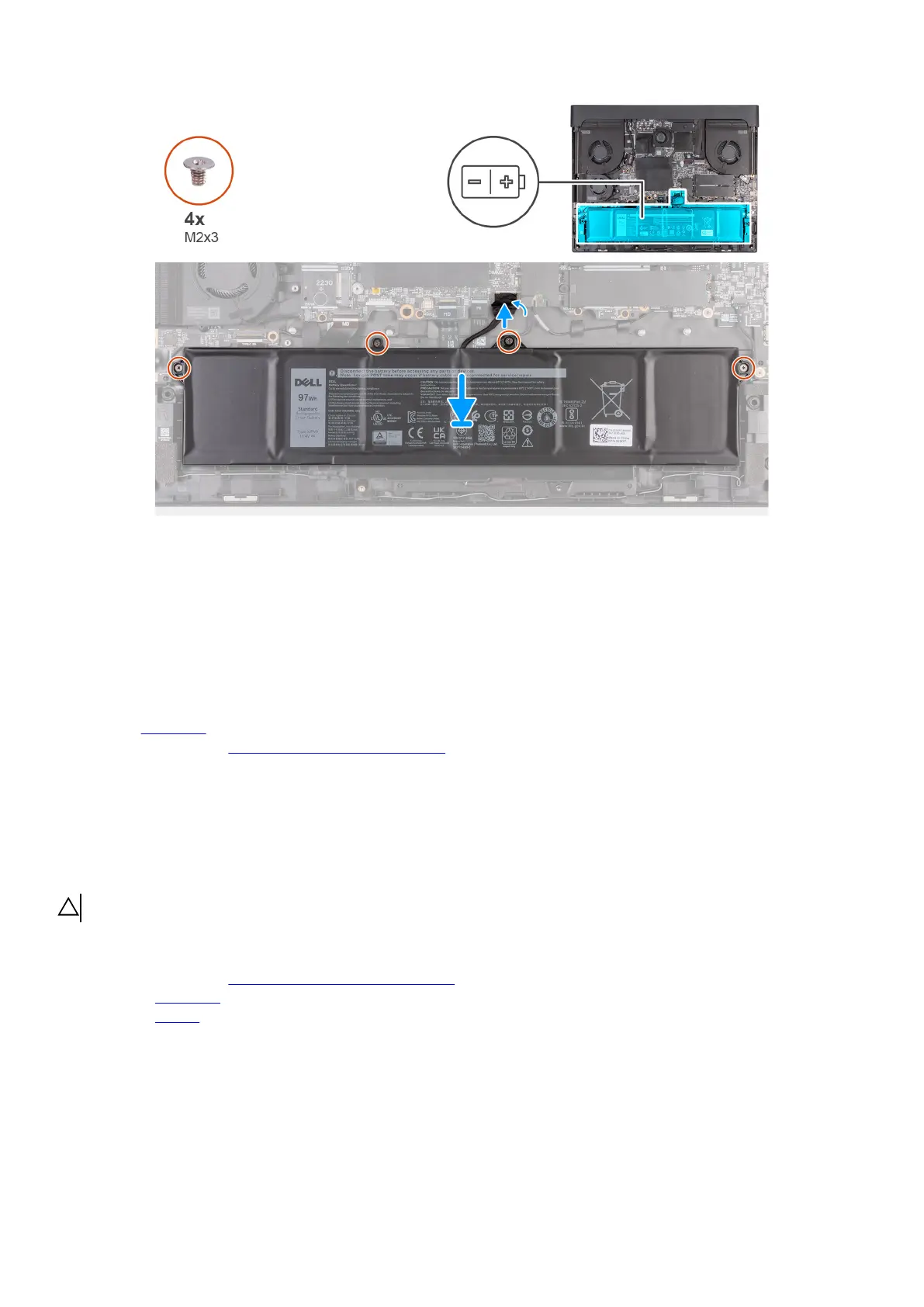

1. Using the alignment posts, place the battery on the palm-rest and keyboard assembly.
2. Align the screw holes on the battery with the screw holes on the palm-rest and keyboard assembly.
3. Replace the four screws (M2x3) that secure the battery to the palm-rest and keyboard assembly.
4. Connect the battery cable to the connector (BATT1) on the system board.
5. Adhere the tape that secures the battery cable to the system board.
Next steps
1. Install the
base cover.
2. Follow the procedure in
After working inside your computer.
Keyboard-controller board
Removing the keyboard-controller board
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
3. Remove the
battery.
About this task
The following image indicates the location of the keyboard-controller board and provides a visual representation of the removal
procedure.
