Steps

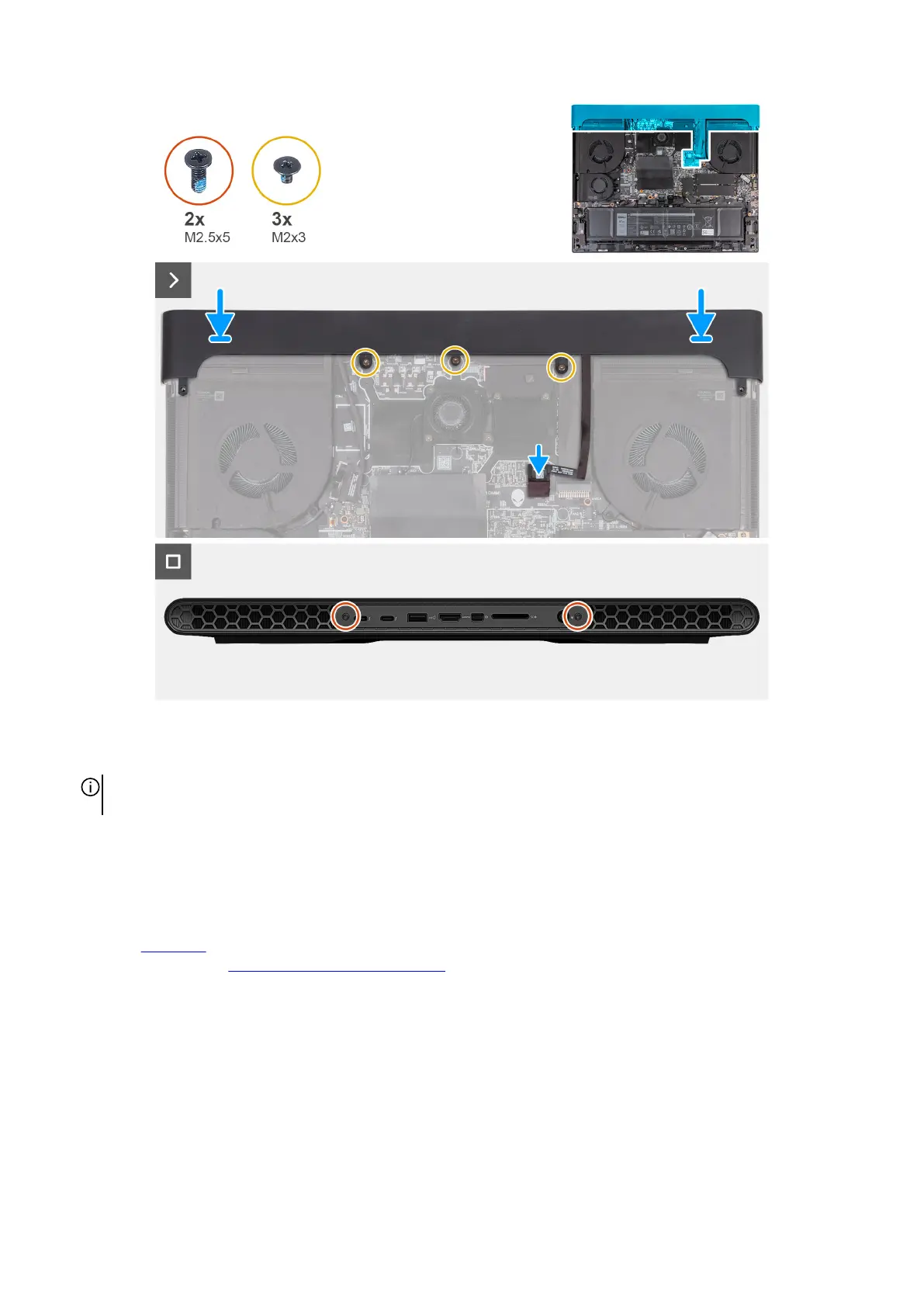

1. With the correct orientation, slide the rear I/O cover into the palm-rest and keyboard assembly, and snap it into place.
NOTE: To avoiding damaging your computer, ensure that the Tron-light cable is not pinched before snapping the rear I/O
cover into place.
2. Replace the three screws (M2x3) that secure the rear I/O cover to the palm-rest and keyboard assembly.
3. Connect the Tron-light cable to the connector (LEDON1) on the system board.
4. Replace the two screws (M2.5x5) that secure the rear I/O cover to the palm-rest and keyboard assembly.
Next steps
1. Install the base cover.
2. Follow the procedure in
After working inside your computer.
