Dell Alienware m18 R2 - Page 72

Steps

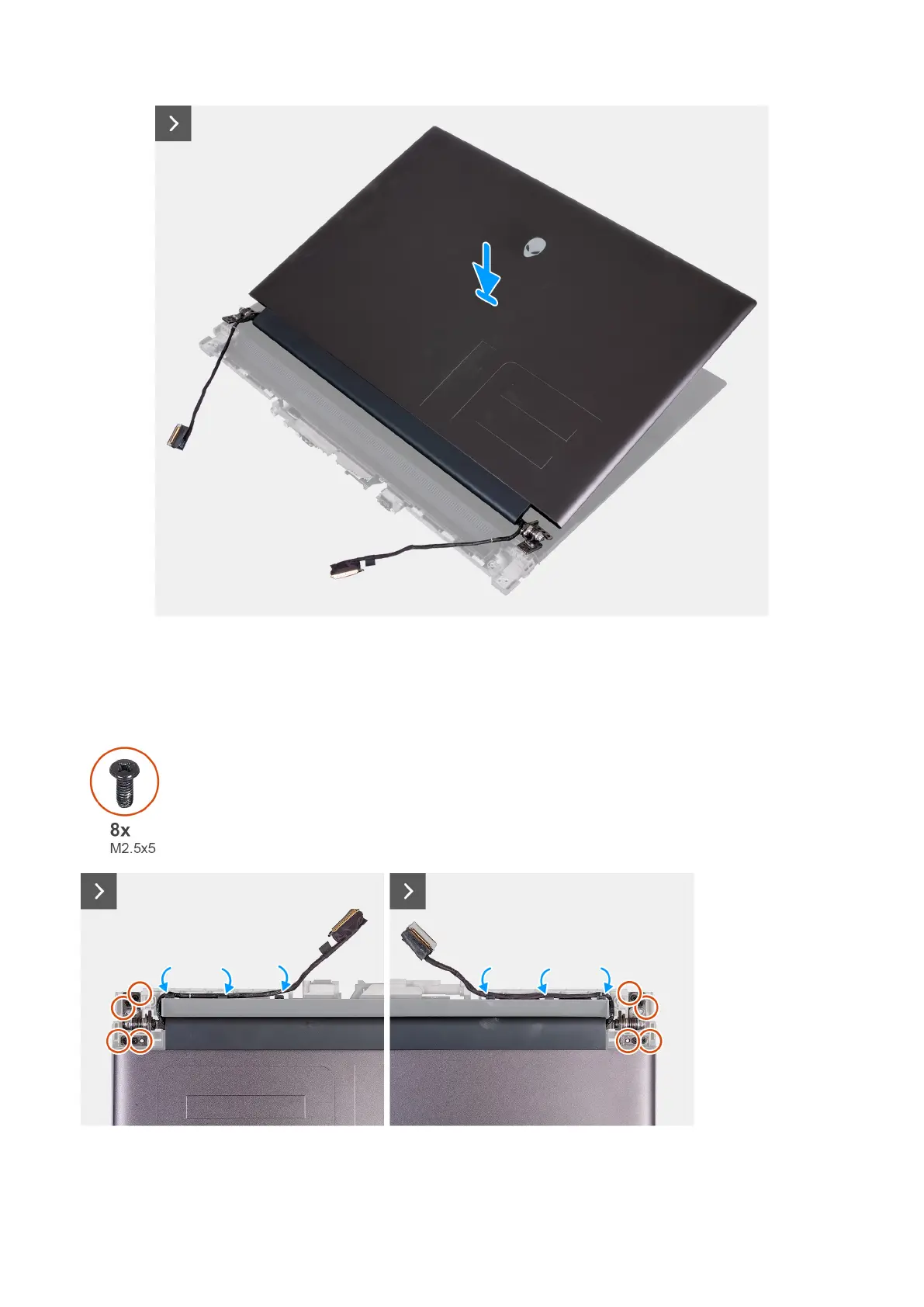

1. Place the display assembly on the palm-rest and keyboard assembly.
2. Route the display cable and camera cable on the routing guides on the display assembly.
3. Align the screw holes on the display assembly to the palm-rest and keyboard assembly.
4. Replace the eight screws (M2.5x5) that secure the display assembly to the palm-rest and keyboard assembly.
72
