Dell EMC PowerStore 500T - Install an Access Module

NOTE: The Access Module comes completely out of the chassis. In addition to holding the latches, be prepared to
support the Access Module to avoid dropping it.
A
B
1
1
2
2

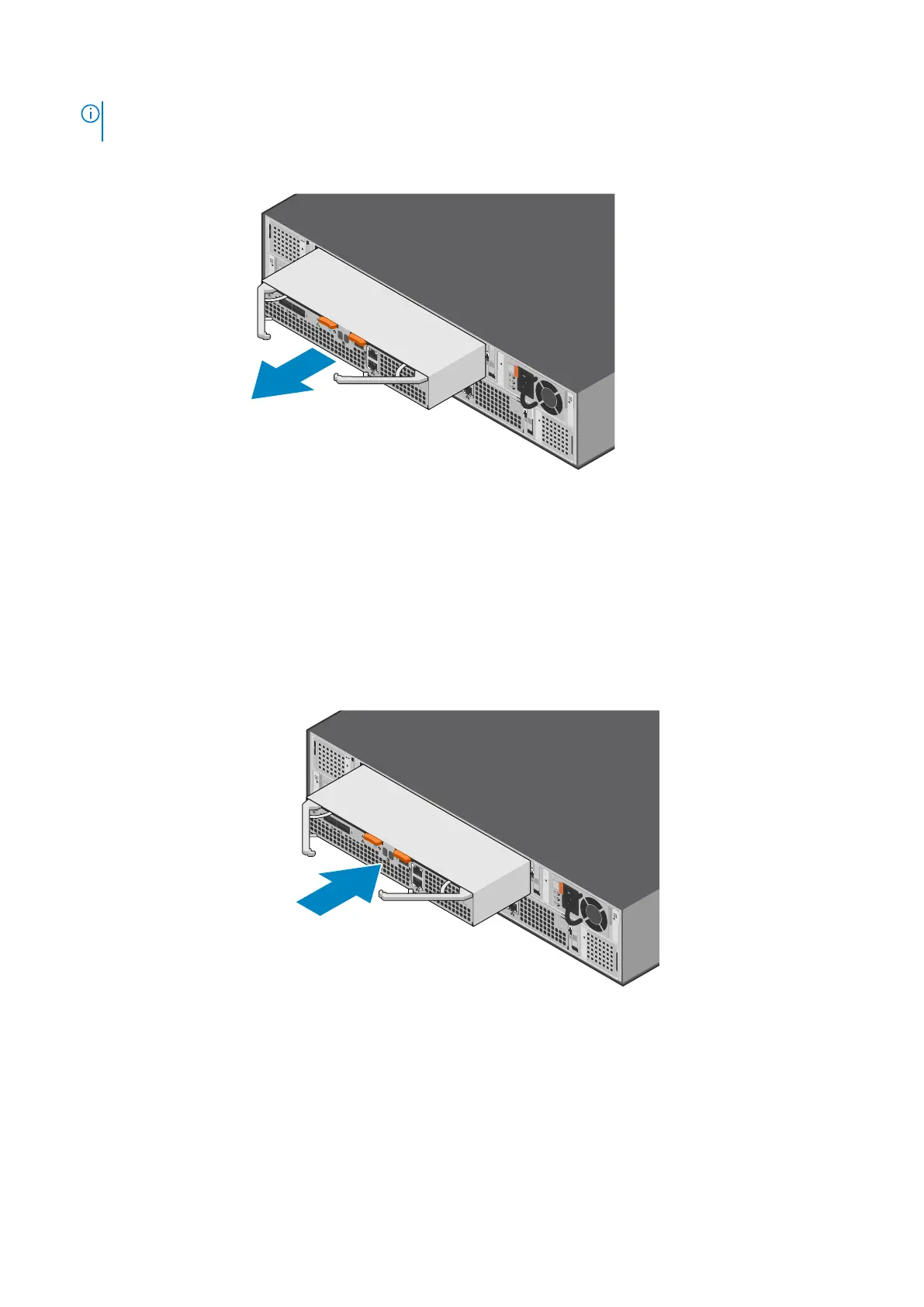

Figure 120. Removing the Access Module
Install an Access Module
Steps
1. Align the Access Module with the empty slot and carefully push it into the slot.
A
B
1
1
2
2
Figure 121. Installing the Access Module
2. Press in on the Access Module latches to lock them into place.
NVMe expansion enclosure service procedures
