5. Before removing the node, ensure that the wire bail is properly secured to the power supply cable of the other node to
prevent accidental loss of power and cache.
6. Use the release handle to pull the node outward enough to grasp the sides with both hands. Then, with both hands
supporting the node, pull the node fully out of the enclosure.

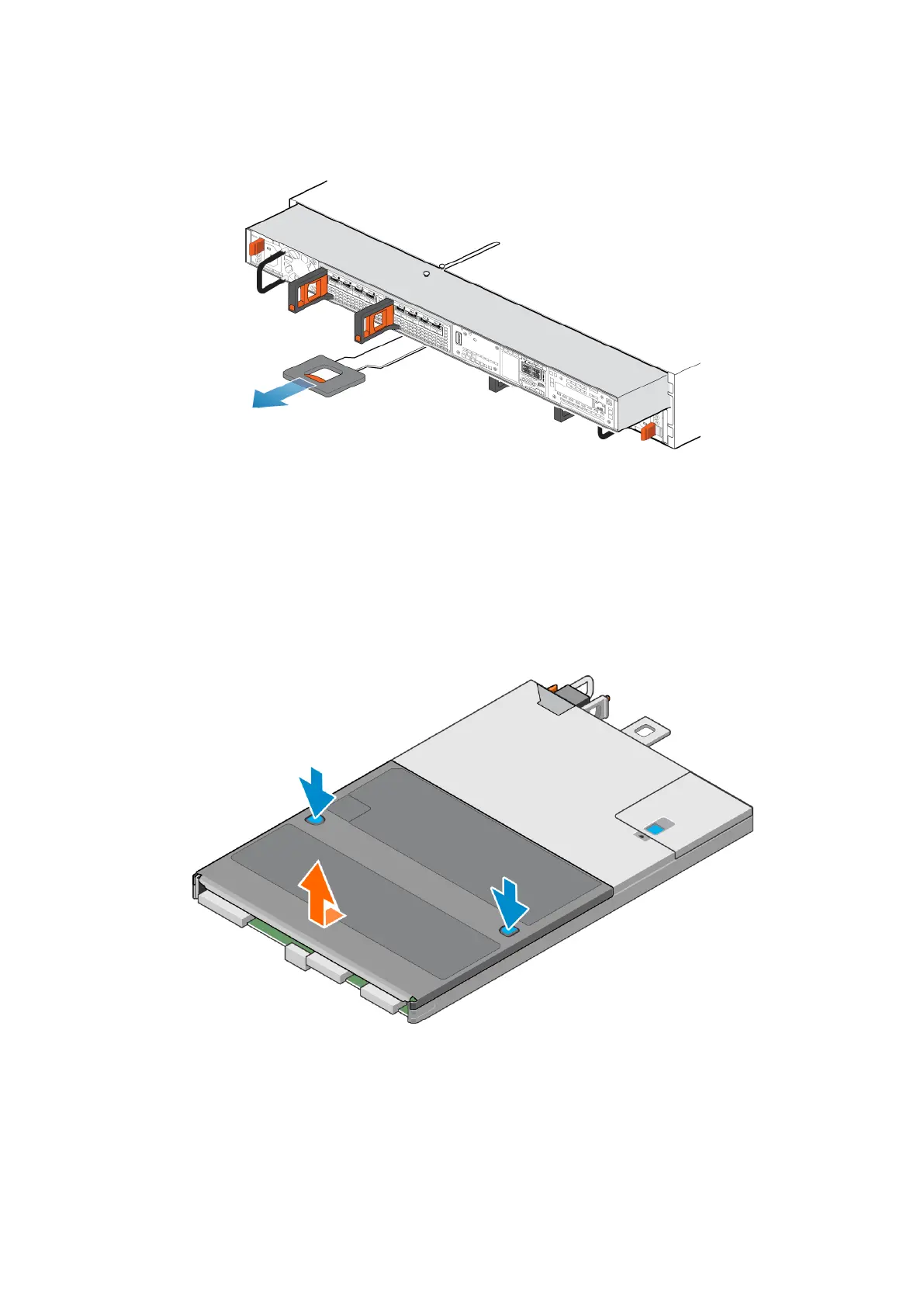

Figure 79. Removing the node
7. Place the node on a clean, flat, static-free work surface.
Remove the top cover from the node
Steps
1. While pushing down the two blue release buttons, slide the top cover towards the rear of the system, until it stops.
2. Lift the top cover upward, and remove it from the node.
Figure 80. Removing the top cover
Base enclosure service procedures
71
