Dell Force10 S50N Series User Manual

22 | Installing the Switch
www.dell.com | support.dell.com

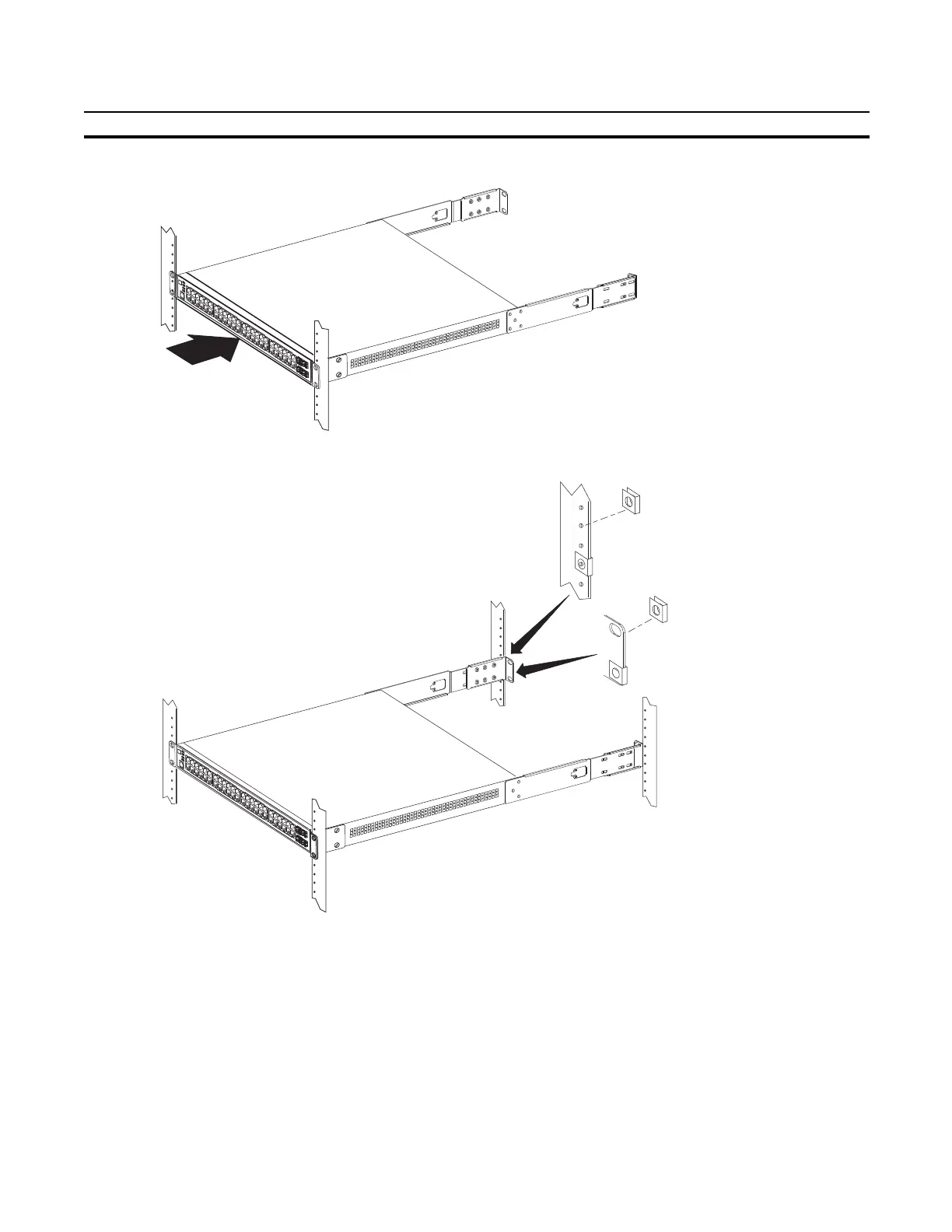

3 Insert the chassis into the rear of the rack. Position and secure the chassis with two screws into each front bracket
flange and into the rack post.
4 Position the cage nuts over the holes on each bracket flange and each rack post.
Step Task
fn00147a_s50V(4post)
fn00147d_s50
V

Dell Force10 S50N Series Specifications

General

Rack Units	1U
Jumbo Frames	Up to 9216 bytes
Product Type	Switch
Form Factor	Fixed
Power Supply	Dual redundant power supplies
VLAN Support	Yes
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Model	Dell Force10 S50N Series
