System Overview | 9
2
System Overview
The S50V and S50N models of the Dell Force10 S-Series are stackable, Layer 2 switch/Layer 3 routers
with 48 built-in 10/100/1000 Base-T ports, four SFP ports, and up to four optional 10-Gigabit (10GbE)
ports (XFP or CX4), in two expansion slots.
Figure 2-1
shows the front panel of the S50V. The S50N has
the same layout; just the catalog number differs. The S50N-DC (see
Figure 3-1 on page 15
) differs only in
that DC1 and DC2 status LEDs appear where the AC and DC status LEDs are on the S50V and S50N.

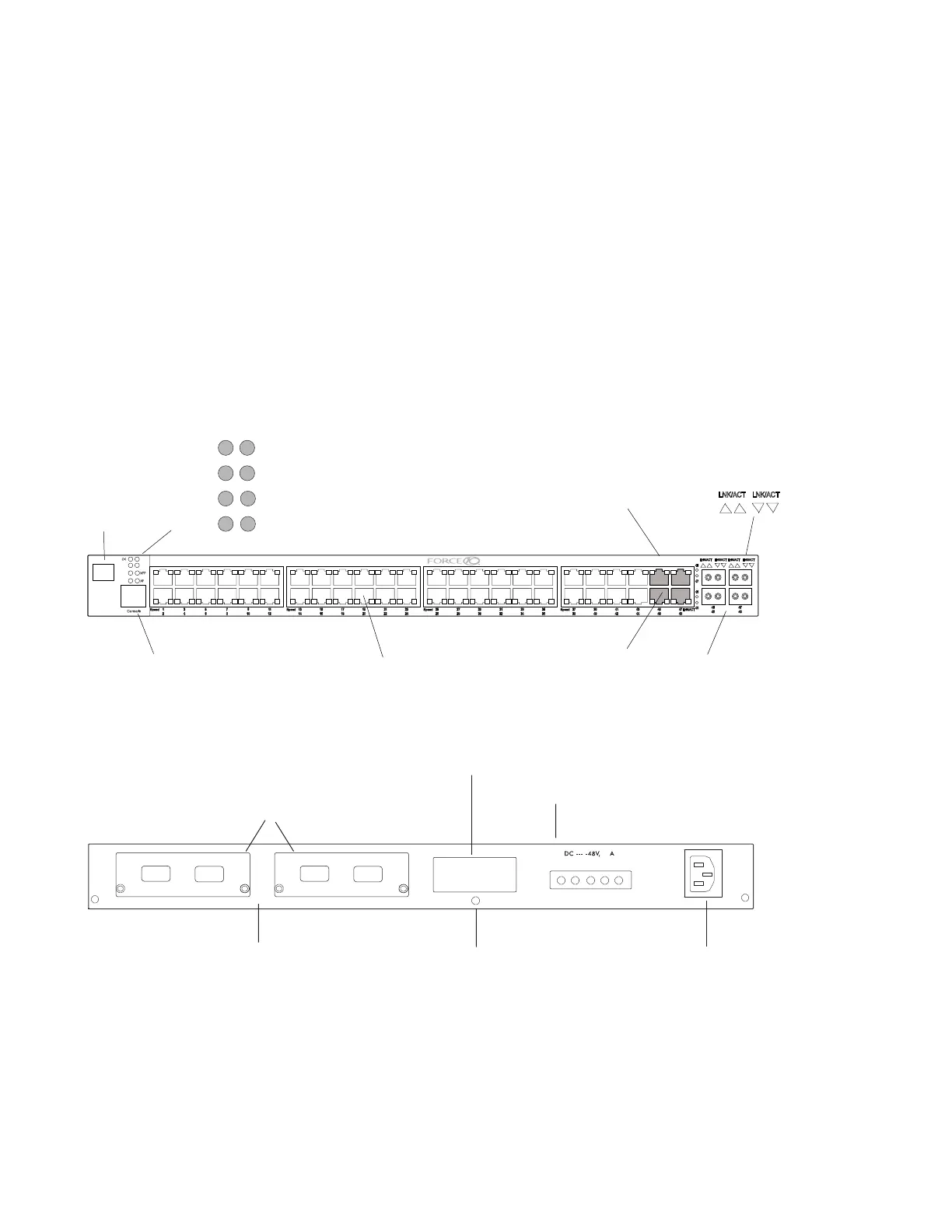

Figure 2-1. The S50V Front View
Figure 2-2. The S50V Rear View
The rear of the S50N differs only in that its DC terminal block has a different lug arrangement, as shown
in
Figure 3-1 on page 15
, while the S50N-DC replaces the AC receptacle with a second DC terminal
block.
fn00157s50V
OK
AC
XFP49
XFP51
Ethernet Ports (10/100/1000)
LEDs
Alarm
DC
XFP51
XFP52
SFP
Ports (45-48)
Status Panel
Shared
10/100/1000
Ports (45-48)
Stack ID
Indicator
LED
P52
51
XFP50
AC
XFP49
DC
Alarm
Stack ID
RJ-45 Console Port
Catalog # (S50-01-GE-48T-V)
S50-01-GE-48T-V
Link/Active
Indicator LEDs
(SFP Ports 45-48)
fn00158s50V
10-Gigabit Modules or Stacking Modules (optional).
Optical ports numbered from left to right.
DC Power
Ground Connector
AC Power Receptacle
11.5
FG
-48V
RTN
-48V
Current
Sharing
Label (Part #, Serial #, MAC Address, Bar Code, FRU #)
Ethernet Port Numbers
49 to 52, Right to Left
