Steps

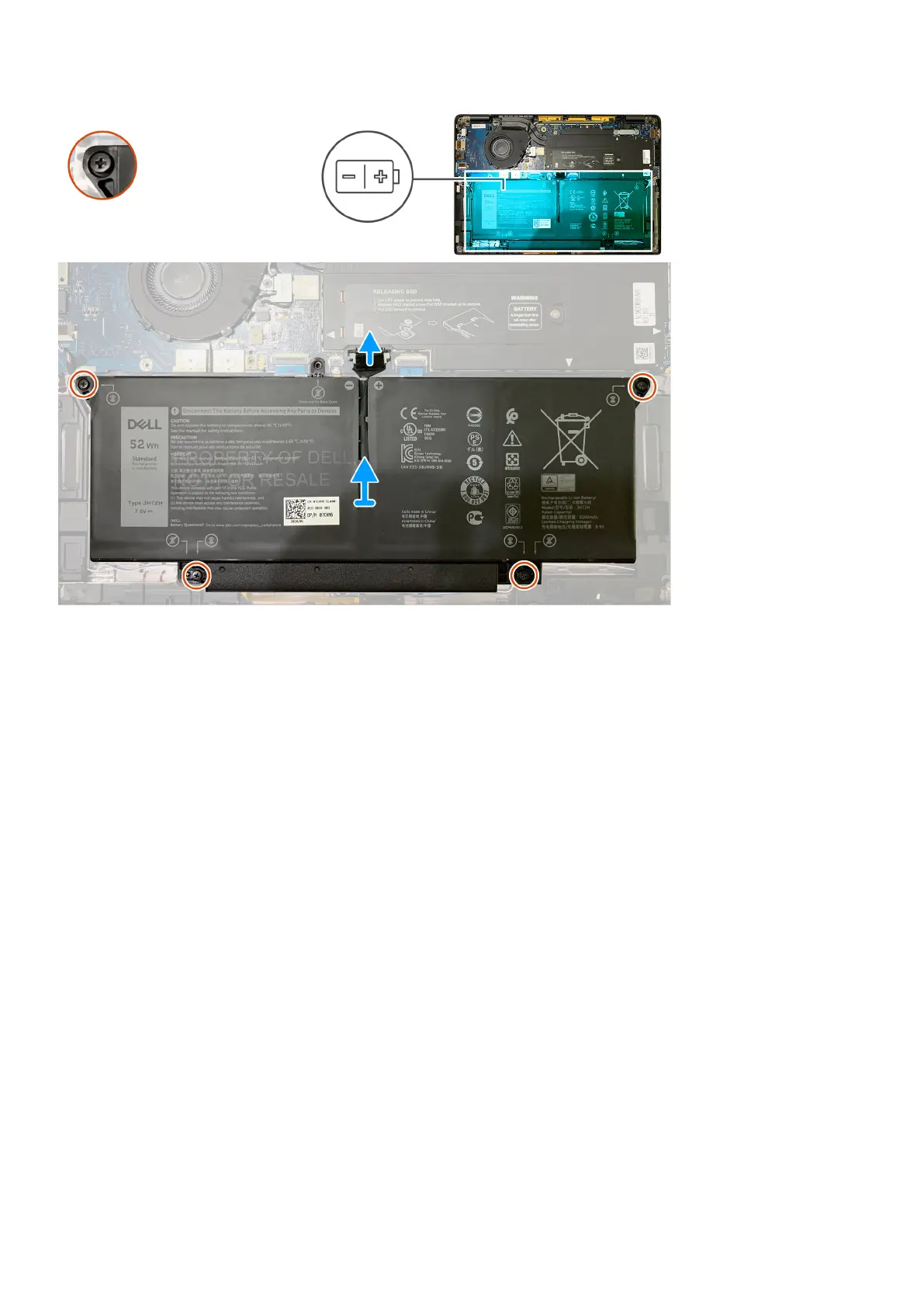

1. Using the pull tab, remove the battery cable from connector the system board.
2. Loosen the four captive screws that secure the base cover to the palmrest assembly.
3. Lift and remove the battery from the system unit.
Installing the battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the battery and provide a visual representation of the installation procedure.
Removing and installing components
15
