Dell Latitude 7310 Service Manual

Smart card reader
Removing the smart card reader
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. Base cover
b. Battery
c. Speakers
3. Loosen and remove the single M2x2 screw on the SSD thermal shield and remove the system board shield.
About this task

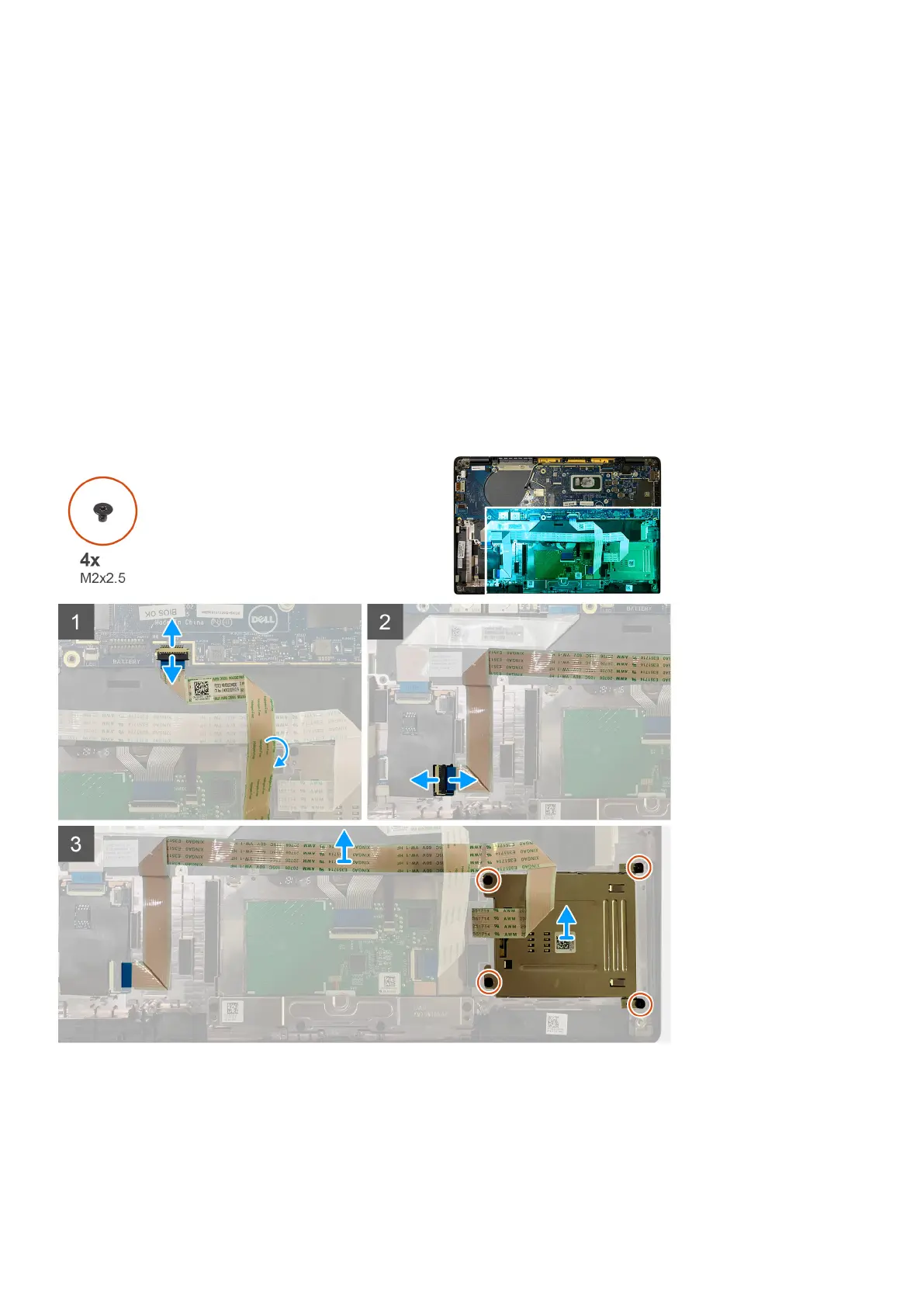

The following images indicate the location of the smart card reader and provide a visual representation of the removal procedure.
Steps
1. Disconnect the touchpad cable that is routed over the smart card cable from the system board.
2. Disconnect the smart card reader cable from the USH board.
3. Peel off the smart card reader cable from the palmrest assembly.
4. Remove the four M2x2.5 screws and remove the smart card reader from the palmrest assembly.
Removing and installing components
35

Dell Latitude 7310 Specifications

General

Graphics	Intel UHD Graphics
Operating System	Windows 10 Pro
Wireless	Intel Wi-Fi 6 AX201, Bluetooth 5.1
Security	Fingerprint Reader, Smart Card Reader, TPM 2.0
Processor	10th Generation Intel Core i5/i7
Display	13.3-inch FHD (1920 x 1080)
Memory	Up to 32GB DDR4
Storage	Up to 1TB PCIe NVMe SSD
Weight	2.7 lbs (1.22 kg)
Ports	1 x microSD card reader, 1 x Universal Audio Jack
Battery	4-Cell 60 WHr ExpressCharge Capable Battery
