Steps

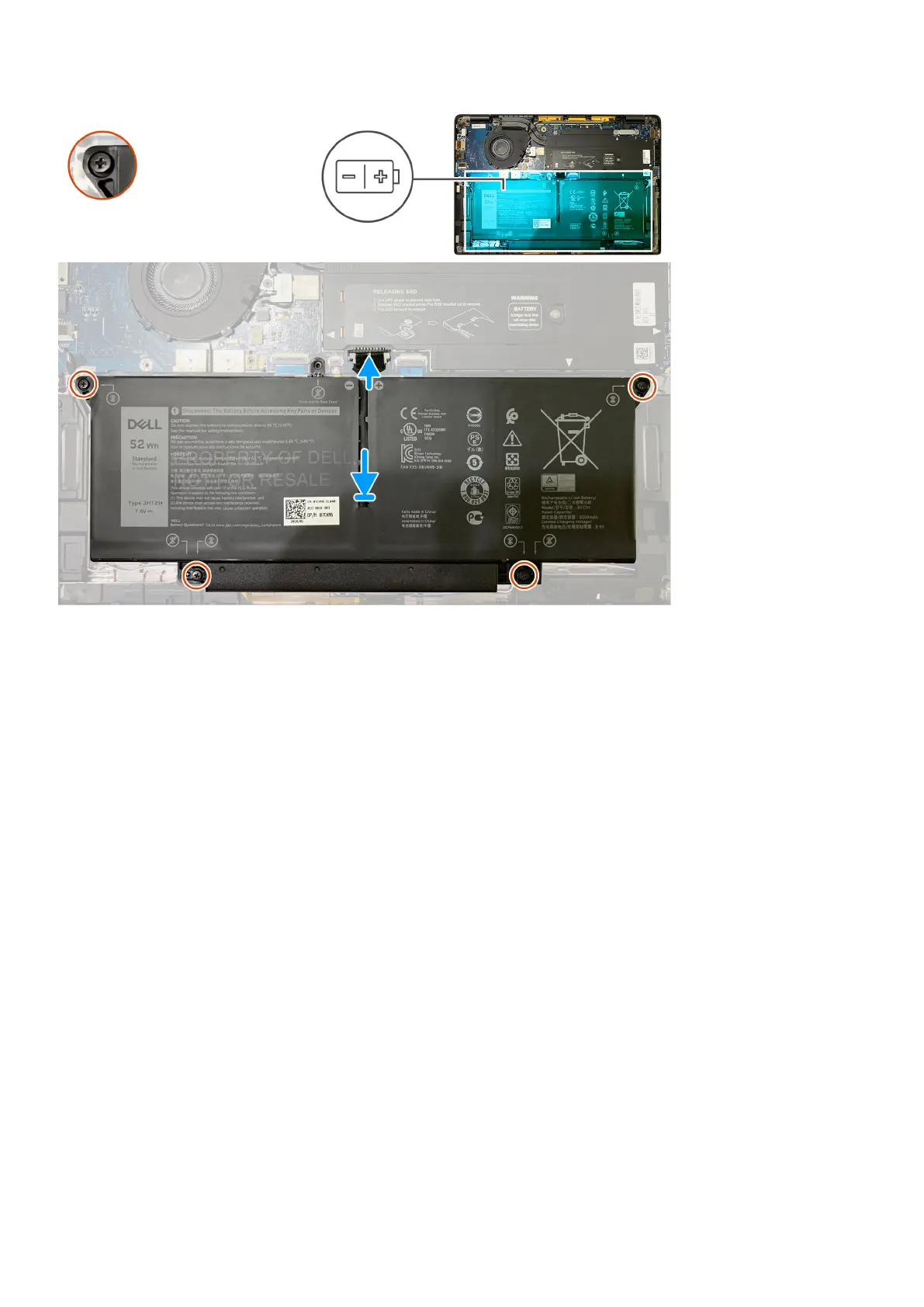

1. Align the screw holes on the battery with the screw holes on the palmrest assembly, and then snap the battery into place.
2. Tighten the four captive screws that secure the battery to the palmrest assembly.
3. Replace the battery cable to connector on the system board.
Next steps
1. Install the:
a. Base cover.
2. Follow the procedure in After working inside your computer.
Solid-state drive
Removing the solid state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. Base cover
3. Disconnect the battery cable
About this task
The following images indicate the location of the solid state drive and provide a visual representation of the removal procedure.
16
Removing and installing components
