Dell Latitude 7310 Service Manual

Display assembly
Removing the display assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. Base cover
About this task

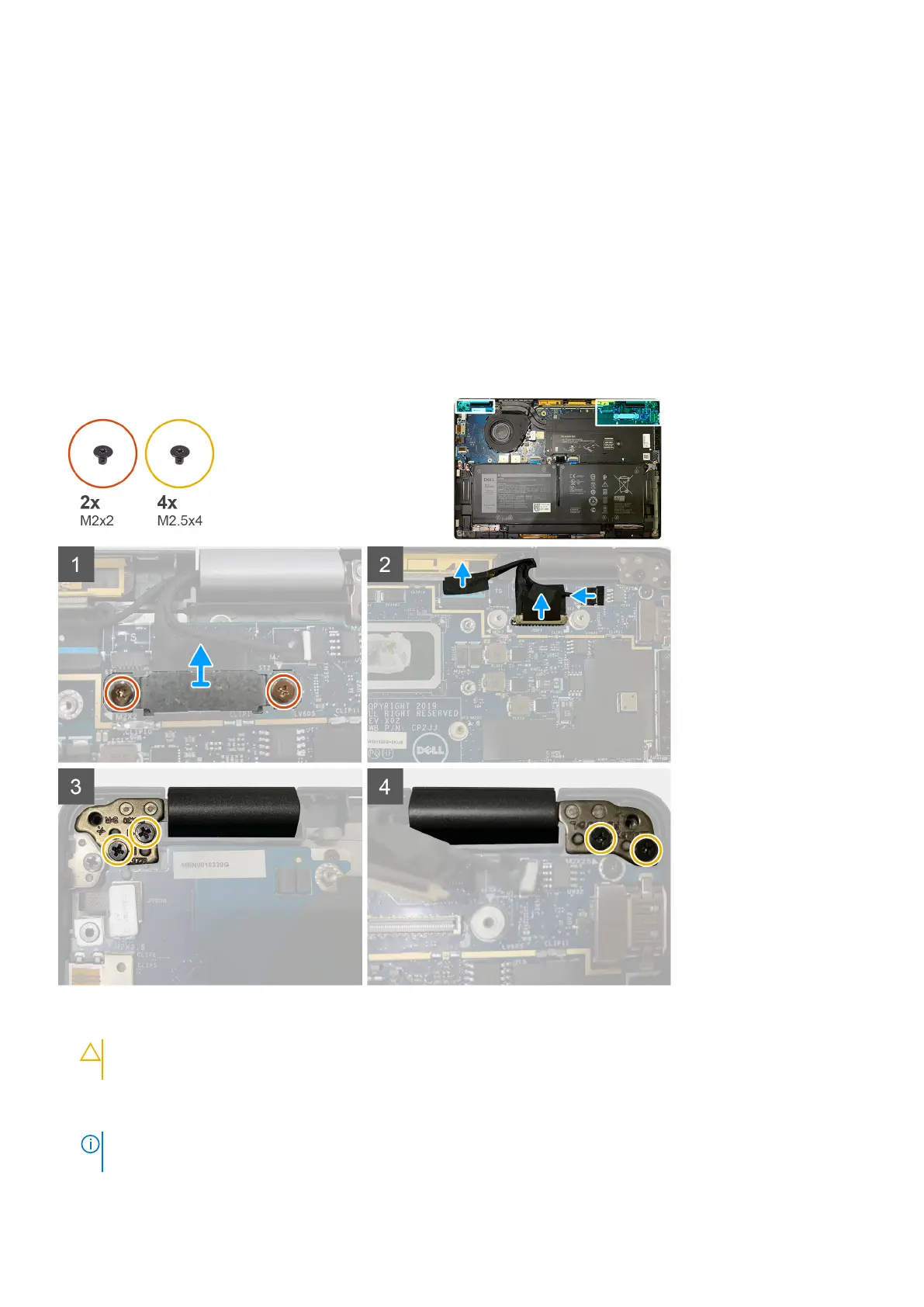

The following images indicate the location of the display assembly and provide a visual representation of the removal procedure.
Steps
1.
CAUTION:
If the system unit is shipped with WWAN card, remove the WWAN bracket and disconnect the antennae
cables.
Remove the two M2x2 screws that secures the eDP bracket to the system board and remove it from the system board.
2. Disconnect the eDP cable, touch cable and camera cable from the system board.
NOTE:
The display cable and sensor daughter board cable are bundled together with tape. Disconnect the sensor
daughter board cable first followed by the display cable. To disconnect the display cable, pull the pull tab vertically.
Removing and installing components 31

Dell Latitude 7310 Specifications

General

Graphics	Intel UHD Graphics
Operating System	Windows 10 Pro
Wireless	Intel Wi-Fi 6 AX201, Bluetooth 5.1
Security	Fingerprint Reader, Smart Card Reader, TPM 2.0
Processor	10th Generation Intel Core i5/i7
Display	13.3-inch FHD (1920 x 1080)
Memory	Up to 32GB DDR4
Storage	Up to 1TB PCIe NVMe SSD
Weight	2.7 lbs (1.22 kg)
Ports	1 x microSD card reader, 1 x Universal Audio Jack
Battery	4-Cell 60 WHr ExpressCharge Capable Battery
