Dell Latitude 7310 Service Manual

Steps

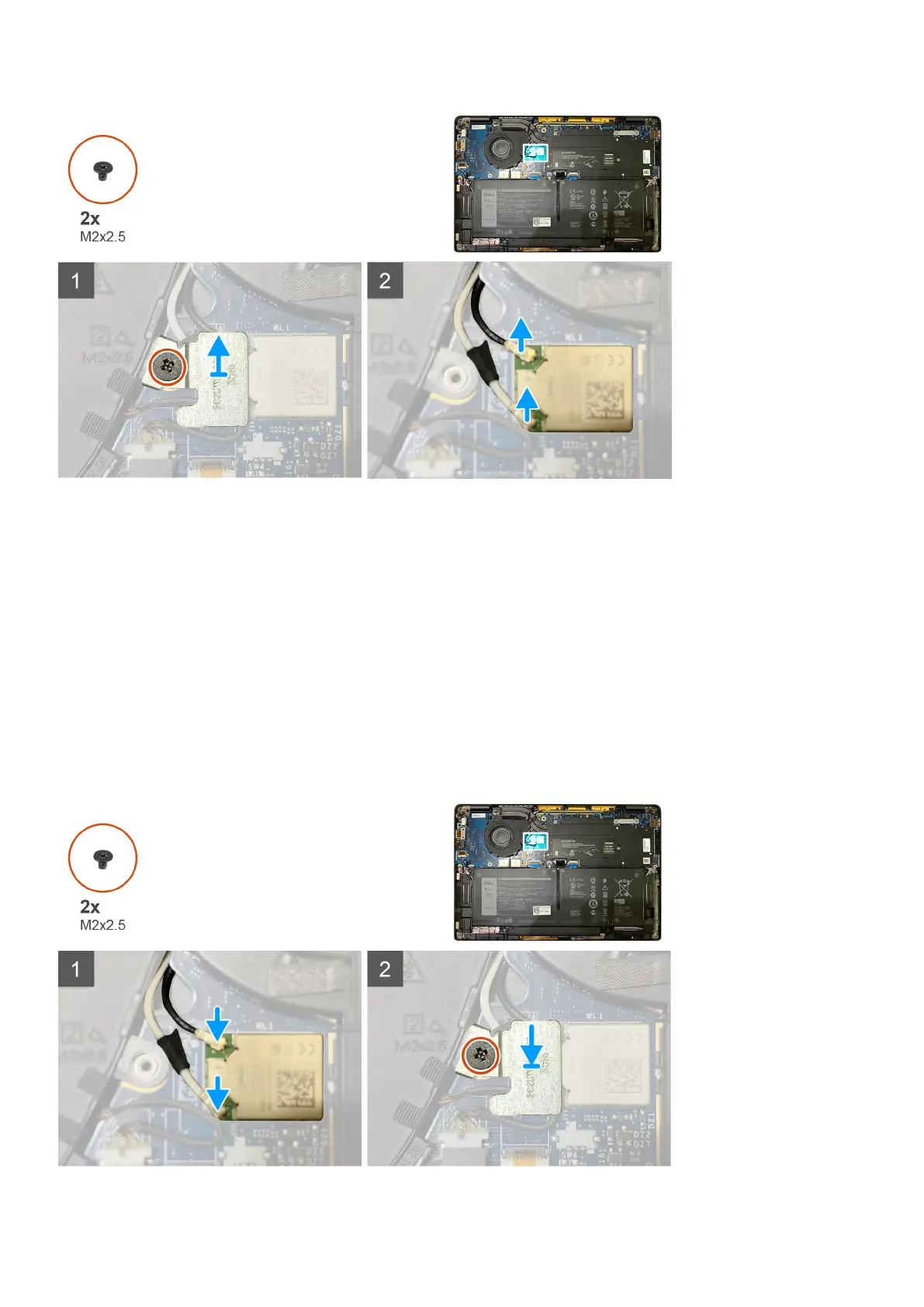

1. Remove the two M2x2.5 screws that secure the WLAN antenna bracket to the system board.
2. Lift and remove the WLAN antenna bracket from over the antennae connectors.
3. Disconnect the antenna cable from WLAN module on the system board.
Installing the WLAN antenna bracket
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the WLAN antenna bracket and provide a visual representation of the installation procedure.
Removing and installing components
25

Dell Latitude 7310 Specifications

General

Graphics	Intel UHD Graphics
Operating System	Windows 10 Pro
Wireless	Intel Wi-Fi 6 AX201, Bluetooth 5.1
Security	Fingerprint Reader, Smart Card Reader, TPM 2.0
Processor	10th Generation Intel Core i5/i7
Display	13.3-inch FHD (1920 x 1080)
Memory	Up to 32GB DDR4
Storage	Up to 1TB PCIe NVMe SSD
Weight	2.7 lbs (1.22 kg)
Ports	1 x microSD card reader, 1 x Universal Audio Jack
Battery	4-Cell 60 WHr ExpressCharge Capable Battery
