Dell Latitude 7310 Service Manual

Removing and installing components
Recommended tools
The procedures in this document require the following tools:
• Phillips #0 screwdriver
• Phillips #1 screwdriver
• Plastic scribe: Recommended for field technicians.
NOTE: The #0 screw driver is for screws 0-1 and the #1 screw driver is for screws 2-4.
Screw list
NOTE:
When removing screws from a component, it is recommended to note the screw type, the quantity of screws,
and then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type
is restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surface when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.

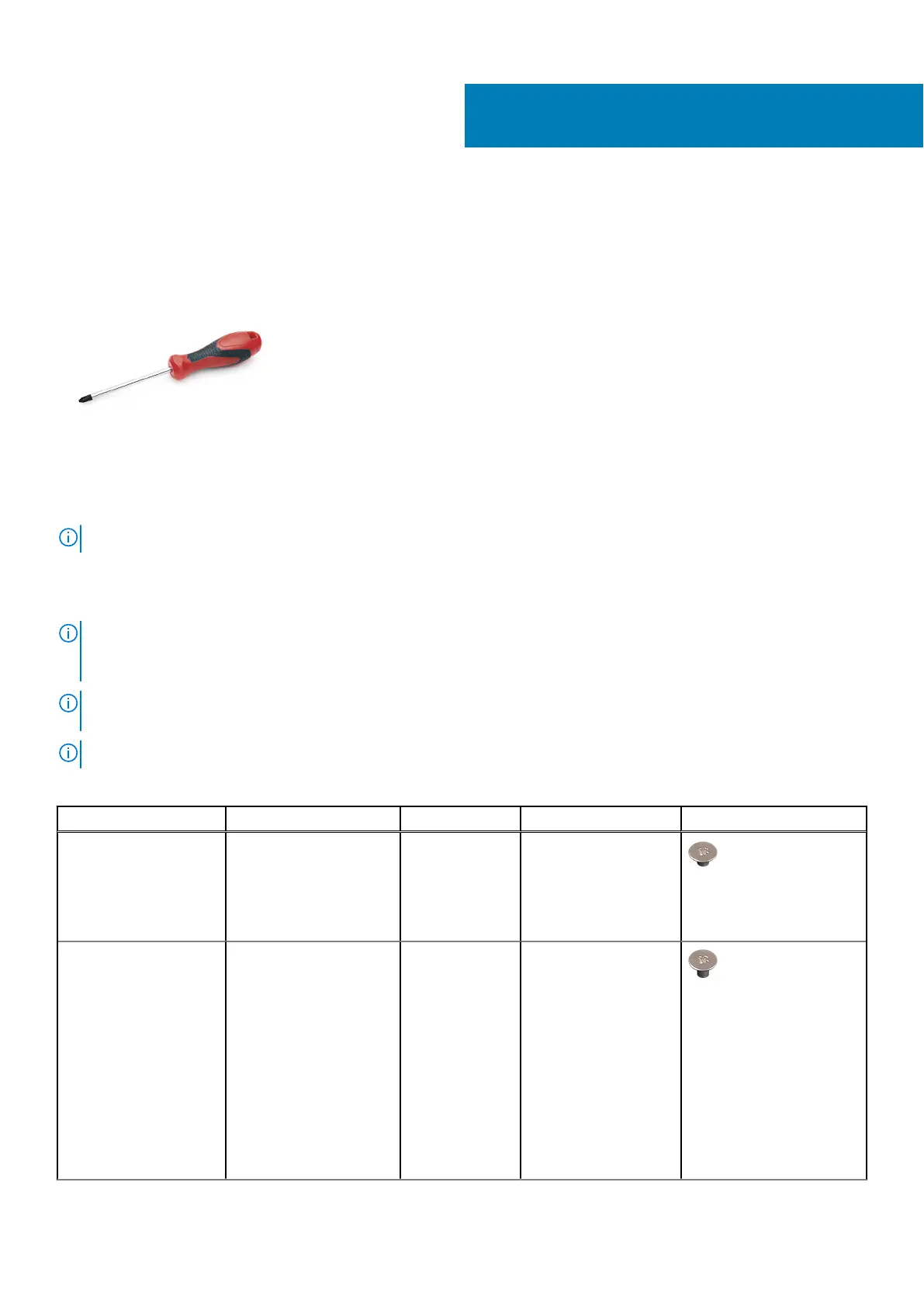

Table 1. Screw list
Component Secured to Screw type Quantity Screw image
1. SSD thermal plate
2. SSD
3. eDP bracket
4. Keyboard
1. System board
2. System board
3. System board
4. Keyboard support
bracket
M2x2
1. 1
2. 1
3. 1
4. 2
1. WLAN antenna
bracket
2. Fan cage
3. Heatsink assembly
4. Wireless antenna
module
5. Fingerprint bracket
6. I/O board (with FPR)
7. I/O board (without
FPR)
8. Power button
9. Smart card reader
1. System board
2. Palmrest assembly
3. System board
4. System board
5. Palmrest assembly
6. Palmrest assembly
7. Palmrest assembly
8. Palmrest assembly
9. Palmrest assembly
10. Palmrest assembly
11. Palmrest assembly
M2x2.5
1. 1
2. 1
3. 4
4. 2
5. 1
6. 1
7. 2
8. 2
9. 4
10. 1
11. 2
2
8 Removing and installing components

Dell Latitude 7310 Specifications

General

Graphics	Intel UHD Graphics
Operating System	Windows 10 Pro
Wireless	Intel Wi-Fi 6 AX201, Bluetooth 5.1
Security	Fingerprint Reader, Smart Card Reader, TPM 2.0
Processor	10th Generation Intel Core i5/i7
Display	13.3-inch FHD (1920 x 1080)
Memory	Up to 32GB DDR4
Storage	Up to 1TB PCIe NVMe SSD
Weight	2.7 lbs (1.22 kg)
Ports	1 x microSD card reader, 1 x Universal Audio Jack
Battery	4-Cell 60 WHr ExpressCharge Capable Battery
