3. Remove the two M2.5x4 from both left and right hinges.
4. Fold the LCD at an convenient angle to detach it from the palmrest assembly.
Installing the display assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

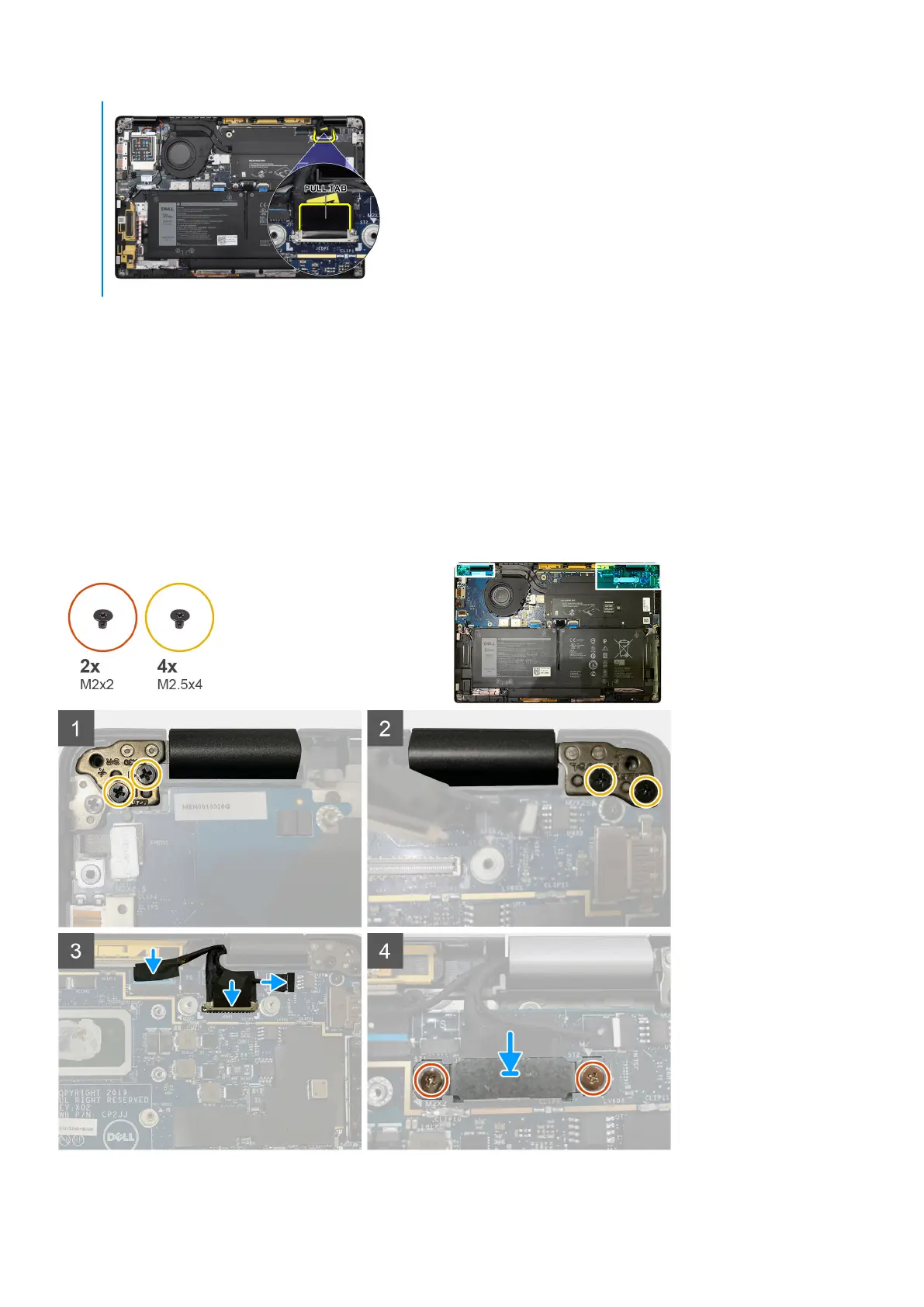

The following images indicate the location of the display assembly and provide a visual representation of the installation procedure.
32
Removing and installing components
