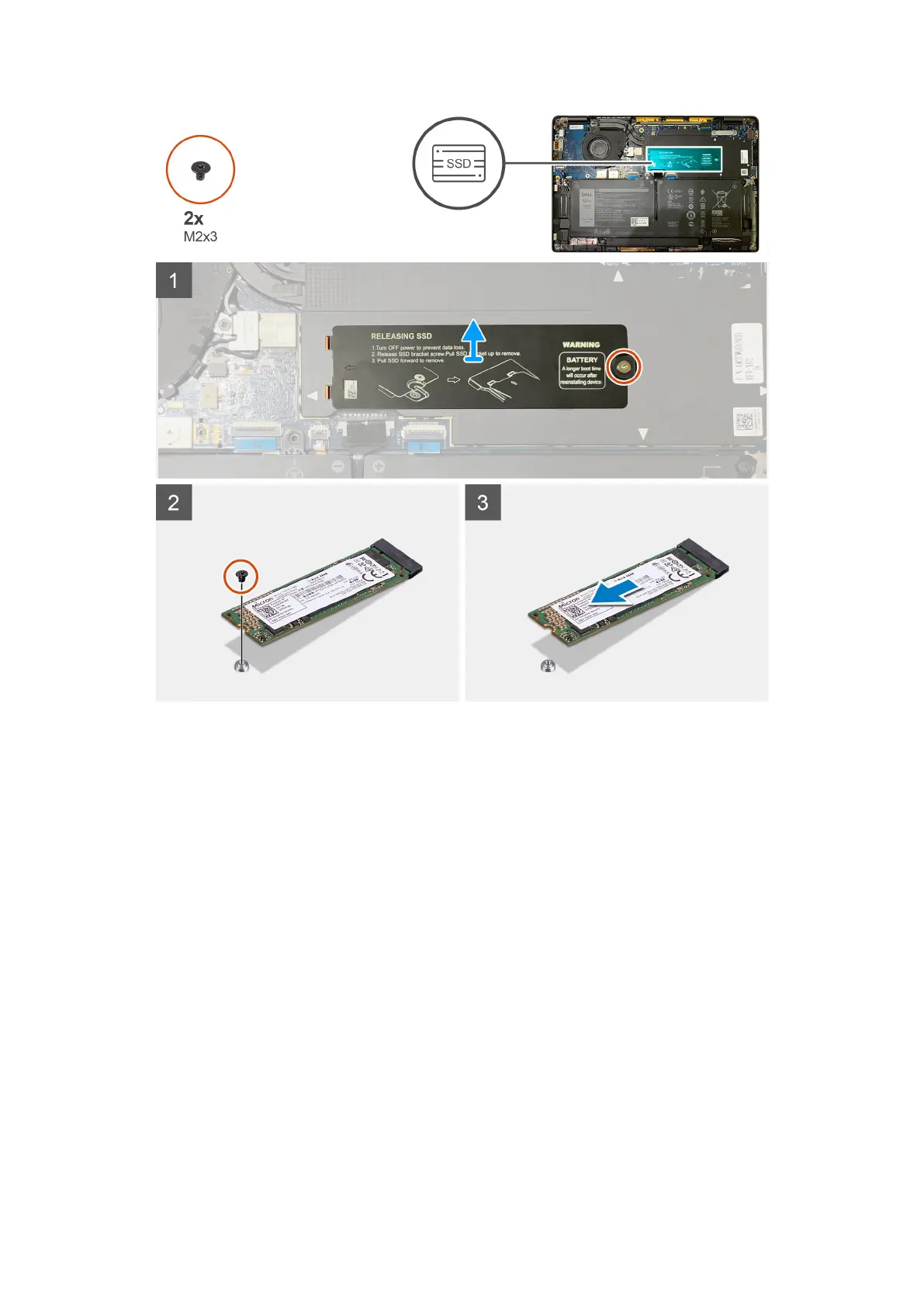

Figure 2. 2280 SSD
Steps
1. Remove the single M2x2 screw that secures the SSD thermal plate to the system board and lift to remove it from over the SSD.
2. Remove the single M2x2 screw that secures the SSD to the system board.
3. Slide the SSD out from the M.2 slot on the system board.
Installing the solid state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the solid state drive and provide a visual representation of the installation procedure.
18
Removing and installing components
