NOTE: System configurations ordered with finger print reader there are two screws securing the finger print reader
bracket to the palmrest assembly.
Next steps
1. Install the:
a. Battery
b. WLAN antennae bracket
c. WWAN card
d. SSD thermal shield
e. Base cover
2. Follow the procedure in After working inside your computer.
Power button with fingerprint reader
Removing the power button with fingerprint reader
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. Base cover
b. Battery
c. WWAN
d. SSD thermal shield
e. WLAN antennae bracket
f. I/O board
About this task

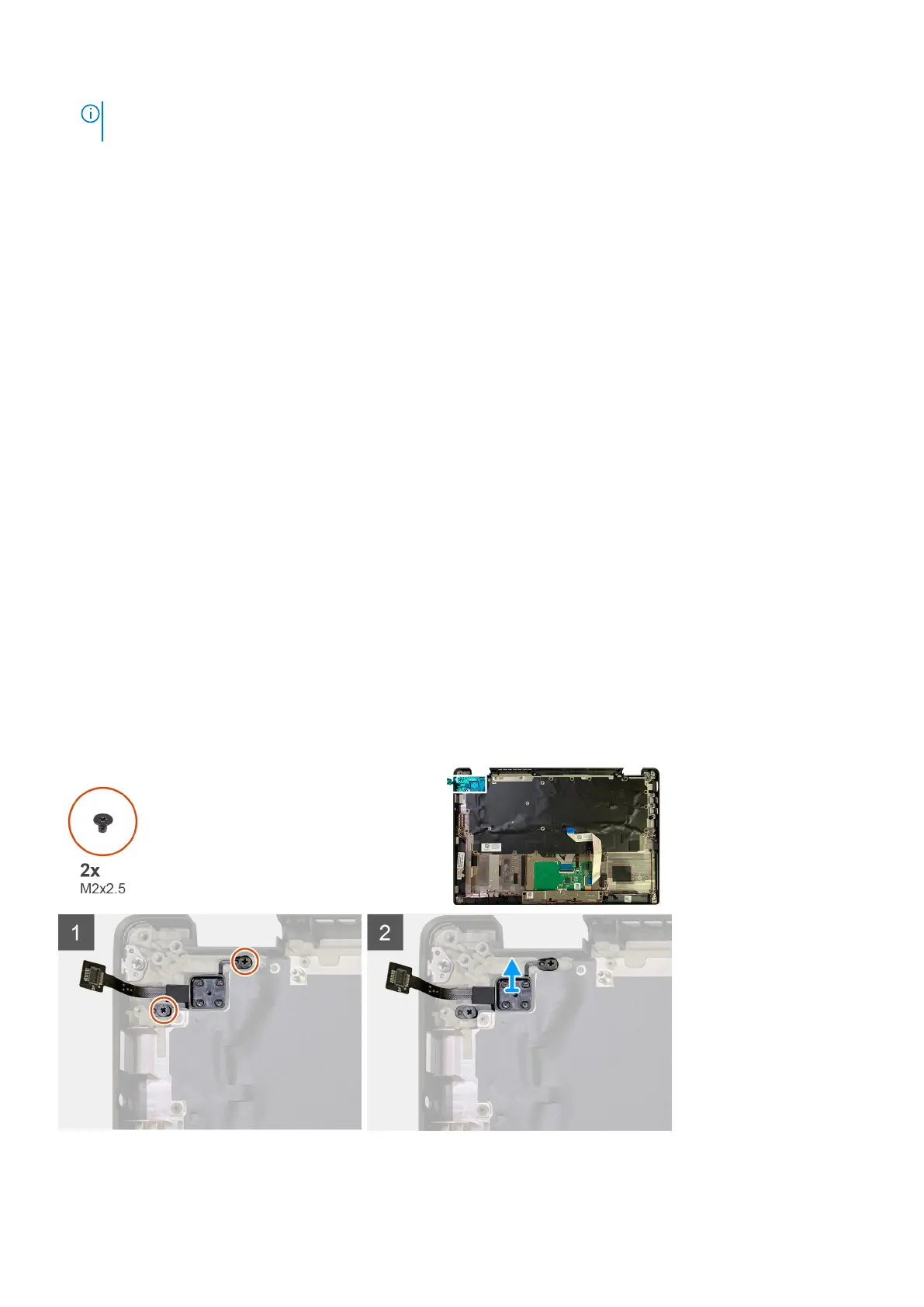

The following images indicate the location of the power button with fingerprint reader and provide a visual representation of the removal
procedure.
Removing and installing components
39
