Steps

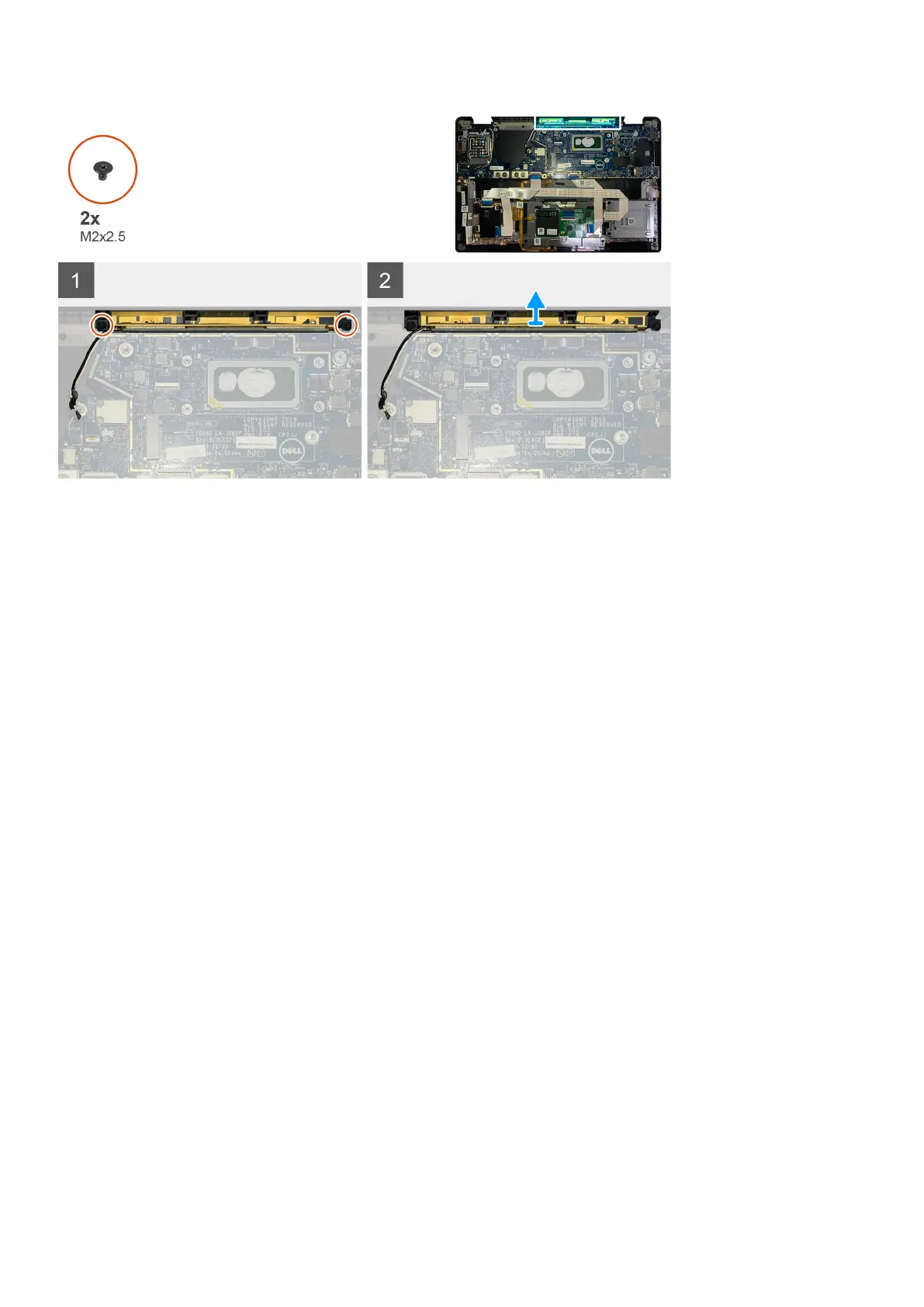

1. Disconnect and un-thread the WWAN antenna cables.
2. Remove the two M2x2.5 screws securing the WLAN antenna to the palmrest assembly.
3. Remove the palmrest antenna from the palmrest assembly.
Installing the Palmrest antenna (optional)
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the optional Palmrest antenna and provide a visual representation of the installation
procedure.
Removing and installing components
27
