Dell Latitude 7310 Service Manual

System board
Removing the system board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. Base cover
b. Battery
c. Solid state drive
d. WLAN antennae bracket
e. Heatsink assembly
NOTE: System board can be disassembled without having to remove the heatsink assembly.
About this task

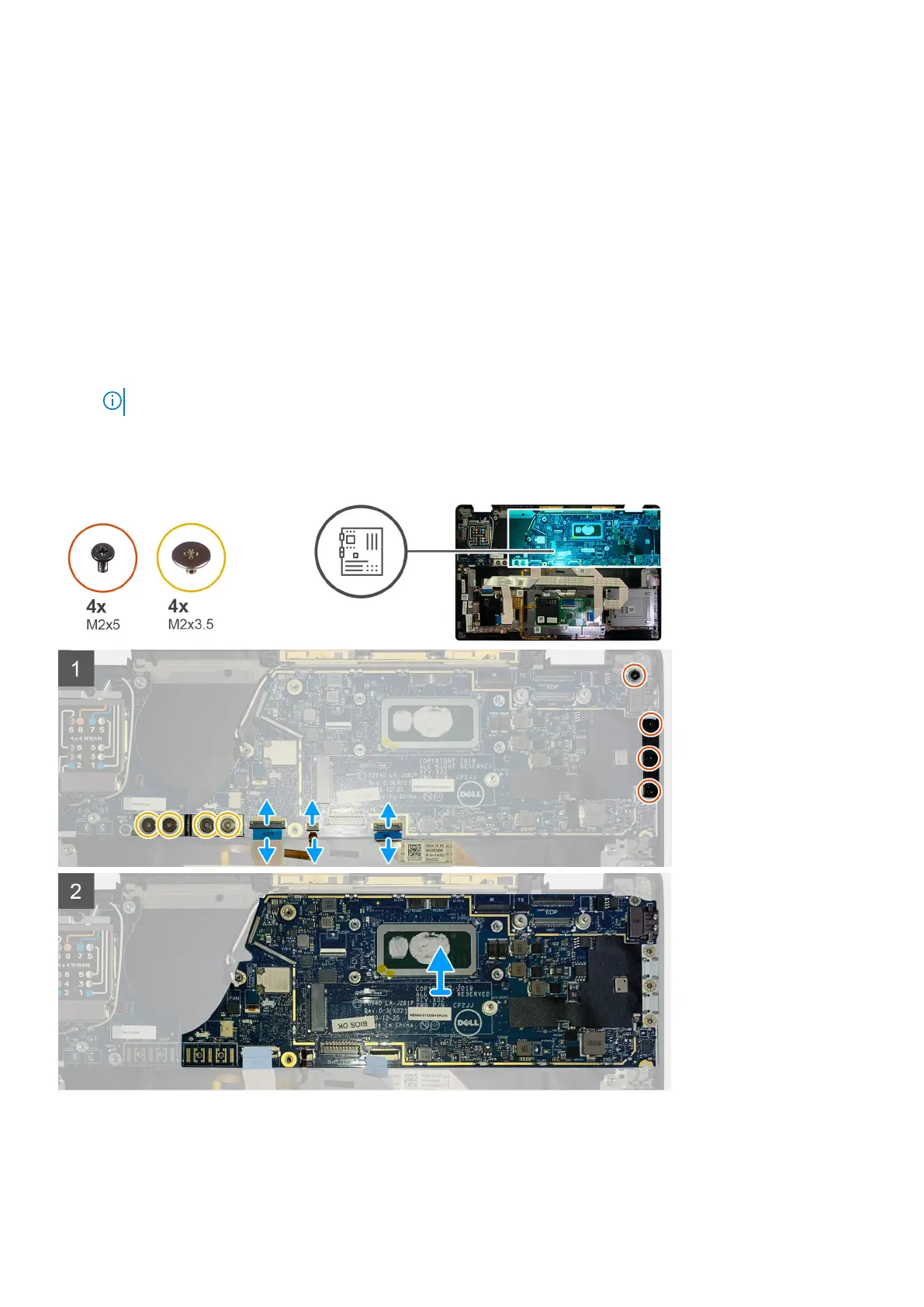

The following images indicate the location of the system board and provide a visual representation of the removal procedure.
Steps
1. Remove the four M2x3.5 screws securing the F-beam FPC and remove it from the I/O board.
2. Un-thread the wireless antennae cables.
Removing and installing components
41

Dell Latitude 7310 Specifications

General

Graphics	Intel UHD Graphics
Operating System	Windows 10 Pro
Wireless	Intel Wi-Fi 6 AX201, Bluetooth 5.1
Security	Fingerprint Reader, Smart Card Reader, TPM 2.0
Processor	10th Generation Intel Core i5/i7
Display	13.3-inch FHD (1920 x 1080)
Memory	Up to 32GB DDR4
Storage	Up to 1TB PCIe NVMe SSD
Weight	2.7 lbs (1.22 kg)
Ports	1 x microSD card reader, 1 x Universal Audio Jack
Battery	4-Cell 60 WHr ExpressCharge Capable Battery
