Dell Latitude E6430 - Installing the Expresscard Cage; Removing the Media Board

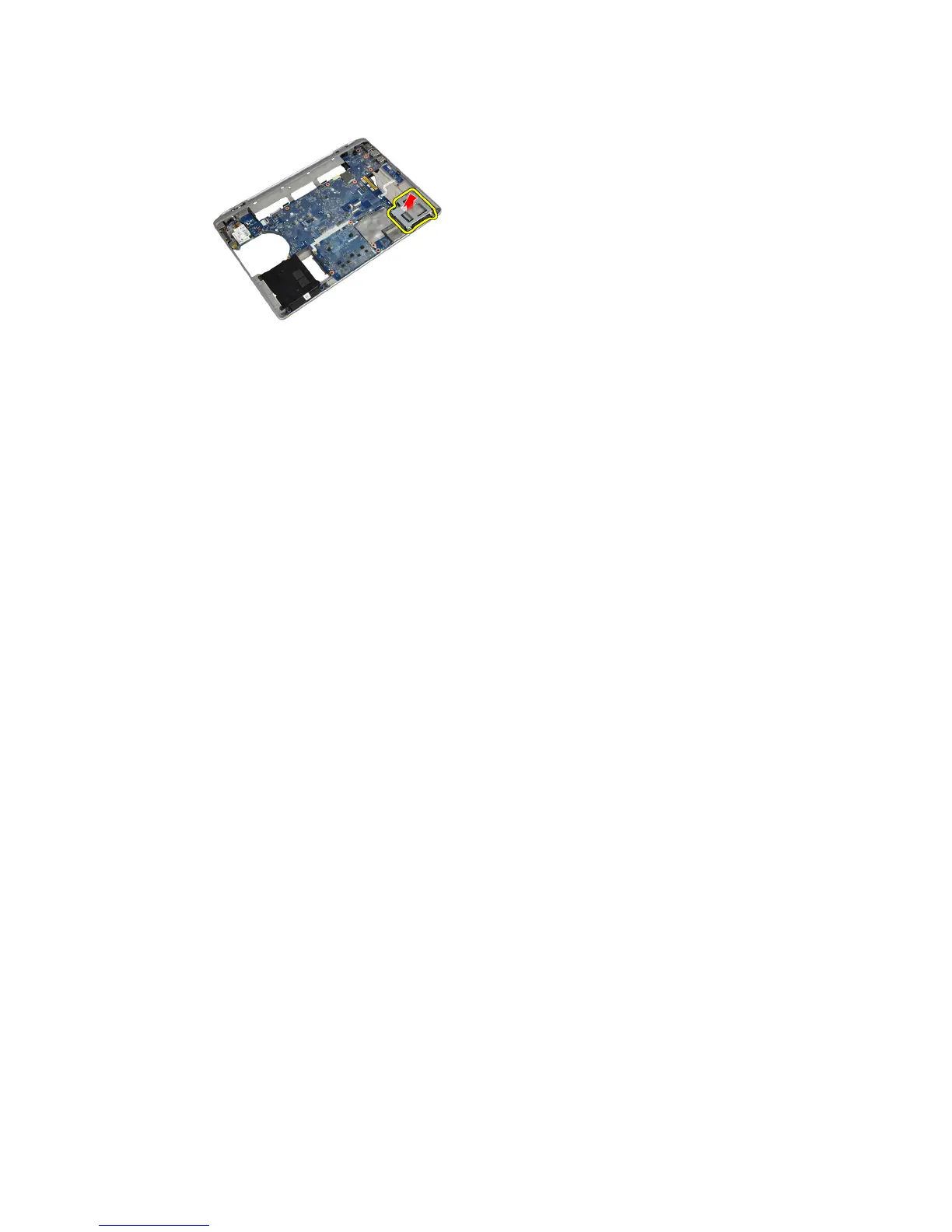

4. Remove the ExpressCard cage from the computer.
Installing the ExpressCard Cage
1. Place the ExpressCard cage into its compartment.
2. Tighten the screws to secure the ExpressCard cage to the computer.
3. Install:
a) palmrest
b) display assembly
c) keyboard
d) keyboard trim
e) bluetooth card
f) hard drive
g) base cover
h) battery
4. Follow the procedures in After Working Inside Your Computer .
Removing the Media Board
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) battery
b) base cover
c) hard drive
d) bluetooth card
e) keyboard trim
f) keyboard
g) display assembly
h) palmrest
30
