Dell Latitude E6430 - Removing the Modem Card

4. Install:
a) display panel
b) display bezel
c) display assembly
d) keyboard
e) keyboard trim
f) bluetooth module
g) hard drive
h) base cover
i) battery
5. Follow the procedures in After Working Inside Your Computer .
Removing the Modem Card
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) battery
b) base cover
c) keyboard trim
d) keyboard

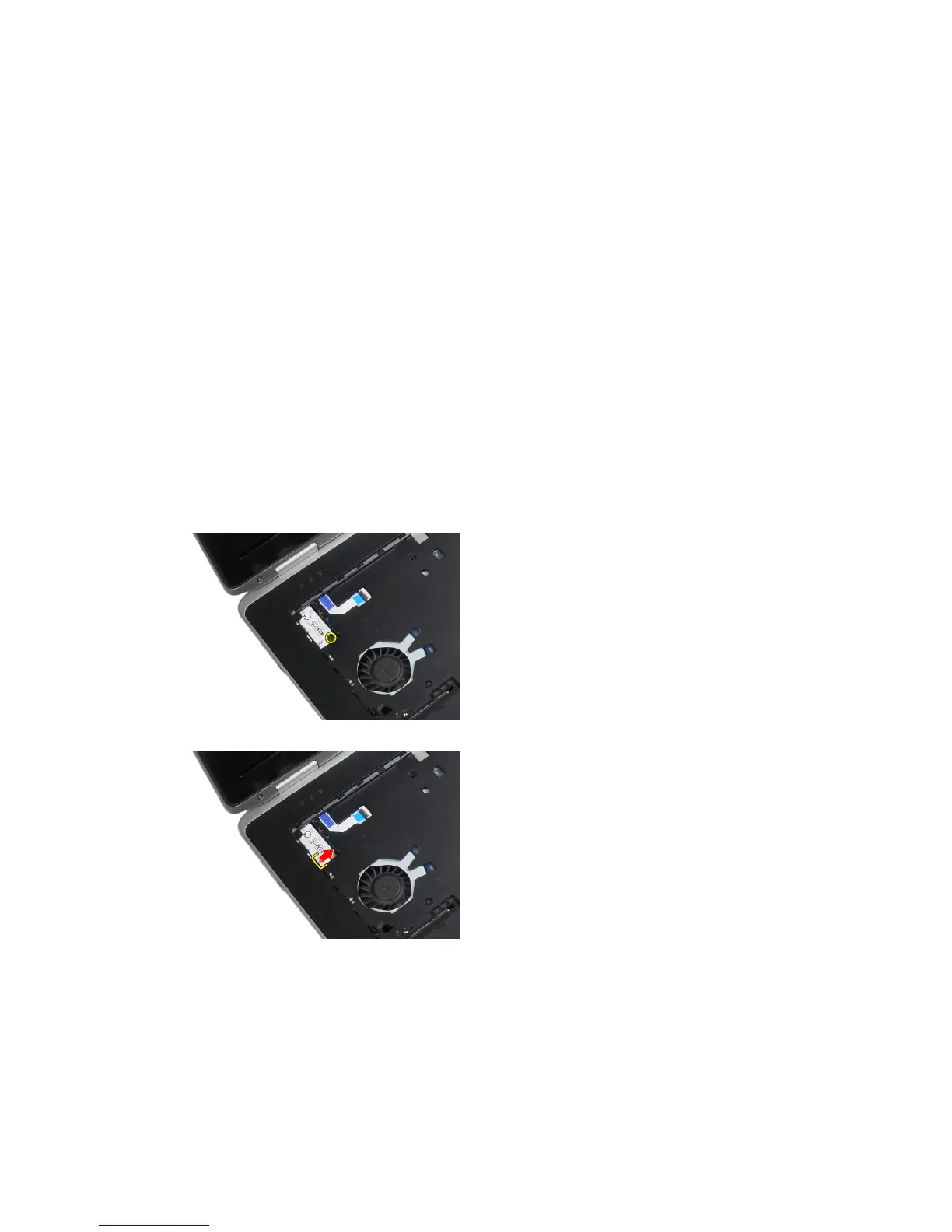

3. Remove the screw that secures the modem card to the computer.
4. Pull out the tab from underneath the palmrest assembly.
35
