Dell Latitude E6430 - Removing the Display Hinges

4. Install:
a) display assembly
b) keyboard
c) keyboard trim
d) bluetooth card
e) hard drive
f) base cover
g) battery
5. Follow the procedures in After Working Inside Your Computer .
Removing the Display Hinges
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) battery
b) base cover
c) hard drive
d) bluetooth card
e) keyboard trim
f) keyboard
g) display assembly
h) display bezel
i) display panel

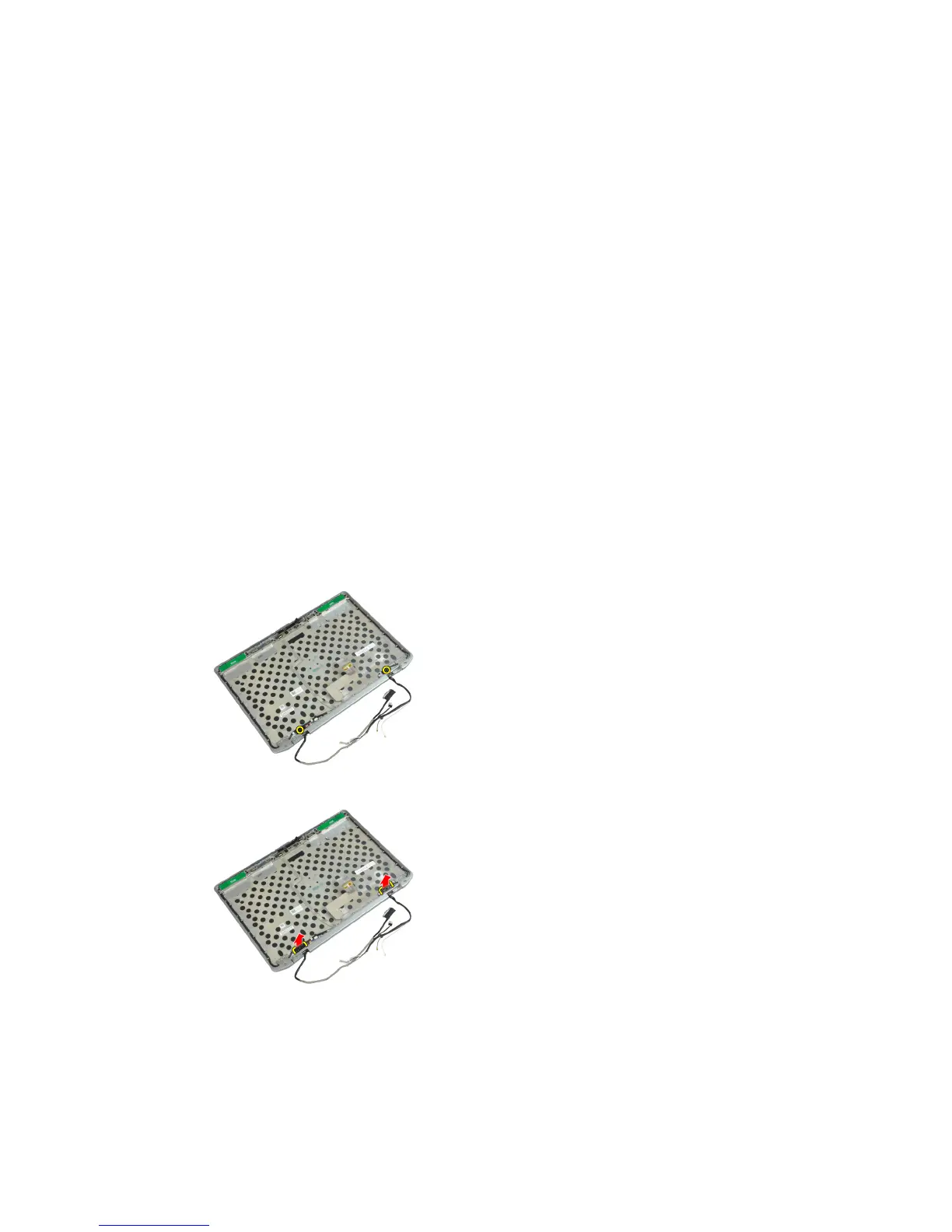

3. Remove the screws that secure the display hinge plates to the display assembly.
4. Remove the display hinge plates.
54
