Dell Latitude E6430 - Removing the Palmrest

Removing the Palmrest
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) battery
b) base cover
c) hard drive
d) bluetooth card
e) keyboard trim
f) keyboard

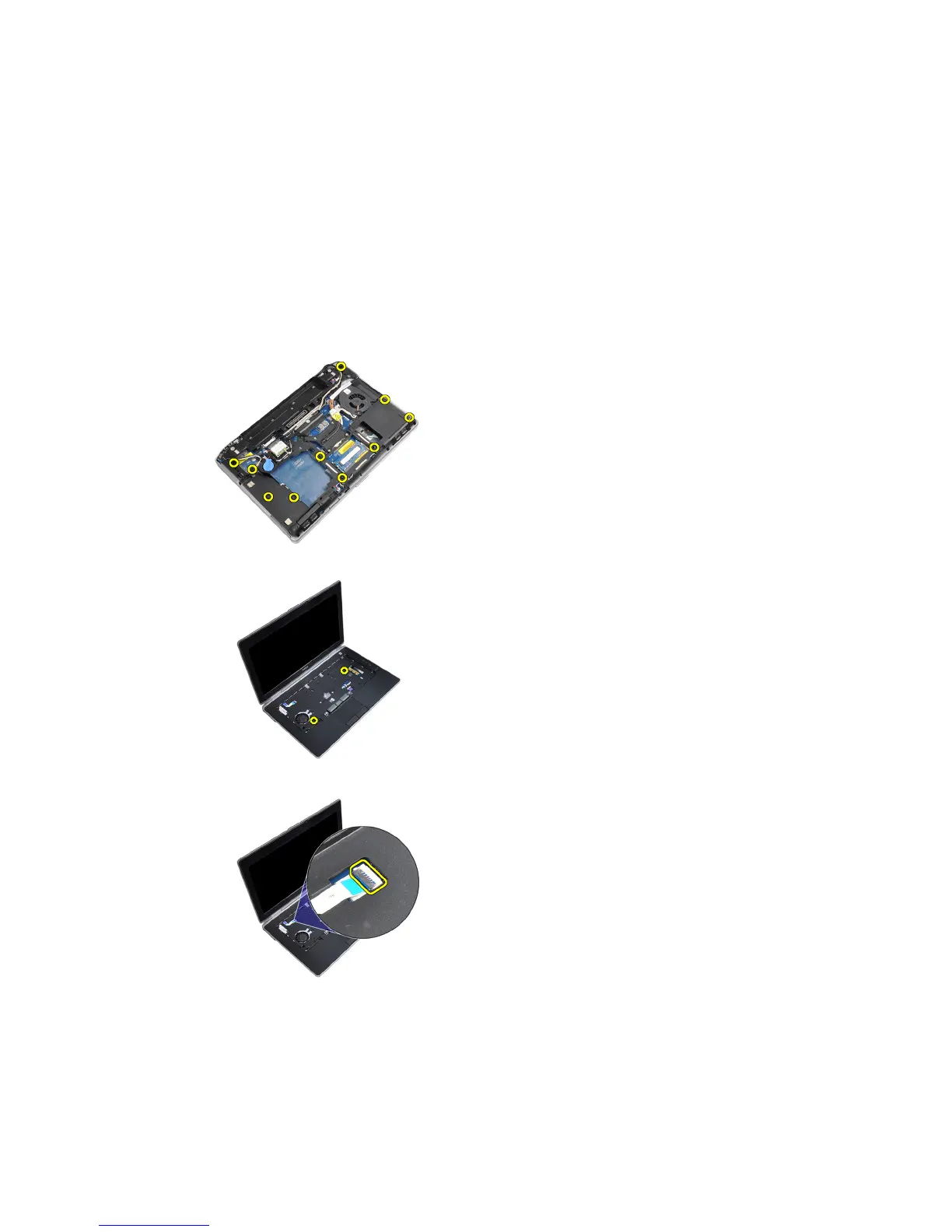

3. Remove the screws that secure the palmrest assembly to the base of the computer.
4. Flip the computer over and remove the screws that secure the palmrest assembly to the computer.
5. Disconnect the LED cable from the system board.
