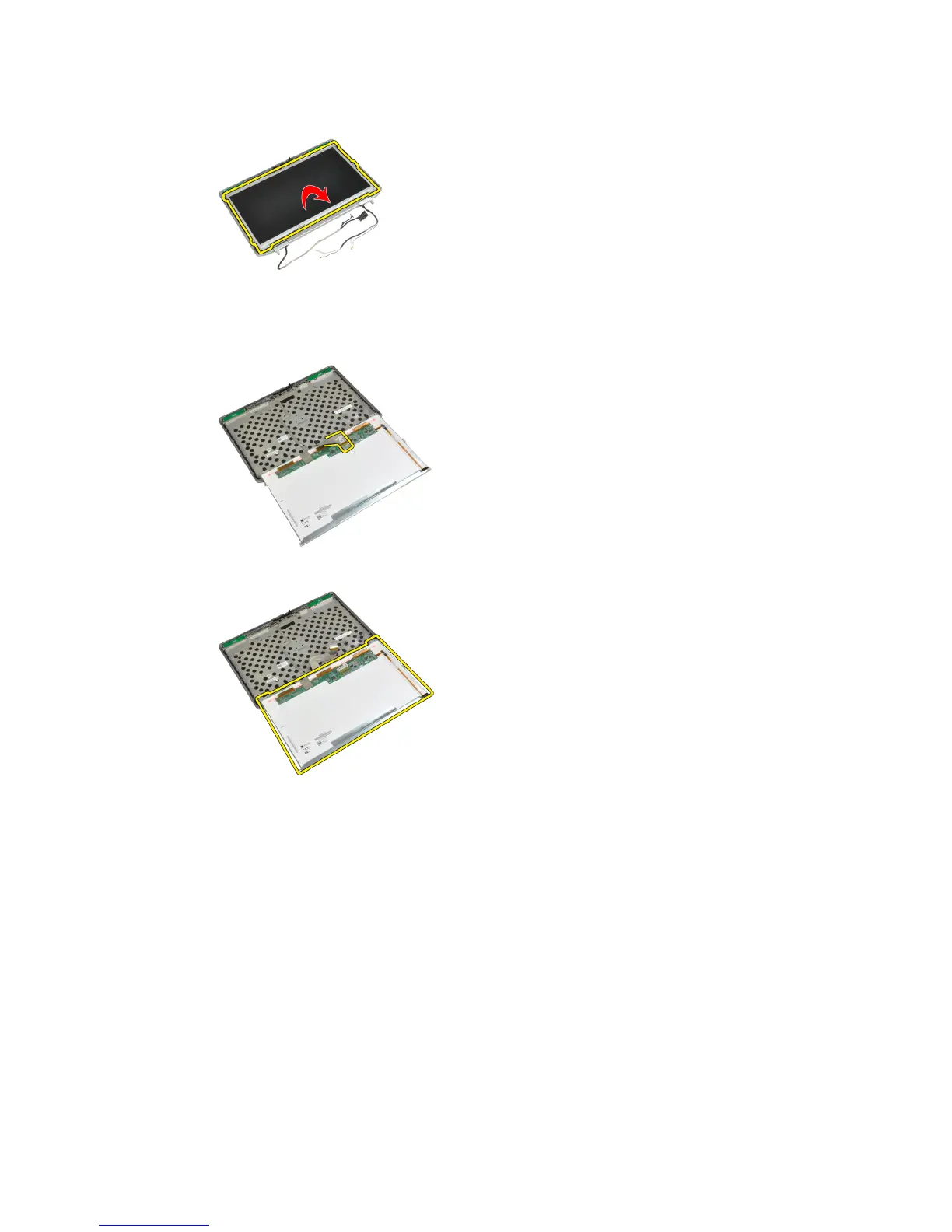

4. Flip the display panel over.
5. Peel off the LVDS cable connector tape and disconnect the LVDS cable from the display panel.
6. Remove the display panel from the display assembly.
Installing the Display Panel
1. Connect the LVDS cable and stick the LVDS cable connector tape.
2. Flip the display and place it in the display assembly.
3. Tighten the screws to secure the display panel to the display assembly.
4. Install:
a) display bezel
b) display assembly
c) battery
5. Follow the procedures in
After Working Inside Your Computer
.
52
