Dell Latitude E6430 - Page 48

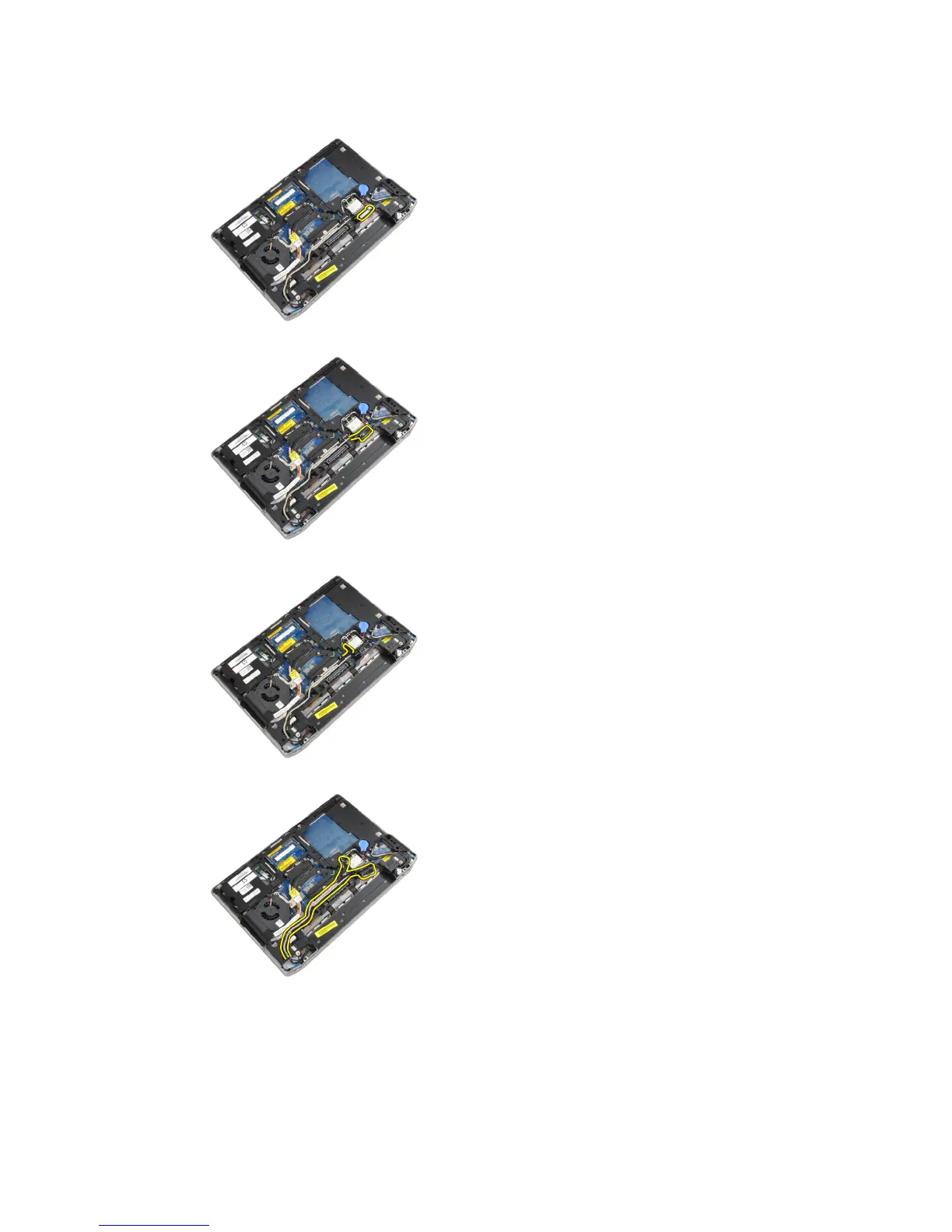

4. Remove the support bracket from the computer.
5. Pull upwards on the tab to disconnect the LVDS cable from the computer.
6. Disconnect the camera cable from the computer.
7. Remove the LVDS and camera cable from the routing channel.
48
